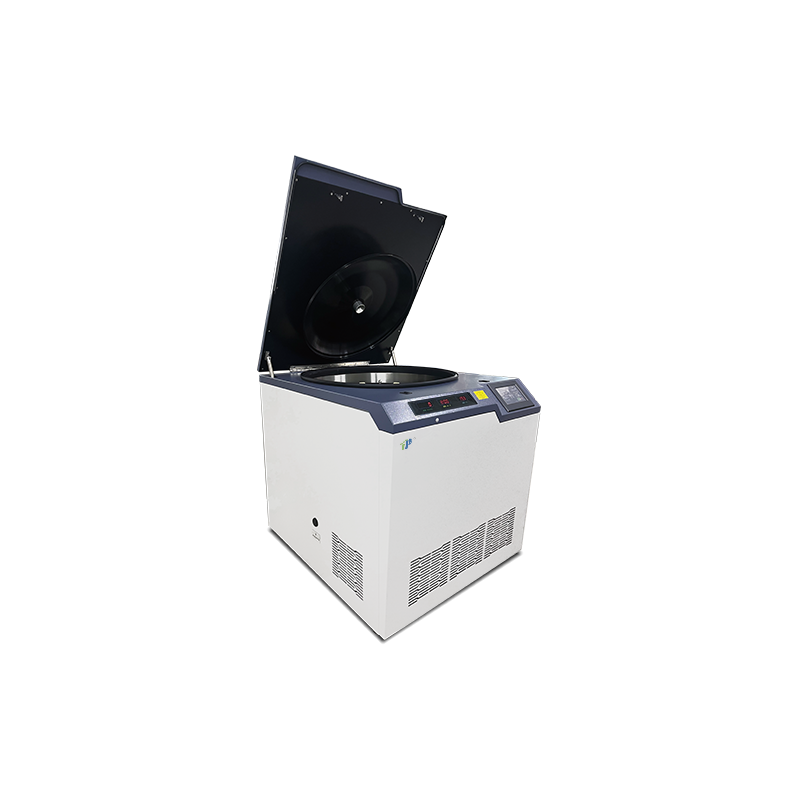

High Capacity Refrigerated Floor Standing Centrifuge 8000 rpm | 15,526×g | 6×2400ml | TDR72C Model

You are here: home » Products » Centrifuges » Refrigerated Centrifuges » High Capacity Refrigerated Floor Standing Centrifuge 8000 rpm | 15,526×g | 6×2400ml | TDR72C Model

Product Category

TDR72C Floor Large Capacity Low Speed Refrigerated Centrifuge

High Capacity Refrigerated Floor Standing Centrifuge 8000 rpm | 15,526×g | 6×2400ml | TDR72C Model

Max Speed: 8000 rpm
Max Relative Centrifugal Force (RCF): 15,526 × g
Max Capacity: 6 × 2400 ml
Temperature Range: -20℃ to 40℃ with ±1.0℃ accuracy
Noise Level: ≤ 65 dB(A)
Timer: 1 second to 99h59m59s
Net Weight: 590 kg, Size: 860 × 975 × 1170 mm
Rotor automatic identification and safety protections (overspeed, overheating, imbalance)

Quantity:
Availability:





Inquire Add to Basket

Model:
TDR72C
Brand:
TOP

Product Features:

Intelligent control system

◆ Auto electric lid lock.

◆ Automatically calculate RCF,RPM and RCF switching freely.

◆ Up to 10 level acceleration/ deceleration with Linear drive.

◆ Can store 99 groups of program.

Excellent kernel performance

◆ Microcomputer control with LCD Display,driven by AC frequency conversion brush-less motor.

◆ Two modes can be set: start timing/arrival revolution timing.

◆ Imported ECO-Friendly CFC free compressor unit,heated and cooling dual system control.

Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance protections with auto lid lock.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

◆ Equipped with self correcting balance swivel and error code.

Intimate detail design

◆ Equipped the intimate portable fan hood hanger;

◆ The machine with an operation SOP guide map, which makes it easier and more standard for laboratory workers.

◆ Equipped with rotor lid that can be quickly locked .

◆ Special noise reduction system .

◆ The side door is designed to facilitate closing and locking the centrifuge cover.

Floor Large Capacity Low Speed Refrigerated Centrifuge Floor standing refrigerated centrifuge Large capacity low speed centrifuge Low speed refrigerated centrifuge Industrial refrigerated centrifuge High volume centrifuge with cooling 4℃ refrigerated centrifuge for lab 6500 rpm floor centrifuge 10L capacity laboratory centrifuge Best floor model refrigerated centrifuge for lab

Related Products

High-Speed Refrigerated Laboratory Centrifuge | 6000–20000 rpm, -60℃ to 40℃, Multiple Rotor Options

Heated Crude Oil Moisture Determining Centrifuge

Crude Oil Water & Sediment Centrifuge | 100ml×4/16 | Heating | LCD | Tabletop & Floor Type

Refrigerated Vehicle Low Speed Centrifuge

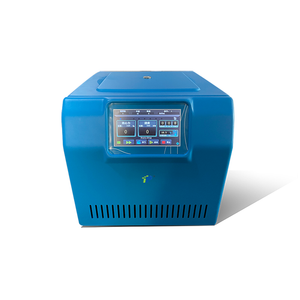

High-Capacity Refrigerated Blood Bank Centrifuge TDL4M – 4000 rpm, 24×5 mL / 12×15 mL, LCD Touch Control

High-Speed Refrigerated Laboratory Centrifuge 5000 rpm, 4×400 ml Swing Rotor, Microprocessor Control, ISO Certified

Refrigerated Benchtop Low Speed Centrifuge

High-Speed Refrigerated Laboratory Centrifuge TZ-5MT / TDL5M – 5500rpm, LCD Touch Screen, Large Capacity

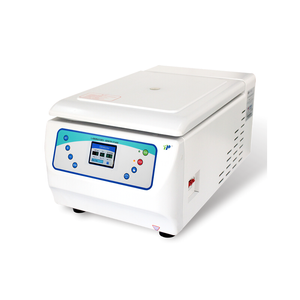

TDL-6MC Refrigerated Benchtop Low Speed Centrifuge

Laboratory Refrigerated Low-Speed Centrifuge TDL-6MC, 4200 rpm, 12×10ml Capacity, LCD Display

T3H16R1 Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Microcentrifuge 16000rpm for PCR & Molecular Biology | Compact Lab Centrifuge for 1.5ml, 2.2ml, 5ml Tubes

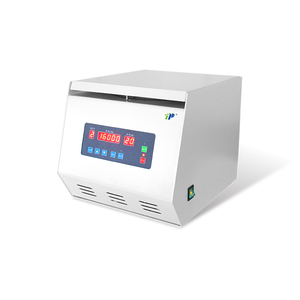

TG16000 Non-refrigerated Benchtop High Speed Centrifuge

High Speed Refrigerated Laboratory Centrifuge 16000rpm with Touch Screen and Rotor Recognition for Biotech & Clinical Use

TGL-1600R Bench-Top High-Speed Freezing Centrifuge

TGL-R Series Refrigerated High Speed Microcentrifuge with LCD Display and Multiple Rotor Options

High-Speed Refrigerated Desktop Centrifuge | 10000–18500 rpm | Lab & Clinical Use

TGL16MB Bench-Top Refrigerated Centrifuge for Molecular Diagnostics & Biological Research, 16000 RPM High-Speed Microcentrifuge

High Speed Refrigerated Microcentrifuge TGL-20MB with Touchscreen, 20,000 RPM, -20°C to 40°C Temperature Control, 4×100ml Capacity for Medical & Biological Research

Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Centrifuge 21000 RPM with Touch Screen & Large Capacity for Medical and Biotech Labs

High Speed Refrigerated Centrifuge 21000 RPM with Touchscreen for Clinical & Biotech Applications

Refrigerated Integrated Automatic Centrifuge

Automated Refrigerated Low-Speed Centrifuge TZ-4MT with RS485 Interface and Precise Temperature Control

High-Speed Refrigerated Floor Standing Centrifuge TZ-5M for Clinical and Biological Applications

Refrigerated Floor-top High Speed Centrifuge

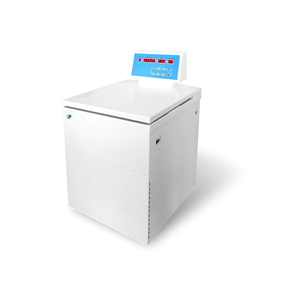

High-Speed Refrigerated Centrifuge TZ21K – 21000 rpm, 30053×g | Clinical & Laboratory Use

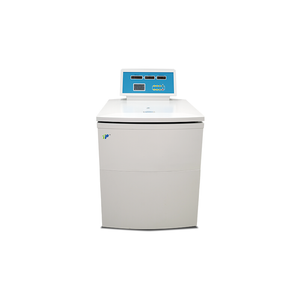

High-Speed Refrigerated Centrifuge TL-21M with 21000 RPM, 53098×g RCF, Large Capacity for Clinical & Laboratory Use

TL-6MB Refrigerated Floor-top High-Capacity Centrifuge

TL-6MB Refrigerated Floor Standing Centrifuge, 6000rpm, 6×500ml Capacity, Clinical & Biotech Lab Use

TDL-5AR Low speed desktop freeze centrifuge

TDL-5AR Low-Speed Refrigerated Desktop Centrifuge | 4000 RPM, 4×250ml, -20℃ to +40℃

Model	TDR72C
Max Speed	8000rpm	Voltage	AC 220±22V 50Hz 50A
Max RCF	15526×g	Power	7500W
Max Capacity	6×2400ml	Noise Level	≤ 65dB（A）
Timer	1s～99h59min59s	Size	860×975×1170 (mm)
Revolutions/min	±10r/min	Net Weight	590kg
Temp Range	-20℃～40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	6×500ml	8000rpm	11680×g
Angle rotor	2	2	6×1000ml	8000rpm	15526×g

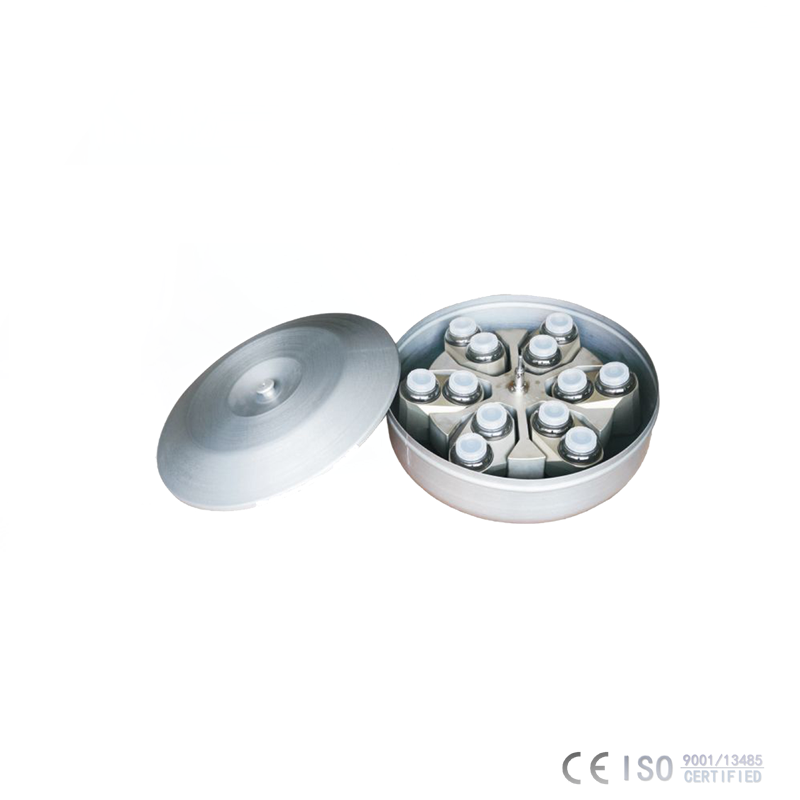

Swing-out rotor	3	3	6×2×1000ml	4200rpm	5000×g

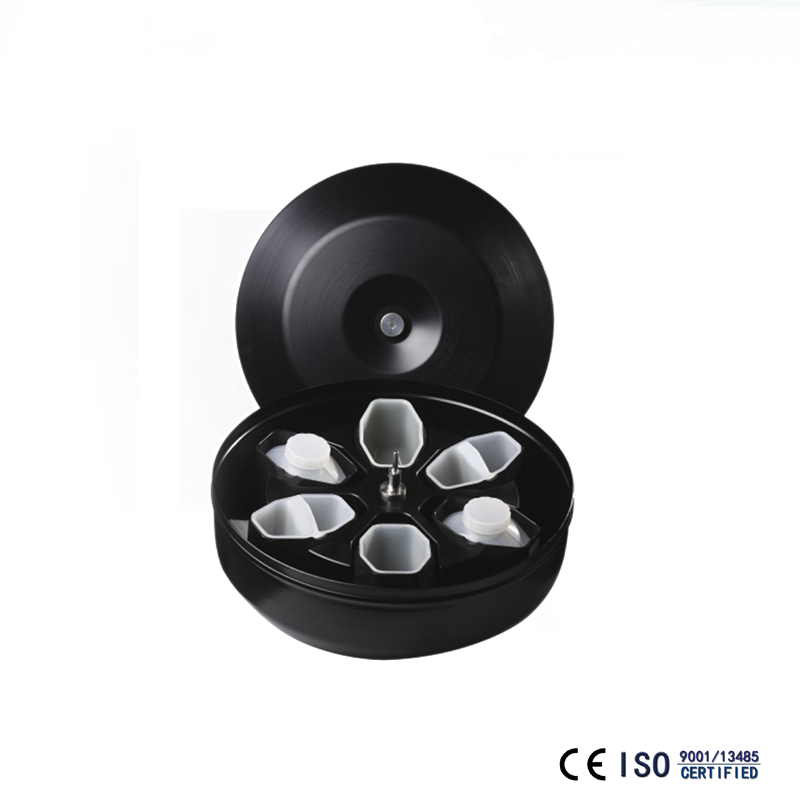

Swing-out rotor	4	4	6×2400ml	4200rpm	5600×g

Model	TDR72C
Max Speed	8000rpm	Voltage	AC 220±22V 50Hz 50A
Max RCF	15526×g	Power	7500W
Max Capacity	6×2400ml	Noise Level	≤ 65dB（A）
Timer	1s～99h59min59s	Size	860×975×1170 (mm)
Revolutions/min	±10r/min	Net Weight	590kg
Temp Range	-20℃～40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	6×500ml	8000rpm	11680×g
Angle rotor	2	2	6×1000ml	8000rpm	15526×g
Swing-out rotor	3	3	6×2×1000ml	4200rpm	5000×g
Swing-out rotor	4	4	6×2400ml	4200rpm	5600×g
