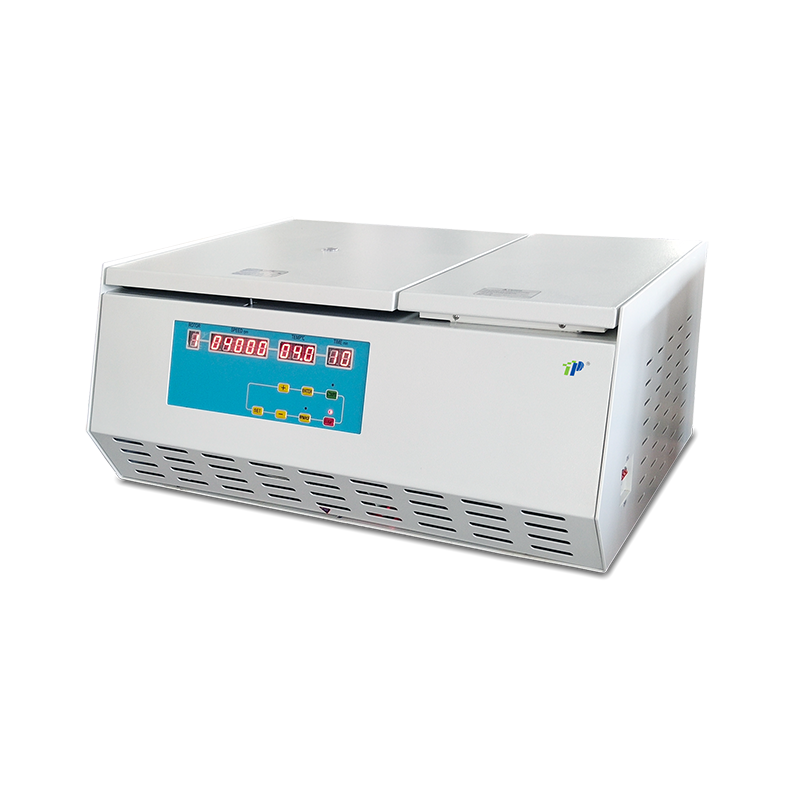

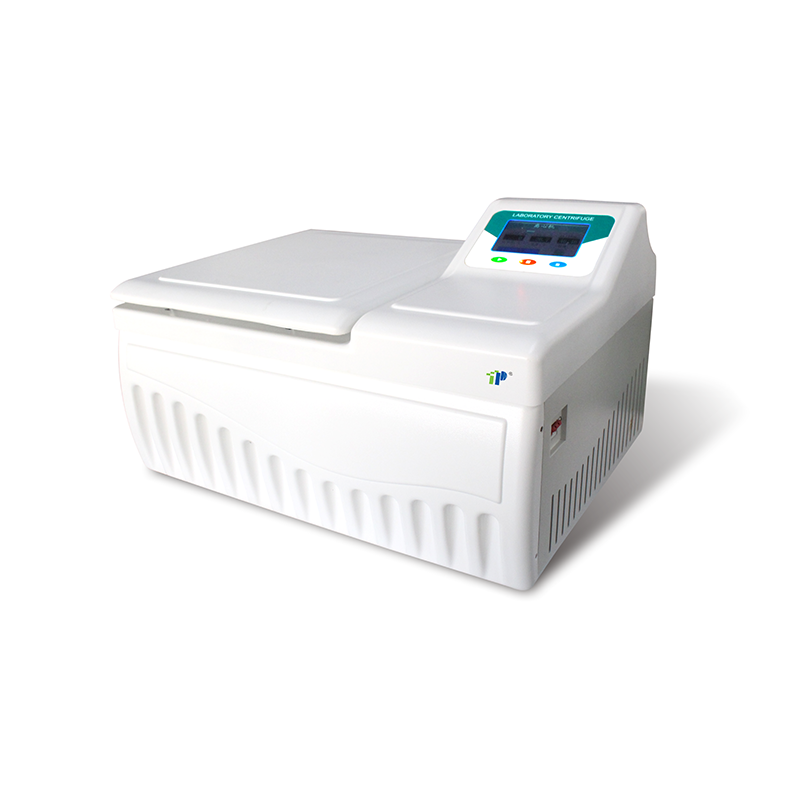

TZ-5MT / TDL5M
TOP
It is widely used in clinical medicine, clinical laboratory, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.
Feature:
1. Stainless steel chamber with guarding ring.
2. Reliable drive system. Variable frequency motor maintenance free.
3. Motorized lid locks prevent cover opening during centrifugation.
4. Manually lid open in case of failure or emergency.
5. Pneumatic spring supports prevent falling of lid.
6. Pre-cooling during standstill. CFC free refrigeration system.
7. Recall of last settings. Parameters can be changed during operation.
8. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
9. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
10. TFT touch screen easy to read and values selection (only for TZ-5MT).
11. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
12. Optional: Automatic lid opening at the end of run.
13. Optional: Short spin.
14. Optional: Rotor identification.
15. Optional: Program memory.
It is widely used in clinical medicine, clinical laboratory, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.
Feature:
1. Stainless steel chamber with guarding ring.
2. Reliable drive system. Variable frequency motor maintenance free.
3. Motorized lid locks prevent cover opening during centrifugation.
4. Manually lid open in case of failure or emergency.
5. Pneumatic spring supports prevent falling of lid.
6. Pre-cooling during standstill. CFC free refrigeration system.
7. Recall of last settings. Parameters can be changed during operation.
8. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
9. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
10. TFT touch screen easy to read and values selection (only for TZ-5MT).
11. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
12. Optional: Automatic lid opening at the end of run.
13. Optional: Short spin.
14. Optional: Rotor identification.
15. Optional: Program memory.
Technical data:
Model | TZ-5MT | TDL5M |
Max. RPM/RCF for angle rotor | 5500rpm / 4265×g | |
Max. RPM/RCF for swing rotor | 5500rpm / 5958×g | |
Max. Capacity for angle rotor | 12×15ml | |
Max. Capacity for swing rotor | 4×500ml, 96-well plates | |
Speed increment | - | 50rpm |
Speed accuracy | ±20rpm | |
Temp range | -20℃~+40℃ | |
Temp accuracy | ±2℃ | |
Timer range | 0min~99min59s | 1min~99min |
Acc / Dec rates | 10/10 | - |
Program memory | *30 | - |
Short spin function | *√ | - |
Power supply | AC220V / 50~60Hz | |
Power requirement | 1.4KW | |
Noise | <58db | |
Display | LCD Touch Screen | Digital display |
Machine body | Plastic and metal frame | Metal frame |
Net weight (without rotor) | 113kg | 118kg |
Machine dimension(L×W×H) | 840×610×510mm | 830×640×400mm |
Rotor List
Angle Rotor | AL1215-2 | |
| ||
Max.Capacity | 12×15ml | |
Max. Speed | 5500rpm | |
Max. RCF | 4265×g | |
Angle | 55° | |
ØxL(mm) | B10055 18×92mm | |
Adaptor | A20121 | 12×5ml (vacuum tube) |
A20122 | 12×2ml (vacuum tube) |
SS8100 Swing Rotor |
|
|
|
|
| |||
Cat. No. | B10401 | B10402 | B10403 | B10404 | B10405 | B10406 | ||
Max.Capacity | 8×100ml | 4×100ml | 8×50ml | 4×50ml | 32×15ml | 32×10ml | ||
Max. Speed | 4000rpm | 5000rpm | 4000rpm | 5500rpm | 4000rpm | 4000rpm | ||
Max. RCF | 2965×g | 4633×g | 3151×g | 5958×g | 3130×g | 3058×g | ||
ØxL(mm) | 42.5×100mm | 42.5×100mm | 30.5×92mm | 30.5×92mm | 18×92mm | 18×88mm | ||
Adaptor | A20114 | 8×1×15ml | A20114 | 8×1×15ml | A20121 | 4×8×5ml (vacuum tube) | ||
A20115 | 8×1×10ml | A20115 | 8×1×10ml | A20122 | 4×8×2ml (vacuum tube) | |||
A20116 | 8×1×5ml | A20116 | 8×1×5ml | A10123 | 4×8×1.5/2ml | |||
A20117 | 8×1×1.5/2ml | A20117 | 8×1×1.5/2ml |
SS8100 Swing Rotor |
|
| ||
Cat. No. | B10408 | B10464 | B20409 | B20410 |
Max.Capacity | 16×15ml | 16×10ml | 48×5ml | 48×2ml |
Max. Speed | 4000rpm | 4000rpm | 4000rpm | 4000rpm |
Max. RCF | 3130×g | 3058×g | 2945×g | 2462×g |
ØxL(mm) | 18×92mm | 18×88mm | 13.5×86mm | 13.5×58mm |
Adaptor | A20121 | 4×4×5ml (vacuum tube) | - | - |
A20122 | 4×4×2ml (vacuum tube) | |||
A10123 | 4×4×1.5/2ml |
