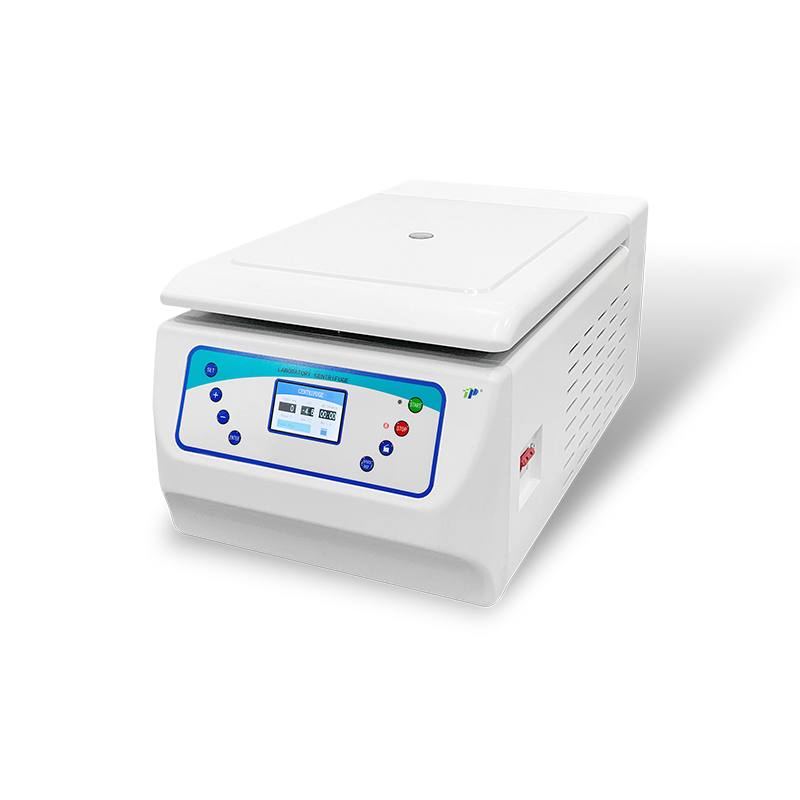

T3H16R1
TOP
It is suitable for the separation of micro samples in biology, medicine, scientific research, etc. It is the preferred product for genetic and protein nucleic acid PCR experiments.
Feature:
1. Power coated housing. Stainless steel chamber with guarding ring.
2. Compact design saves your working desk space.
3. Reliable drive system. Variable frequency motor maintenance free.
4. Electronic safety lock prevent cover opening during centrifugation.
5. Manually lid open in case of failure or emergency.
6. Pneumatic spring supports prevent falling of lid.
7. Pre-cooling during standstill. CFC free refrigeration system.
8. Recall of last settings. Parameters can be changed during operation.
9. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, error display.
10. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
11. Special rotor connector which makes it easy to load and unload the rotor.
12. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
It is suitable for the separation of micro samples in biology, medicine, scientific research, etc. It is the preferred product for genetic and protein nucleic acid PCR experiments.
Feature:
1. Power coated housing. Stainless steel chamber with guarding ring.
2. Compact design saves your working desk space.
3. Reliable drive system. Variable frequency motor maintenance free.
4. Electronic safety lock prevent cover opening during centrifugation.
5. Manually lid open in case of failure or emergency.
6. Pneumatic spring supports prevent falling of lid.
7. Pre-cooling during standstill. CFC free refrigeration system.
8. Recall of last settings. Parameters can be changed during operation.
9. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, error display.
10. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
11. Special rotor connector which makes it easy to load and unload the rotor.
12. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
Technical data:
Model | T3H16R1 |
Max. RPM/RCF for angle rotor | 16000rpm / 17446×g |
Max. Capacity for angle rotor | 24×1.5/2.2ml, 12×5ml |
Speed Increment | 1rpm |
Speed Accuracy | ±20rpm |
Temp. Range | -20℃~+40℃ |
Temp Accuracy | ±2℃ |
Timer Range | 0~99min59s |
Acc / Dec rates | 10/10 |
Power Supply | AC220V / 50~60Hz |
Power Requirement | 668W |
Noise | <55db |
Display | LCD screen |
Machine Body | Plastic and metal frame |
Net Weight (without rotor) | 36kg |
Machine Dimension(L×W×H) | 340×590×310mm (L×W×H) |
Rotor List
Angle Rotor | AAR1205-1 | AA12X5 |
Max.Capacity | 12×0.5ml | 12×5ml |
Max. Speed | 16000rpm | 13000rpm |
Max. RCF | 13034×g | 12765×g |
Angle | 45° | 50° |
ØxL(mm) | 8.4×28.5mm | 14×51mm |
Angle Rotor | AAR1215-1 | AAR1215-2 | AAR2415-1 | AAR2415-3 | ||||
Max.Capacity | 12×1.5/2.2ml | 12×1.5/2.2ml | 24×1.5/2.2ml | 24×1.5/2.2ml | ||||
Max. Speed | 16000rpm | 16000rpm | 13000rpm | 13000rpm | ||||
Max. RCF | 17446×g | 17446×g | 16245×g | 16245×g | ||||
Angle | 45° | 45° | 45° | 45° | ||||
ØxL(mm) | 11×39mm | 11×39mm | 11×39mm | 11×39mm | ||||
Adaptor | A20136 | 12×1×0.5ml | A20136 | 12×1×0.5ml | A20136 | 24×1×0.5ml | A20136 | 24×1×0.5ml |
A20137 | 12×1×0.2ml | A20137 | 12×1×0.2ml | A20137 | 24×1×0.2ml | A20137 | 24×1×0.2ml |
Technical data:
Model | T3H16R1 |
Max. RPM/RCF for angle rotor | 16000rpm / 17446×g |
Max. Capacity for angle rotor | 24×1.5/2.2ml, 12×5ml |
Speed Increment | 1rpm |
Speed Accuracy | ±20rpm |
Temp. Range | -20℃~+40℃ |
Temp Accuracy | ±2℃ |
Timer Range | 0~99min59s |
Acc / Dec rates | 10/10 |
Power Supply | AC220V / 50~60Hz |
Power Requirement | 668W |
Noise | <55db |
Display | LCD screen |
Machine Body | Plastic and metal frame |
Net Weight (without rotor) | 36kg |
Machine Dimension(L×W×H) | 340×590×310mm (L×W×H) |
Rotor List
Angle Rotor | AAR1205-1 | AA12X5 |
Max.Capacity | 12×0.5ml | 12×5ml |
Max. Speed | 16000rpm | 13000rpm |
Max. RCF | 13034×g | 12765×g |
Angle | 45° | 50° |
ØxL(mm) | 8.4×28.5mm | 14×51mm |
Angle Rotor | AAR1215-1 | AAR1215-2 | AAR2415-1 | AAR2415-3 | ||||
Max.Capacity | 12×1.5/2.2ml | 12×1.5/2.2ml | 24×1.5/2.2ml | 24×1.5/2.2ml | ||||
Max. Speed | 16000rpm | 16000rpm | 13000rpm | 13000rpm | ||||
Max. RCF | 17446×g | 17446×g | 16245×g | 16245×g | ||||
Angle | 45° | 45° | 45° | 45° | ||||
ØxL(mm) | 11×39mm | 11×39mm | 11×39mm | 11×39mm | ||||
Adaptor | A20136 | 12×1×0.5ml | A20136 | 12×1×0.5ml | A20136 | 24×1×0.5ml | A20136 | 24×1×0.5ml |
A20137 | 12×1×0.2ml | A20137 | 12×1×0.2ml | A20137 | 24×1×0.2ml | A20137 | 24×1×0.2ml |
