Style: Single-sided (TSGB2000-S) / Double-sided (TSGB2000-D)
Box Material: Stainless steel 1.4301, front panel: tempered glass or polycarbonate
Volume & Dimensions: 0.8m³ / 1200×750×900 mm (S), 1.1m³ / 1200×1000×900 mm (D)
Inert Atmosphere: ≤1ppm O₂ and H₂O, leakage rate <0.001 vol%/h
Purification System: GP-20 inert gas circulation, HEPA filter, fully automatic regenerable column
Control & Operation: Siemens PLC touchscreen, automatic pressure control, data logging
Accessories: Glove ports (220 mm), Butyl gloves (0.4/0.8 mm), vacuum pump, LED lighting


Style: Single-sided (TSGB2000-S) / Double-sided (TSGB2000-D)
Inert atmosphere: ≤1ppm O₂ & H₂O, closed-loop circulation system
Box Material: Stainless steel 1.4301 (SUS 304), 3mm thickness
Box Dimensions: 1200×750×900mm (S) / 1200×1000×900mm (D), Volume: 0.8–1.1m³
Glove ports: Diameter 220mm, Butyl rubber gloves (0.4–0.8mm), O-ring seal
Purification system: GP-20 inert gas purifier, HEPA filter, oil-free vacuum pump
Additional features: LED lighting, automatic pressure control ±12mbar, Siemens PLC touch screen


Double-sided Glove Box with inert atmosphere
Stainless steel 304 box, 1500×750×900mm, Volume 1.4m³
Oxygen & Water ≤1ppm, Leakage rate <0.001 vol%/h
GP-20 inert gas purification system, closed-loop, oil-free circulation
Siemens PLC touch screen, automatic data recording, foot-pedal pressure control
Equipped with EDWARDS RV12 vacuum pump, HEPA filters, LED lighting
Optional tempered glass or polycarbonate window, butyl rubber gloves 0.4/0.8mm


Double-sided Glove Box
Stainless steel 304 construction with 8mm tempered glass or 10mm polycarbonate front window
Inert atmosphere ≤1ppm O₂ and H₂O, automatic circulation purification with GP-20 system
Box dimensions: 1500×750×900mm, volume: 1m³; Glove ports: Ø220mm, Butyl rubber gloves
Integrated Siemens PLC touch screen for automatic control, data recording, and safety functions
Outlet and inlet HEPA filters <0.3μm, Edwards RV12 vacuum pump, closed-loop oil-free system
Adjustable casters and brackets for mobility; suitable for lithium battery, metal-organic, and scientific research


Style: Double-sided, Stainless Steel Box (SUS 304), 3mm thickness
Box Volume: 1.2 m³, Dimensions: 1800 × 1000 × 960 mm
Atmosphere: ≤1ppm O₂ and H₂O, GP-20 inert gas purification system
Front Window: 8 mm tempered glass or 10 mm polycarbonate
Glove Ports: Diameter 220 mm, Butyl Rubber Gloves (0.4 or 0.8 mm)
Filtration: Outlet & inlet HEPA filters (<0.3μm)
Accessories: Oxygen analyzer, Water analyzer, Vacuum pump, Oil mist filter


Model: TSGB1800-2SI, Single-sided design
Internal Volume: 1.2 m³, Box Dimensions: 1800 × 750 × 900 mm
Oxygen & Moisture Level: ≤1 ppm O₂ / H₂O
Leakage Rate: ≤0.001 vol%/h
Purification System: GP-20 Inert Gas Purifier (Fully Automatic & Regenerable)
Vacuum Pump: EDWARDS RV12 Rotary Vane
Material: Stainless Steel 1.4301 with Tempered Glass or Polycarbonate Window


Style & Dimensions: Single-sided stainless steel glove box, 2400×750×900 mm, volume 1.6 m³.
Atmosphere Control: O₂ and H₂O ≤ 1 ppm, closed-loop inert gas circulation with GP-20 purification system.
Purification System: Fully automatic, regenerable, with Siemens PLC touch screen control.
Leakage Rate: ≤ 0.001 vol%/h, tested with helium mass spectrometer.
Material & Window: SUS 304 stainless steel, tempered glass or polycarbonate front panel (optional).
Glove Ports & Gloves: Ø 220 mm aluminum alloy/polyoxymethylene ports; butyl rubber gloves 0.4/0.8 mm optional.
Included Accessories: Oxygen analyzer, water analyzer, EDWARDS RV12 vacuum pump, HEPA filters, lighting.

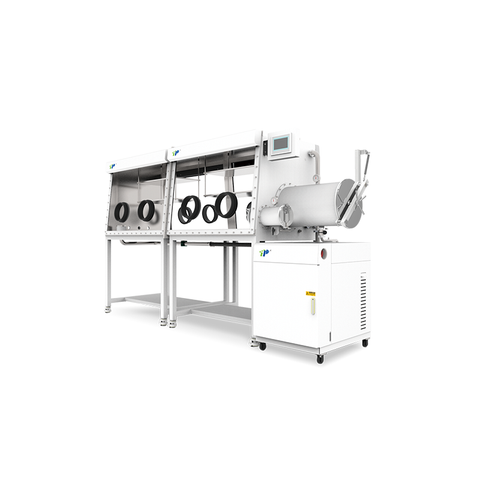

Inert atmosphere: ≤1ppm O₂ and H₂O, automatic purification system
Box dimensions: 2400×1000×900 mm, Volume: 2.2 m³
Material: Stainless steel 304 with 8 mm tempered glass or 10 mm polycarbonate front panel
Glove ports: 8 ports, diameter 220 mm, butyl rubber gloves (0.4/0.8 mm)
Leak rate: ≤0.001 vol%/h (helium mass spectrometer tested)
Integrated features: Oxygen & water analyzers, automatic pressure & purification control, Siemens PLC touch screen
Accessories: Edward vacuum pump, HEPA filters, bellows, clamps, and glove seals
