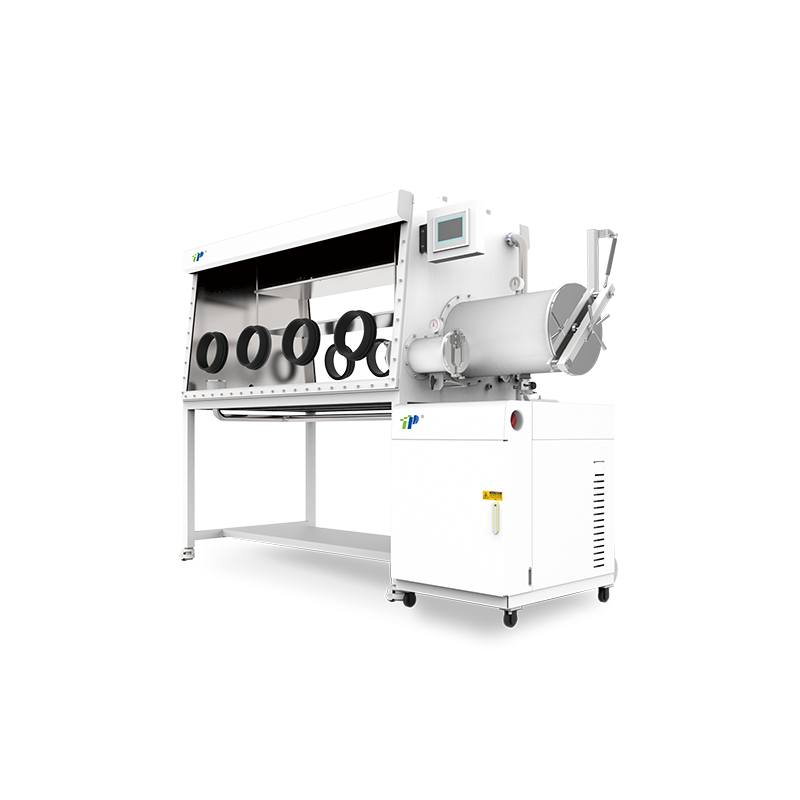

TSGB1800-4SS Double-Sided Glove Box with Inert Atmosphere ≤1ppm O₂/H₂O for Lab & Research

• Introduction：

The TSGB1800-4SS glove box is a high-performance, high-quality closed-loop system that automatically absorbs water and oxygen molecules and purifies the working environment, providing an inert atmosphere of ≤1ppm O₂ and H₂O that can meet your specific cleaning requirements. This system is an economical circulation purification system designed to meet the scientific research and development needs of customers.

The TSGB1800-4SS system includes a closed box, a set of (large and small) transition chambers, a rotary vane vacuum pump and a circulation purification system with an integrated microcontroller operation panel. The standard TSGB1800-4SS system is equipped with an inert gas purification system that installs a purification column (fully automatic and regenerable) to purify and maintain the atmosphere inside the glove box.

• Character：

Stainless steel box design, tempered glass or polycarbonate front window (optional);

Indicators: water, oxygen ≤1ppm;

Leakage rate: ≤0.001vol%/h;

Solenoid valve adopts modular design, leakage rate is reduced, and replacement is convenient;

Large transition chamber with sliding tray, transition chamber door is uniquely designed, light and easy to open;

GP-20 inert gas purification system;

SIEMENS microcontroller;

SIEMENS operation touch screen, easy to enter various functions;

Data memo: automatic recording of system data;

Closed gas cycle, oil-free and vacuum;

Foot pedal instead of manual pressure adjustment control;

All stainless steel gas flow pipes and accessories;

EDWARDS RV12 vacuum pump;

HEPA high efficiency filter;

Automatic pressure control, working air pressure can be set within the range of ±12mbar;

Adjustable height bracket;

Adjustable casters for easy movement;

Lamp cover with anti-reflective film;

• Advantages：

1. The glove box has beautiful design, compact structure and fine workmanship;

2. The inert gas in the glove box is circulated in a closed manner by the circulating fan and purifier, continuously absorbing oxygen and water;

3. The dehydration and oxygen removal material can be regenerated, and the regeneration process is automatically controlled by the program;

4. Adopting the latest European technology, all key components are imported from Europe and come from world-renowned manufacturers;

5. The control system includes self-diagnosis, power-off self-start characteristics, pressure control and adaptive functions, password protection, and the control unit adopts Siemens PLC touch screen;

6. The water analyzer has strong corrosion resistance and a wide range of applications, especially for lithium battery manufacturing and metal organic users. It can be cleaned 3 times free of charge and reused, avoiding the problem of scrapping after one pollution;

7. The oxygen analyzer uses ZrO₂ sensor to avoid the problem of short fuel cell life and continuous exposure to the air;

8. The integrated valve structure is adopted to reduce and optimize the system pipeline layout, reduce leakage points, simplify the leak detection link, and make the product more stable and reliable;

9. The equipment runs stably and can operate continuously for 7×24h for a long time;

10. Automatic control, simple operation, low operation and maintenance costs;

11. All parts of the glove box are professionally, standardized and mass-produced;

12. Products are provided for customers with various special requirements;

13. All parts are strictly audited and controlled;

14. Rich design and control experience;

15. The production process is strictly carried out in accordance with ISO9001 standards;

16. High-precision modern testing methods, helium mass spectrometer leak detectors are used to detect leaks in key links during the production process to ensure foolproof product quality; 17 Excellent technical team to achieve continuous improvement and perfection of products;
