Vertical Laminar Flow Clean Benches

Vertical Laminar Flow Clean Benches provide a clean and sterile working environment by directing HEPA-filtered air vertically from the top of the unit down to the work surface. This vertical airflow design offers excellent particle control, making these benches ideal for applications where sample protection from airborne contamination is critical.


These clean benches are commonly used in microbiology, biotechnology, pharmaceuticals, and tissue culture labs. The downward laminar airflow minimizes turbulence and prevents cross-contamination, especially during sensitive procedures like media preparation, plate pouring, or sample handling.


Our vertical laminar flow clean benches feature:

  • High-efficiency HEPA or ULPA filters for 99.99% filtration of particles ≥0.3 microns

  • Ergonomic design with large viewing windows and comfortable working space

  • Low noise, energy-efficient operation for quiet laboratory environments

  • Optional UV sterilization lamps for added contamination control

  • Available in various sizes and configurations to meet different lab requirements


All units are manufactured to meet international cleanroom standards and come equipped with features that support both performance and user safety. Whether you're setting up a sterile workflow station or upgrading your current lab equipment, our vertical laminar flow clean benches deliver the clean air assurance you need.

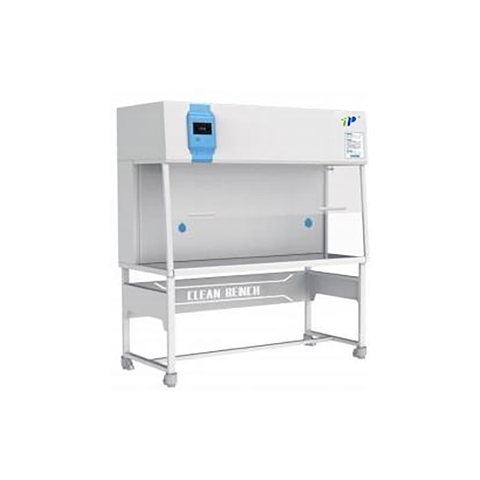

  • Vertical Clean Bench, TS-CJ-3FD

    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 1800*650*580mm
    · Overall dimension (W*D*H):1960*690*1600mm
    · Material: All steel structure
    · Number of users: Three people/Single Side
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: TS-CJ-3FD
    Add to Basket

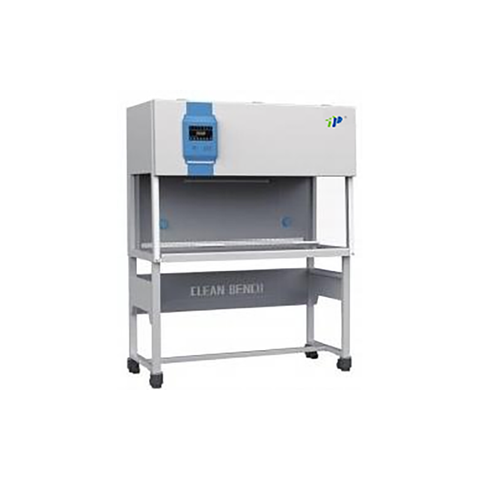

  • Vertical Laminar Flow Cabinet, TS-840U

    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 700*600*700mm
    · Overall dimension (W*D*H): 860*760*1760mm
    · Material: All steel structure
    · Number of users: Single People/Single Side
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: TS-840U
    Add to Basket
  • Vertical Laminar Flow Clean Bench, TS-1300U

    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 1140*600*700mm
    · Overall dimension (W*D*H): 860*590*1600mm
    · Material: All steel structure
    · Number of users: Double Persons/Single Side​
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: TS-1300U
    Add to Basket

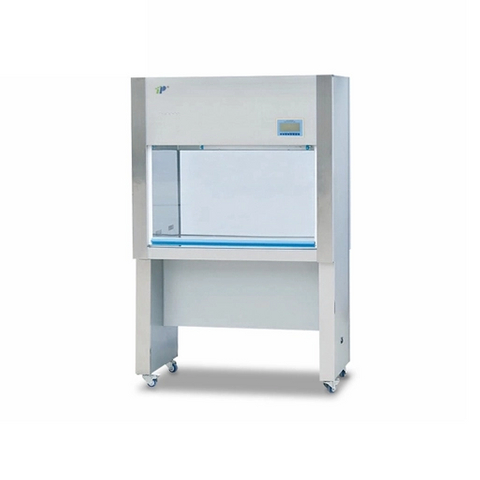

  • Vertical Laminar Flow Cabinet, T-CJ-1D

    · Economy type
    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 700*550*580mm
    · Overall dimension (W*D*H): 860*590*1600mm
    · Material: Steel and wood structure
    · Number of users: Single People/Single Side
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: T-CJ-1D
    Add to Basket
  • Vertical Laminar Flow Cabinet, T-CJ-2D

    · Economy type
    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 1150*550*580mm
    · Overall dimension (W*D*H): 1310*590*1600mm
    · Material: Steel and wood structure
    · Number of users: Double Persons/Single Side​
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: T-CJ-2D
    Add to Basket
  • Vertical Laminar Flow Cabinet, T-CJ-3F

    · Economy type
    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 1800*650*580mm·
    · Overall dimension (W*D*H): 860*590*1600mm
    · Material: Steel and wood structure
    · Number of users: Three persons/Double Sides
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: T-CJ-3F
    Add to Basket
  • Vertical Laminar Flow Cabinet, T-CJ-1F

    · Economy type
    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 880*650*580mm
    · Overall dimension (W*D*H): 1040*720*1600mm
    · Material: Steel and wood structure
    · Number of users: Single Person/Double Sides
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: T-CJ-1F
    Add to Basket
  • Laminar Flow Cabinet, Vertical Type, T-CJ-2F

    · Economy type
    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 1370*650*580mm
    · Overall dimension (W*D*H): 1530*720*1600mm
    · Material: Steel and wood structure
    · Number of users: Double Persons/Single Sides
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: T-CJ-2F
    Add to Basket
  • Vertical Laminar Flow Cabinet, T-CJ-1FD

    · Economy type
    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 880*650*580mm
    · Overall dimension (W*D*H): 1040*690*1600mm
    · Material: Steel and wood structure
    · Number of users: Single People/Single Side
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: T-CJ-1FD
    Add to Basket
  • Vertical Laminar Flow Cabinet, T-CJ-2FD

    · Economy type
    · Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
    · Dimension of working area (W1*D1*H1): 1370*650*580mm
    · Overall dimension (W*D*H): 1530*690*1600mm
    · Material: Steel and wood structure
    · Number of users: Double Persons/Single Side​
    · HEPA high-efficiency air filter and a primary filter for preliminary filtration.

    Model: T-CJ-2FD
    Add to Basket
