TH-50 Digital Microscope, 40X–1600X Magnification with Built-in 2–20MP CCD/CMOS Camera, USB2.0/3.0 Output
Digital Compensation Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 48–75mm
Wide Field Eyepiece WF10X/20mm, WF16X/15mm, Diopter Adjustable; Achromatic / Economic Plan Achromatic Objectives 4X, 10X, 40X(Spring), 100X(Oil, Spring)
Quadruple Nosepiece with Steel Ball Positioning; Double-Layer Mechanical Stage, 115×125mm (Optional 140×132mm), Stroke 70×50mm
Coaxial Coarse & Fine Focusing Knob, Coarse 22mm, Fine 0.002mm; Abbe Condenser N.A.=1.25 with Iris Diaphragm
LED Illumination 3W, Brightness Adjustable; External Switching Power Supply AC100–240V


TMC100 Digital Microscope with 11.6-inch Full HD Touch Screen, 40X–1600X Magnification, Windows 10 OS, 8MP CMOS Camera
Compensation Binocular Tube, 30° Inclined, Interpupillary Distance 48–75mm
Plan or Optional Achromatic Objectives 4X, 10X, 40X(Spring), 100X(Spring, Oil), Four-Hole Nosepiece
Curved Double-Layer Mechanical Stage 140×140mm, Stroke 76×52mm; Coaxial Coarse & Fine Focusing, 28mm Coarse, 0.002mm Fine, Adjustable Elasticity
Abbe Condenser N.A.=1.25 with Iris Diaphragm; Critical Illumination, Adjustable Field Diaphragm, USB Flexible Upper Light, 3W LED Bottom Light
Intelligent Sensing Device, Smart LED Display for Lighting and Battery, Optional Color Temperature Switching and ECO Mode
External DC 5V/2A Power Adapter with Rechargeable 3.7V/1600mAh Battery; HDMI, USB2.0/3.0, Type-C, LAN Interfaces


Digital TH50-PB Series Microscope with Tablet, 40X–1600X magnification, built-in CCD/CMOS camera 5MP (optional 2–16MP), 10.1–11.6 inch high-definition touch screen, Windows OS
Digital compensation binocular or trinocular head, 30° inclined, 360° rotatable, interpupillary distance 48–75mm
High-eyepoint wide-field eyepieces WF10X/20mm and WF16X/16mm; UA Achromatic or Plan Achromatic objectives 4X, 10X, 40X(Spring), 100X(Spring, Oil)
Quadruple inner inclined nosepiece, coaxial coarse & fine focusing, coarse 20mm, fine 0.002mm, adjustable elasticity and locking
Double-layer mechanical stage 115×125mm (optional 140×132mm), moving range 76×52mm; Abbe condenser N.A.=1.25 with iris diaphragm and filter holder
Critical illumination lens, LED cold light bottom illumination, optional high-power LED top light, brightness adjustable
External wide-voltage switch power supply AC90–240V, output DC 6V/2A


Digital TH100 Series Microscope with Tablet, 40X–1600X magnification, built-in CCD/CMOS camera 5MP (optional 2–16MP), high-definition 10.1–11.6 inch touch screen, Windows or Android OS
Digital compensation binocular or trinocular head, 30° inclined, 360° rotatable, interpupillary distance 48–75mm
High-eyepoint wide-field eyepieces WF10X/20mm and WF16X/16mm; EP Achromatic, Plan Achromatic, or Infinity Plan High-contrast Achromatic objectives 4X, 10X, 40X(Spring), 100X(Spring, Oil)
Quadruple inner inclined nosepiece, coaxial coarse & fine focusing, coarse 22mm, fine 0.002mm, adjustable elasticity, random positioning and locking
Double-layer mechanical stage 160×142mm, moving range 76×52mm, double slide clamp; Abbe condenser N.A.=1.25 with iris diaphragm and filter holder
Critical illumination lens, LED cold light bottom illumination, optional high-power LED top light, brightness adjustable
External wide-voltage switch power supply AC90–240V, output DC 6V/2A


Infinity digital ICCF microscope with 40X–1600X magnification, high-eyepoint wide-field eyepieces WF10X/20mm and WF16X/16mm
Infinity Plan High-contrast Achromatic objectives: HC PLAN 4X, 10X, 40X(Spring), 100X(Spring, Oil) or IPL 4X, 10X, 40X(Spring), 100X(Spring, Oil)
Infinity gemel-style binocular or trinocular tube, 30° inclined, 360° rotatable, interpupillary distance 48–75mm
Double-layer mechanical stage, 188×145mm, moving range 76×54mm, can hold 2 slides; coaxial coarse & fine focusing, coarse 20mm, fine 0.001mm
Full Kohler Abbe condenser N.A.=1.25 with iris diaphragm, center adjustable; interchangeable LED 3W / halogen 6V/30W bottom illumination
Built-in CCD/CMOS camera, 5MP (optional 2–16MP), Windows or Android tablet control, image capture, video, measurement, editing, color adjustment, overlay, particle counting
External wide-voltage switch power supply, AC 90–246V input, DC 6.5V/5A output


Infinity digital hinge binocular microscope, 30° inclined, 360° rotatable viewing head, interpupillary distance adjustable
High-eyepoint wide-field eyepieces WF10X/20mm and WF16X/16mm
ICCF Corrected Colour Free objectives: HC PLAN 4X, 10X, 40X(Spring), 100X(Spring, Oil) with 4-hole nosepiece
Double-layer mechanical moving stage, 188×145mm, moving range 76×54mm, Abbe condenser NA 1.25
Coaxial coarse and fine focusing, coarse range 20mm, fine graduation 0.001mm
Interchangeable Kohler LED 3W/1A and halogen 6V/30W illumination, external DC6V/5A power supply
Digital imaging CMOS camera 3.1–10MP, USB2.0 interface, PHMIAS Ver3.0 software for measurement, editing, and analysis


Optical magnification 40X–1600X with digital compensation-free binocular head, 30° inclined, 360° rotatable, interpupillary distance 48–75mm
Wide-field eyepiece WF10X/20mm and WF16X/15mm, diopter adjustable
Achromatic, Plan Achromatic, or Infinity Plan Achromatic objectives: 4X, 10X, 40X(Spring), 100X(Oil, Spring) with quadruple nosepiece
Double-layer mechanical moving stage, 160×142mm, moving range 76×52mm, supports two slice clips
Coaxial coarse and fine focusing, coarse range 22mm, fine graduation 0.002mm, Abbe condenser NA1.25 with iris diaphragm
LED 3W compound eye illumination, brightness adjustable, external AC100–240V switching power supply
Built-in CCD/CMOS digital imaging system, 2–20MP, USB2.0/3.0 output, software supports photo, video, measurement, color adjustment, and particle counting

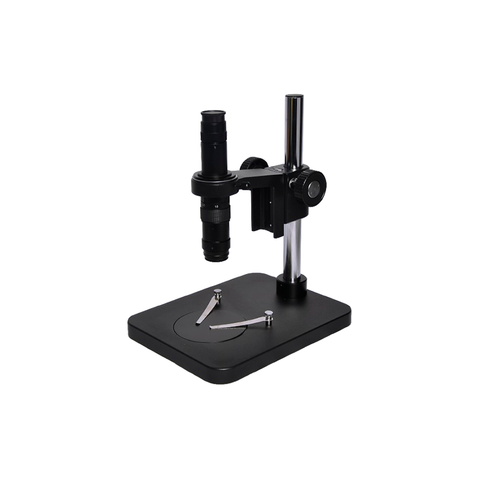

Continuous zoom objective: 0.7X to 4.5X, smooth and flicker-free magnification.
Optical magnification range: 0.12X to 18X (with CCD eyepiece and auxiliary objectives).
Working distance options: 198mm, 131mm, 96mm, 63mm, depending on lens configuration.
Interchangeable CCD eyepieces: 0.35X / 0.5X / 0.75X / 1X / 1.5X / 2X.
Optional objective lenses: 0.5X / 0.75X / 1X / 1.5X / 2X.
Wide field of view: up to 46mm, ensuring large area observation.
Compatible with various lighting sources and stand bases.


Magnification Range: 50x – 1000x
Eyepiece: WF10× (wide field), high-eye point, adjustable diopter
Objective Lens: Infinity plan achromatic objectives (4×, 10×, 40×, 100× oil)
Illumination: LED transmitted light, adjustable brightness
Stage: Double-layer mechanical stage, 140×140mm, movement range 75×50mm
Focus System: Coaxial coarse & fine focusing, adjustable tension, focusing range 30mm


Viewing head: Monocular head 30° tilt, 360° rotation
Eyepiece: WF10X-18mm
Objective (optics)
DIN achromatic objective 4X/NA0.10
DIN achromatic objective 10X/NA0.25
DIN achromatic objective 40XR/NA0.65
Converter: Three-hole converter with positioning
Lightbar: Variable light bar
Spotting Lens: NA1.25 Abbe Spotting Lens
Illumination: LED illumination with rechargeable battery, adjustable brightness
