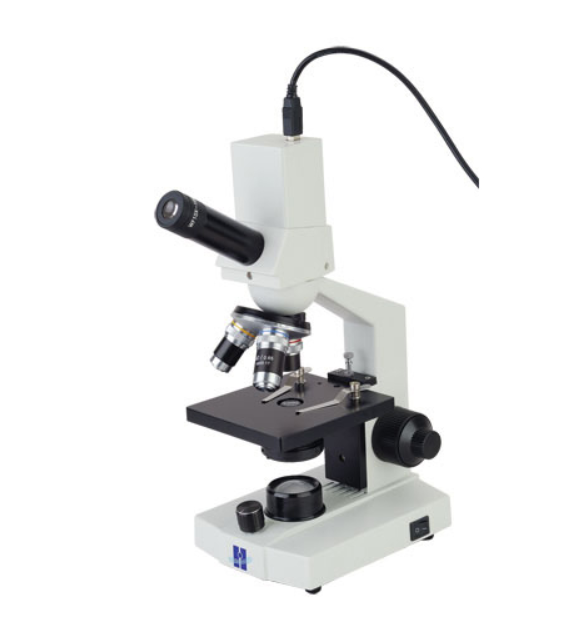

TM-BP20 Monocular Digital Biological Microscope with 1.3MP USB Camera, Achromatic Objectives, And Rechargeable LED Illumination

You are here: home » Products » Microscopes » Biological Microscopes » TM-BP20 Monocular Digital Biological Microscope with 1.3MP USB Camera, Achromatic Objectives, And Rechargeable LED Illumination

Product Category

TM-BP20 Monocular Digital Biological Microscope with 1.3MP USB Camera, Achromatic Objectives, And Rechargeable LED Illumination

Viewing head: Monocular head 30° tilt, 360° rotation
Eyepiece: WF10X-18mm
Objective (optics)
DIN achromatic objective 4X/NA0.10
DIN achromatic objective 10X/NA0.25
DIN achromatic objective 40XR/NA0.65
Converter: Three-hole converter with positioning
Lightbar: Variable light bar
Spotting Lens: NA1.25 Abbe Spotting Lens
Illumination: LED illumination with rechargeable battery, adjustable brightness

Quantity:
Availability:





Inquire Add to Basket

Model:
TM-BP20
Brand:
TOP

Components	Specification
Viewing head	Monocular head 30° tilt, 360° rotation
Eyepiece	WF10X-18mm
Objective (optics)	DIN achromatic objective 4X/NA0.10 DIN achromatic objective 10X/NA0.25 DIN achromatic objective 40XR/NA0.65
Converter	Three-hole converter with positioning
Platforms	Simple Platform 110mmX120mm with Pressure Plate
Lightbar	Variable light bar
Spotting Lens	NA1.25 Abbe Spotting Lens
Illumination	LED illumination with rechargeable battery, adjustable brightness

wireless digital microscope digital microscope 1000x digital microscope for soldering digital microscope for phone digital microscope software affordable digital microscope digital microscope for coins digital microscope for inspection digital microscope with wifi digital microscope for biology

Related Products

T-PCR-2S PCR Workstation | HEPA Filter Clean Bench for Molecular Biology and Genetics

T-PCR-1S PCR Laminar Flow Cabinet | HEPA Filter, Sterile Workbench, Contamination-Free Environment

TOP INSTRUMENT Real-Time PCR System – 4-Channel Dual 16-Well Block qPCR for Quantitative & Melting Curve Analysis

TOP INSTRUMENT 8-Well Real-Time PCR System – Dual-Channel Portable qPCR for Quantitative & Melting Curve Analysis

TOP INSTRUMENT Super Mini Real-Time PCR System T880 Series for Rapid, Portable DNA & RNA Analysis

TP-96G 96-Well PCR Thermal Cycler | Fast Gradient, Hot Lid, Touch Screen Control for Molecular Biology

Intelligent Gradient PCR Thermocycler TGT9612

TGT9612 Intelligent Gradient PCR Thermocycler | High-Precision DNA Amplification with LCD Touchscreen

TS-FH1200 Laboratory Fume Hood with Integrated Ventilation and Stainless Steel Work Surface

TS-FH1500 Laboratory Fume Hood with Stainless Steel Work Surface and Integrated Ventilation System

TS-FH1800 Laboratory Fume Hood with Stainless Steel Work Surface and Integrated Ventilation System

T-12 Chemical Lab Fume Hood with Adjustable Glass Window, Integrated Ventilation and Waste Disposal

T-15 Chemical Lab Fume Hood with Adjustable Glass Window, Integrated Ventilation and Safe Waste Disposal

T-18 Laboratory Fume Hood with Adjustable Glass Window, Integrated Ventilation, and Safe Waste Disposal

TS-12 Chemical Laboratory Fume Hood with Corrosion-Resistant Work Surface and Integrated Ventilation

TS-15 Laboratory Chemical Fume Hood with Corrosion-Resistant Work Surface and Integrated Ventilation

TS-18 Laboratory Chemical Fume Hood with Corrosion-Resistant Work Surface and Integrated Ventilation System

T-600 Desktop Mini Fume Hood for Laboratory and Medical Use with High-Efficiency Filter

Name	TM-BP20
Image device	1.3M pixel 1/2’’ COMS
Resolution	1280x1024 effective pixels
Pixel Point Size	5.2umx5.2um
Transmission Rate	16f/s@1280x1024
Signal-to-noise ratio	62dB
Scanning method	Progressive scanning
Operating Systems	Windows2000/XP
Data Interface	USB2.0(480Mbit/sec)
Power Supply	USB2.0 powered
Operating temperature	0°~50°C

Name	TM-BP20
Image device	1.3M pixel 1/2’’ COMS
Resolution	1280x1024 effective pixels
Pixel Point Size	5.2umx5.2um
Transmission Rate	16f/s@1280x1024
Signal-to-noise ratio	62dB
Scanning method	Progressive scanning
Operating Systems	Windows2000/XP
Data Interface	USB2.0(480Mbit/sec)
Power Supply	USB2.0 powered
Operating temperature	0°~50°C
