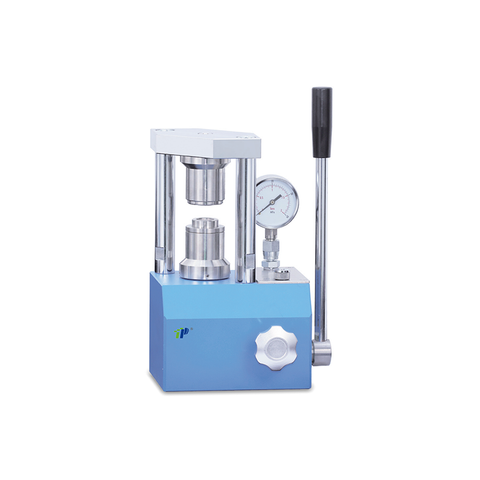

PTP-2N Manual Battery Sealing Machine with Dual-Scale Gauge – 0–2 Tons Bench PressPressure Range & Accuracy: 0–2 tons, dual-scale pointer gauge
Cylinder Diameter & Stroke: 32mm diameter, 0–30mm stroke
Sealing & Demolition Molds: CR16, CR20, CR24, CR30 series optional
Overall Dimensions & Weight: 210×165×290mm, 12KG
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, aluminum handwheel, high-speed steel mold, extended tension spring
Operation: Bottom-corner press design for effortless manual operation
Precision Control: Customized plunger and digital pressure display ensure no leakage and accurate sealing
- Model: PTP-2N
-

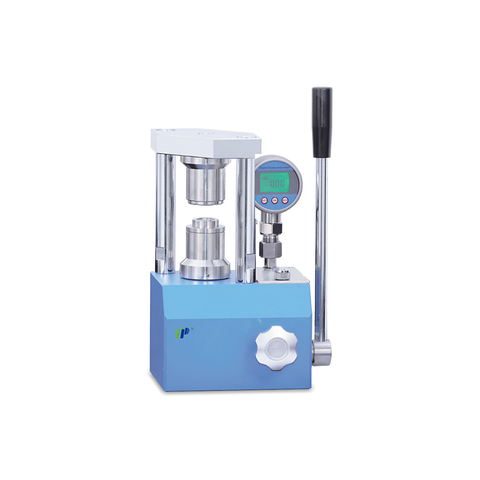

PTP-2NS Digital Display Manual Battery Sealing Machine – 0–2 Tons Bench PressPressure Range & Accuracy: 0–2 tons, 0.01 tons digital display
Cylinder Diameter & Stroke: 32mm diameter, 0–30mm stroke
Sealing & Demolition Molds: CR16, CR20, CR24, CR30 series optional
Overall Dimensions & Weight: 210×165×290mm, 12KG
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, aluminum handwheel, extended tension spring, high-speed steel mold, customized plunger
Operation: Ergonomic bottom-corner press for effortless manual sealing
Precision Control: Digital display ensures accurate pressure measurement
- Model: PTP-2NS
-

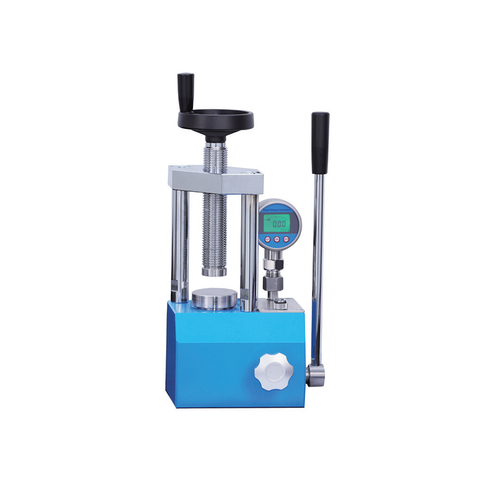

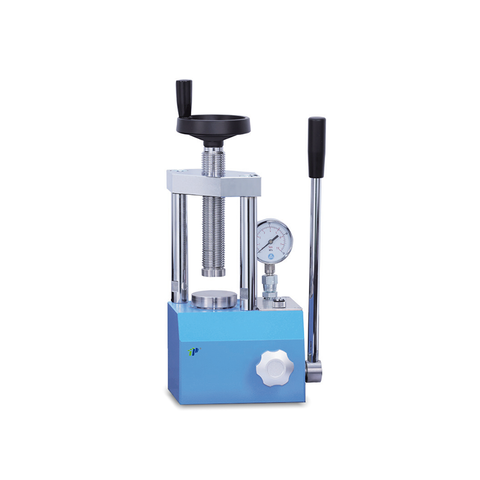

PTP Manual Lab Hot Press 0–3 to 40 Tons – Small Bench-Top Press with High AccuracyPressure Range: 0–3 / 5 / 12 / 15 / 24 / 30 / 40 tons
Cylinder Diameter & Stroke: 50–130mm diameter, 0–30 / 40mm stroke depending on model
Working Space: 80×140mm – 140×160mm
Overall Dimensions & Weight: 210×150×360mm – 295×215×500mm; 20–75KG
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, high-speed steel mold, aluminum handwheel, extended tension spring, special sealed plunger
Operation: Ergonomic bottom-corner pressure device for labor-saving manual operation
Precision Control: Digital pressure gauge with 0.01MMPa display accuracy
- Model: PTP-3/5/12/15/15B/20/30/40
-
PTP-S Manual Lab Hot Press 0-3 to 40 Tons – Small Bench-Top Press with High AccuracyPressure Range & Display Accuracy: 0–3 / 5 / 12 / 15 / 24 / 30 / 40 tons, accuracy 0.01 tons
Cylinder Diameter & Stroke: 50–130mm diameter, 0–30 / 40mm stroke depending on model
Working Space: 80×140mm – 140×160mm
Dimensions & Weight: Overall size 210×150×360mm – 295×215×500mm; weight 20–75KG
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, high-speed steel mold, aluminum handwheel, extended tension spring, special plunger with no oil leakage
Operation: Ergonomic pressurizing device at bottom corner for labor-saving manual operation
- Model: PTP-3S/5S/12S/15S/15BS/24S/30S/40S
-

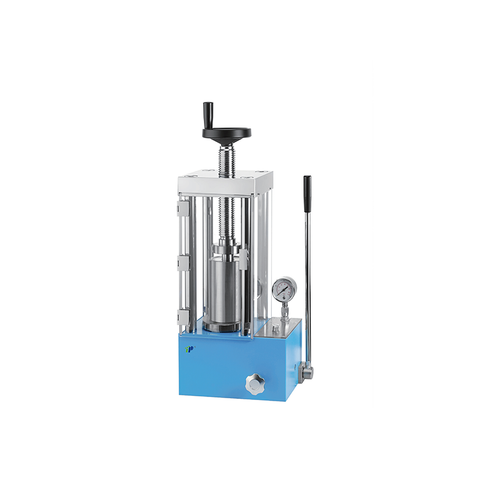

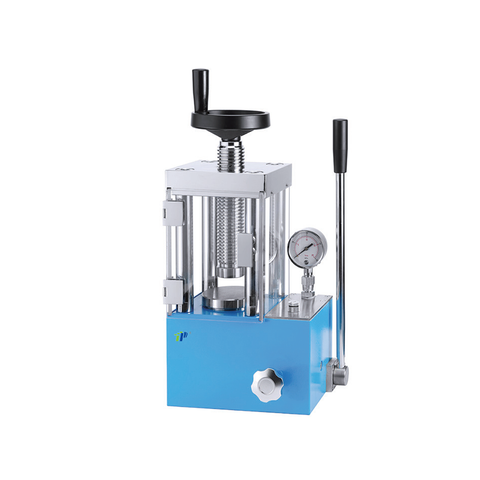

PTP-J Manual High-Pressure Hot Press 0-12/20/40/60 Tons – Lab Press with Dual-Scale Pressure GaugePressure Range & Display: 0–12 / 20 / 40 / 60 tons, dual-scale pressure gauge
Cylinder Diameter & Stroke: 95–150mm diameter, 0–40 / 50mm stroke depending on model
Cavity Size & Pressure: Φ22–50×150mm, maximum cavity pressure 300MPa
Working Dimensions & Weight: Overall dimensions 305×195×530mm – 405×240×720mm; weight 80–180KG
Safety Protection: Plexiglass protective door for safe operation
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, extended tension spring, high-speed steel mold, all-aluminum alloy handwheel, special plunger with no oil leakage
Operation: Ergonomic pressurizing device positioned at bottom corner for labor-saving manual operation
- Model: PTP-60J / 40J / 20J / 12J
-

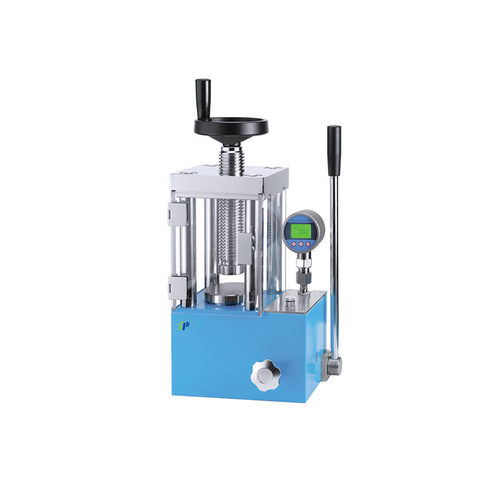

PTP-F Manual Hydraulic Hot Press 0-15/24/30/40/60 Tons – Laboratory Press with Digital Pressure GaugePressure Range & Accuracy: 0–15 / 24 / 30 / 40 / 60 tons, digital display 0.01 tons
Cylinder Diameter & Stroke: 80–150mm diameter, 0–30 / 40 / 50mm stroke
Working Space: 80×140mm – 180×210mm for different models
Overall Dimensions & Weight: 260×175×405mm – 400×250×560mm; 42–130KG
Display & Control: Digital pressure gauge for precise monitoring
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, extended tension spring, all-aluminum alloy handwheel, high-speed steel mold, customized plunger with no oil leakage
Operation: Manual press with labor-saving ergonomic design
- Model: PTP-15F/24F/30F/40F/60F
-

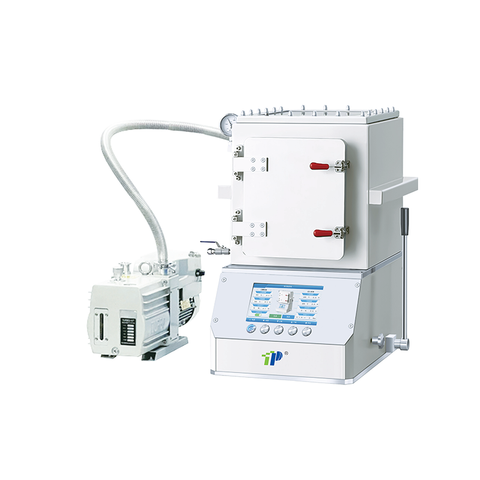

PTP-600Z High-Temperature Vacuum Hot Press 0-5/10/15 Tons – 7-Inch Touch Screen Lab PressPressure Range & Accuracy: 0–5 / 10 / 15 tons, 0.01 tons digital display
Temperature Range: 0–300℃ / 500℃, multi-stage heating or cooling program
Vacuum Capability: -0.1MPa for vacuum pressing
Flat Plate & Working Space: 120×120mm / 200×200mm / 300×300mm; working space 55–70mm
Display Screen: 7-inch touch screen for precise control
Overall Dimensions & Weight: 400×450×700mm – 550×650×800mm; 160–420KG
Power Supply & Features: 220V/110V, 0.6–4.5KW; chrome-plated cylinder, integrated mainboard, high-speed steel mold, aluminum alloy handwheel, customized plunger with no oil leakage
- Model: PTP-600ZC/ZD/ZE
-
PTP-600 Series High-Temperature Hot Press 0-5/10/15 Tons – Touch Screen Lab Press 500℃Pressure Range & Accuracy: 0–5/10/15 tons, 0.01 tons digital display
Temperature Range & Accuracy: 0–300℃/500℃, 0.1℃, multi-stage heating or cooling program
Flat Plate & Working Space: 120×120mm / 200×200mm / 300×300mm; working space 55–65mm
Display Screen: 5-inch or 7-inch touch screen for precise control
Overall Dimensions & Weight: 250×230×380mm – 450×420×450mm; 55–185KG
Power Supply: 220V/110V, 0.6–4KW depending on model
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, high-speed steel molds, aluminum alloy handwheel, customized plunger with no oil leakage
- Model: PTP-600C/D/E
-

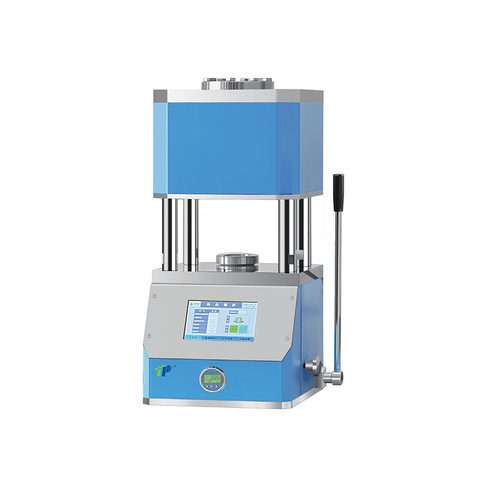

PTP-900L Manual High-Temperature Hot Press 0-5 Tons – Digital Control 1000℃ Lab PressPressure Range & Accuracy: 0–5 tons, 0.01 tons digital display
Temperature Range: 0–1000℃, multi-stage temperature control program
Pressure Method: Manual operation with ergonomic bottom-corner pressurizing device
Furnace & Cylinder: Φ60mm furnace diameter, 80mm cylinder stroke
Display Screen: 7-inch touch screen for precise control
Overall Dimensions & Weight: 400×380×780mm, 140KG
Construction & Materials: Chrome-plated oil cylinder, integrated mainboard, high-speed steel molds, aluminum alloy handwheel
- Model: PTP-900L
-
PC-FS Laboratory Hydraulic Press 0-60 Tons – High-Precision Digital Pellet PressPressure Range: 0–15T / 0–24T / 0–30T / 0–40T / 0–60T
Cylinder Diameter & Stroke: 80–150mm diameter, 0–30/40/50mm stroke
Display Accuracy & Screen: Digital pressure gauge, 0.01 tons
Working Space: 80×140mm – 180×210mm
Overall Dimensions & Weight: 260×175×405mm / 42KG – 400×250×560mm / 130KG
Construction & Materials: Integrated mainboard, chrome-plated oil cylinder, high-speed steel molds, aluminum alloy handwheel
Pressurizing Feature: Bottom-corner design for labor-saving operation
- Model: PTP-15FS/24FS/30FS/40FS/60FS
