Product Category

Chemical Analysis Instruments

This category includes a wide range of chemical analysis instruments used for the quantitative and qualitative determination of substances in laboratory samples. These products are commonly applied in food quality testing, agricultural and environmental analysis, pharmaceutical development, and academic research.


Available product lines include:

  • Kjeldahl Nitrogen Analyzers – for determining nitrogen and protein content in compliance with international standards.

  • Digestion Furnaces – provide controlled heat for sample digestion, supporting nitrogen and elemental testing workflows.

  • Fat Analyzers – used to measure fat content in food, feed, and agricultural products, including Soxhlet and rapid extraction systems.

  • Fiber Analyzers – designed for crude fiber and dietary fiber determination in grains, feed, and plant materials.

  • Gas Analyzers – suitable for detecting specific gases such as sulfur dioxide and other volatile compounds.

  • Ion Analyzers – instruments for analyzing ionic concentrations in water, soil, and chemical solutions, including automated cation exchange systems.

  • Near-Infrared Analyzers (NIR) – provide rapid, non-destructive analysis of moisture, protein, starch, and oil content in grains and food products.

  • Exhaust Gas Treatment Units – essential for neutralizing acid or toxic gases released during digestion or chemical reactions, ensuring laboratory safety and compliance.

  • Atomic Spectrometers & Elemental Analyzers – essential for precise detection and quantification of metal and non-metal elements in liquid or solid samples, supporting applications in environmental monitoring, food safety, pharmaceutical analysis, and materials research.


These instruments are essential tools for laboratories that require consistent performance, precise results, and compatibility with standard testing protocols.

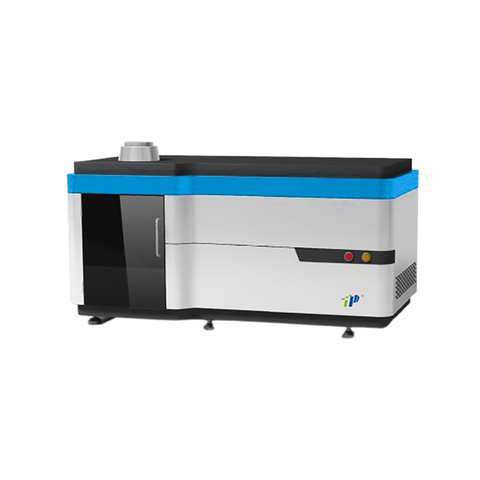

  • PICP-6810 Full Spectrum ICP-OES | High-Precision Trace Element Spectrometer for Liquids and Solids
    Wavelength Range: 165–900 nm (PICP-6810), up to 950 nm (A1/A2 models)
    Observation Method: Vertical (PICP-6810/A1), Bidirectional (A2)
    Resolution: <0.0068 nm @200 nm, Detector: CID (PICP-6810), CCD (A1), D (A2)
    Output Power: 800–1500 W, Argon Gas Consumption: ≤14 L/min
    Detection Limits: Most elements 1–10 ppb, Liquid content 0.01 ppm–several thousand ppm, Solid content 0.001%–70%
    Repeatability: RSD <1%, Stability: RSD <1.5% (2 hours)
    Features: Automatic injection, medium step grating prism cross dispersion, ultra-low stray light, fast multi-element analysis, high-precision wavelength calibration

    Model: PICP-6810 series
    Add to Basket
  • COD Thermostatic Heater 12/20 Hole COD Digestion System for Fast and Accurate Sample Analysis
    Number of Sample Holes: 12 / 20
    Heating Module Material: Aluminum Alloy with Aviation-grade Coating
    Temperature Range: Room Temperature – 300℃, Control Accuracy: ±1℃
    Timing Range: 0–99 Hours
    Power: 1.6kW / 2.6kW, Voltage: AC220V/50Hz
    Features: LCD display with PID control, uniform heating, corrosion-resistant stainless steel test tube rack, scheduled shutdown and alarm

    Model: PR Series
    Add to Basket
  • PRXJ-2W-60A Fully Automatic Graphite Digestion Platform for Laboratory Sample Pre-Treatment and Wet Digestion
    PRXJ-2W-60A Fully Automatic Graphite Digestion Platform for Laboratory Sample Pre-Treatment
    Temperature control range RT+5℃-300℃ with ±1℃ accuracy, 60-segment programmed or single-point heating modes
    Equipped with 2 independent graphite digestion units for uniform heating and stable performance
    Processes 1-60 samples per batch with 8 independent reagent channels and ultrasonic volume setting (50, 75, 100ml)
    Rotating oscillation mixing up to 300 rpm with 20mm amplitude for thorough sample blending
    Anti-corrosion design with acid mist containment, fume hood, and anti-condensation system for safe operation
    Operating voltage AC220V/50Hz, heating power 2KW+2KW, dimensions 65010201400mm

    Model: PRXJ-2W-60A
    Add to Basket
  • PRX Series Graphite and Aluminum Alloy Laboratory Digestion Furnace for Kjeldahl Nitrogen and Chemical Analysis
    PRX Series Graphite and Aluminum Alloy Digestion Furnace for Laboratory Sample Analysis
    High-density graphite heating module up to 550°C, aluminum alloy module up to 450°C, uniform heating with ±1°C accuracy
    5.5-inch color touch screen with 1-40 segment program heating and single point heating modes
    Supports 10, 15, 20, or 40 sample holes, recipe management for 9 programs, scheduled shutdown 1–999 minutes
    Heating rate 8–15°C/min, solid-state relay control with anti-interference and power outage restart function
    Equipped with over-temperature, over-pressure, and over-current protection for safe operation
    Operating voltage AC220V/50Hz, heating power 1.4–5.6KW depending on model, net weight 18–42kg

    Model: PRX-S/L Series
    Add to Basket
  • KDN Series Laboratory Digestion Furnace with Infrared Heating for Food, Environmental, and Pharmaceutical Analysis
    KDN Series Digestion Furnace for Laboratory Sample Analysis
    Temperature control range: room temperature to 600°C with ±2°C accuracy
    Infrared heating with air conduction, fast heating rate 30°C/min, digital temperature control
    Multiple sample digestion options: 4, 8, 12, or 20 tubes per batch, tube capacity 300ml
    Batch digestion time 60–90 minutes depending on sample size
    Built-in protections against overvoltage, overcurrent, and overheating, double-layer insulation
    Compact, corrosion-resistant stainless steel workbench with plastic-sprayed steel chassis, easy and safe to operate

    Model: KDN-04C / 08C / 20C
    Add to Basket
  • ZDDN Sulfur Dioxide Analyzer for Solid and Liquid Samples with Automatic Distillation
    ZDDN Sulfur Dioxide (SO₂) Analyzer for Solid and Liquid Samples
    Analysis range 0.1–50 mg with RSD ≤1%, solid sample ≤10g, liquid sample ≤20ml
    7-inch color touchscreen with level 3 authority management and easy operation
    Automatic reagent addition, distillation, nitrogen blowing, and automatic shutdown after 60 minutes
    Distillation time adjustable 0–9990 s, nitrogen flow 60–600 ml/min, nitrogen pressure ≤0.1 Mpa
    Safety features include transparent safety door, safety door alarm, leakage protection, and over-temperature protection
    Operating voltage AC220V/50Hz, heating power 2000W, dimensions 500×460×710 mm, net weight 26 kg

    Model: ZDDN-9830S
    Add to Basket
  • ZDDN-9830A HF Semi-Automatic Kjeldahl Analyzer for Fertilizer Nitrogen and Protein Testing
    ZDDN-9830A HF Semi-Automatic Kjeldahl Analyzer for Fertilizer Nitrogen and Protein Testing
    Analysis range 0.1–240 mgN with recovery rate 99–101% and RSD ≤0.5%
    10-inch color LCD touchscreen, stores up to 1 million data sets, built-in protein coefficient lookup table
    Automatic calculation of titration results, manual/automatic digestion tube discharge, safe alkali addition 0–99 seconds
    Sample analysis time 4–8 min, distillation time adjustable 10–9990 s, automatic shutdown after 60 minutes
    Integrated 5.7 cm thermal printer, communication interface 232/Cooling water/Reagent barrel level
    Host size: 500 × 460 × 710 mm, operating voltage AC 220V/50Hz, heating power 2000W

    Model: ZDDN-9830A
    Add to Basket
  • ZDDN-9870 HF Fully Automatic Kjeldahl Analyzer for Chemical and Compound Fertilizer Nitrogen and Protein Testing
    ZDDN-9870 HF Fully Automatic Kjeldahl Analyzer for Fertilizer Nitrogen and Protein Testing
    Analysis range 0.1–240 mgN with recovery rate 99–101% and RSD ≤0.5%
    7-inch color LCD touchscreen, stores up to 1 million data sets, built-in protein coefficient calculation
    Automatic titration and distillation, adjustable titration speed 0.05–1.0 ml/s, minimum titration volume 0.2 μL/step
    Sample analysis time 4–8 min, safe alkali addition 0–99 seconds, automatic shutdown after 60 minutes
    Integrated 5.7 cm thermal printer for instant printing, energy-saving operation
    Host size: 500 × 460 × 710 mm, operating voltage AC 220V/50Hz, heating power 2000W

    Model: ZDDN-9870
    Add to Basket
  • ZDDN-9870A/B HF Fully Automatic Kjeldahl Analyzer for Fertilizer Nitrogen and Protein Testing with Special Operating System
    ZDDN-9870A/B HF Fully Automatic Kjeldahl Analyzer with special operating system for chemical and compound fertilizer analysis
    Analysis range 0.1–240 mgN with recovery rate 99–101% and RSD ≤0.5%
    10-inch color LCD touchscreen, Windows 10 system with 27-inch computer, supports 1 million data storage and built-in protein coefficient calculation
    Automatic titration and distillation, internal standard titrant calibration, alkali pipeline cleaning, and sample weighing data automatic upload
    Distillation time and titration speed freely adjustable, standard/drip while steaming titration mode, safe alkali addition 0–99 seconds
    Energy-saving built-in refrigeration system (-5℃ to 30℃), automatic shutdown after 60 minutes, circulation pump flow 10L/min
    Integrated 5.7cm thermal printer, multiple communication interfaces including 232, Ethernet, computer, electronic balance, and reagent level monitoring

    Model: ZDDN-9870A/B
    Add to Basket
  • ZDDN-8900 Fully Automatic 40-Sample Kjeldahl Nitrogen and Protein Analyzer for High-Throughput Lab Testing
    ZDDN-8900 Fully Automatic Kjeldahl Analyzer with 40-sample autosampler for high-throughput nitrogen and protein analysis
    Analysis range 0.1–240 mgN with recovery rate 99–101% and RSD ≤0.5%
    10-inch color LCD touchscreen with 1 million data storage capacity and built-in protein coefficient calculation
    Automatic titration and distillation, alkali pipeline cleaning, and sample weighing data upload for high efficiency
    Distillation time and titration speed freely adjustable, standard/drip while steaming titration mode
    Energy-saving built-in refrigeration system, safe alkali addition, automatic shutdown after 60 minutes
    Integrated printing, communication interfaces include 232, Ethernet, computer, electronic balance, and reagent level monitoring

    Model: ZDDN-8900
    Add to Basket
