40X-400X / 40X-630X magnification, trinocular 45° inclined viewing tube with interpupillary distance 55-75mm
Wide-field WF10X/18mm eyepiece, unstressed plan objectives PL4X, PL10X, PL25X, PL40X(Spring), PL63X(Spring)
Built-in analyzer for normal and polarized light observation, rotatable Bertrand lens, λ/λ/4 and quartz wedge compensators
Coaxial coarse & fine focus, coarse range 26mm, fine graduation 0.002mm
Rotatable stage 360° with grid and locking unit, circle diameter 160mm
LED transmitted illumination, 3W adjustable brightness, polarized condenser NA 0.85 with adjustable aperture
Package includes foam and carton protection


TH-PG3230 Transmitted & Reflected Polarizing Microscope, trinocular inclined 30°, 100% light transmission for observation and photography
Infinity strain-free plan achromatic objectives, magnification 5X–100X, spring-loaded 40X–100X, no cover glass
Wide-field WF10X eyepiece, dividing eyepiece 0.1mm/Div, coaxial coarse/fine focus, 2μm minimum division, tension adjustable
Quadruple or optional quintuple nosepiece, rotatable polarizer and analyzer 0–360°, integrated field and aperture diaphragm
Rotatable stage 360° with 1° increments, vertical movement up to 30mm, minimum retardation resolution 6′
Illumination: 6V 30W halogen, brightness adjustable, reflected and transmitted light with Bertrand lens, λ/λ/4 and quartz wedge compensators
Optional CCD adapter 0.4X/0.5X, camera USB/HDMI output, CANON/NIKON digital camera adapter

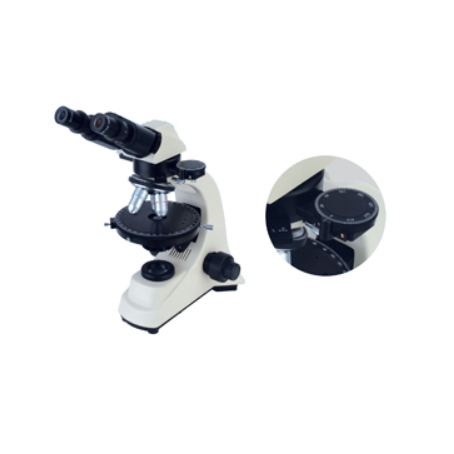

Viewing Head: Binocular observation head with wide angle eyepiece WF10X/18mm
Objectives: Infinity achromatic objectives 4X, 10X, 40X (optional: 20X, 80X)
Stage: Double-deck mechanical stage, 150×140mm, travel range 75×50mm
Focus: Coaxial coarse and fine focusing mechanism
Illumination: Vertical reflected light system, 6V/20W halogen lamp, adjustable brightness
Filters: Blue, green, yellow, frosted glass film included
Optional: Polarising device and WF10X eyepiece with scale


Viewing Head: Hinged Binocular Head
Goggles:
Flat Field Eyepiece PL10X-18mm
Flat Field Eyepiece PL10X-18mm with Cross Section
Converter: Four-hole converter for internal positioning
Objective Lens: Infinity Stressless Flat Field Objective ∞ 4X/0.1, 10X/0.25, 40X/0.65 (with spring), 60X/0.8 (with spring)
Polarisation Detectors: 360º rotatable deflector set (modular, lockable)
Borescope: Built-in centre-adjustable Borescope
Optical Range Compensator: λ test plate (Class I red), 1/4 λ test plate, quartz wedge test plate (Class I-IV)
Spotting scopes: N.A. 1.25 Abbe-type spotting scope (unstressed) with variable light bar and filter holder
Lighting System: Halogen lamp 6V/20W, AC85-230V. light adjustable
