Shaker Accessories for PK Series
Includes dish trays with non-slip mats in various sizes (24×21.5 cm, 28×28 cm, 30×23 cm, 30×28.5 cm)
Universal attachments and lengthways roller attachments for different shaker models
Fixing clips for 25 mL, 50 mL, 100 mL, 200/250 mL, and 500 mL flasks
Connect sticks for multiple layer shaker configurations
Compatible with PK-O, PK-L, PK-R, and PK-D series shakers
Materials: durable, non-slip, and corrosion-resistant


Tilt / Rocking Angle: 7°
Max Load Capacity: 3 kg
Speed Range: 0-80 rpm (Dial Display)
Motor: DC, 16W input / 10W output
Dimensions: 270 × 330 × 130 mm, Weight: 2.7 kg
Power Supply: AC 100-240V, 50/60Hz, 20W

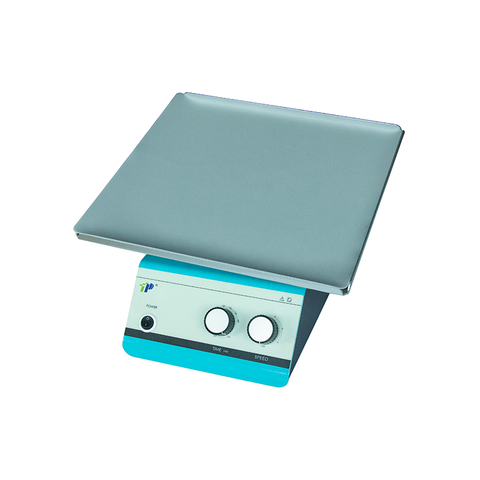

Type：PRCK3D-2
Mixing method: 3D rolling
Mixing angle :8 degrees
Maximum load capacity : 2KG
Speed range: 5-80RPM
Timing range: 0-180MIN
Operation: scale
Standard fixture: flat tray (rubber pad)
Fixture size: 320 * 320MM
Optional fixtures: deep hole plate/culture plate fixture/EVA shaking bottle fixture/double-layer flat tray/tower shaped rubber pad flat tray/spring fixed flat tray

Tilt / Rocking Angle: 7°
Max Load Capacity: 3 kg
Speed Range: 10-80 rpm (LED Display)
Timer: 1 min – 19 h 59 min (LED Display)
Motor: DC, 16W input / 10W output
Dimensions: 270 × 330 × 130 mm, Weight: 2.7 kg, Power Supply: AC 100-240V, 50/60Hz, 20W


Tilt / Rocking Angle: 9°
Max Load Capacity: 5 kg
Speed Range: 10-70 rpm (LCD Display)
Timer: 1 min – 19 h 59 min (LCD Display)
Motor: DC, 40W input / 24W output
Dimensions: 360 × 430 × 106 mm, Weight: 9 kg, Power Supply: AC 100-240V, 50/60Hz, 50W


Control Mode: Microcomputer Intelligent PID Control
Display: LED Digital Display
Oscillation Mode: Rotary / Reciprocating / Swing / 3D Motion (model-dependent)
Oscillation Amplitude: 25–30 mm or Tilt Angle 3–15° (model-dependent)
Speed Range: 15–240 rpm (±2 rpm accuracy)
Tray Size: 320 × 265 mm, 1 tray
Max Loading Capacity: 5 kg (including jig)
Power Supply: AC 90–260 V, 50–60 Hz

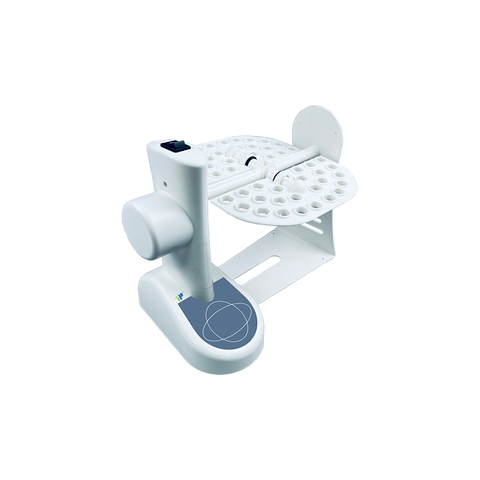

Speed: 20rpm fixed (PTM20F) / 10~40rpm adjustable (PTM40)
Mixing Modes: Rotation, shaking, and angle mixing (20°~99° adjustable for PTM40)
Tube Compatibility: 0.5 / 1.5 / 2 / 5 / 7 / 10 / 15 / 50 mL centrifuge tubes
Timing Range: 1s~999min or continuous (PTM40)
Dimensions / Weight: 240×140×210 mm / 1.2 kg
Power Supply: 100~240V, 50/60Hz


Mixing Method: Gentle three-dimensional circular rotation
Speed Range: Fixed 20 rpm or adjustable 0–27 rpm
Tray Size: 234 × 168 mm
Max Load Capacity: 2 kg
Motor Type: Brushless motor for stable operation
Power Supply: 100–240V, 50/60Hz (battery model optional)
Dimensions / Weight: 220 × 176 × 165 mm / 1.7 kg
