Horizontal gel electrophoresis systems are designed for efficient separation of DNA, RNA, and proteins in a horizontal gel format. Featuring durable gel trays, uniform electric field distribution, and easy sample loading, these systems ensure high-resolution results. Ideal for molecular biology, genetic research, and educational labs, they provide reliable performance for routine and advanced electrophoresis applications.
Gel area: 220 × 85 mm Cooling device: Not required Compact and lightweight design (3.0 kg) Dimensions: 380 × 230 × 116 mm Suitable for isoenzyme isoelectric focusing electrophoresis No need for high-voltage power supply Ideal for seed purity testing and classroom teaching

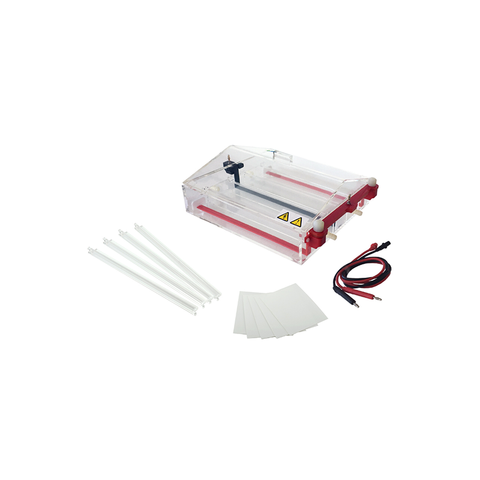

Bridge size: 66×250 mm and 82×250 mm Buffer volume: ~560 ml Sample capacity: 96 samples per run Fast electrophoresis: complete within 15 minutes Dimension: 318×175×65 mm Net weight: 1.0 kg Auto shut-off when lid is removed

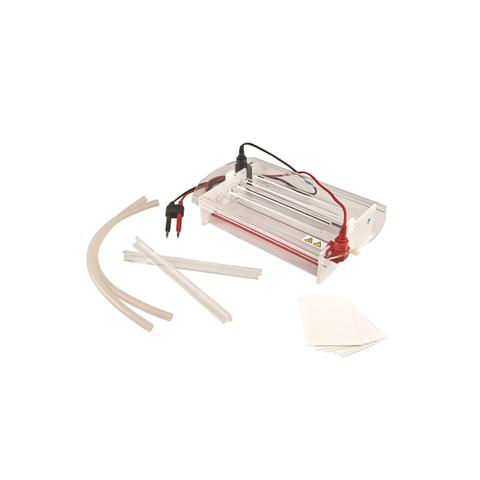

Double-bridge electrophoresis design, bridge sizes: 70×250mm×2, 90×250mm×2 Buffer volume: ~1000 ml Adjustable rod positions for different electrophoretic distances Built-in cooling device for constant temperature operation Unfolded electrodes for easy maintenance and replacement Auto-switch-off when lid is removed Compact size: 350×260×65 mm, Net weight: 1.6 kg

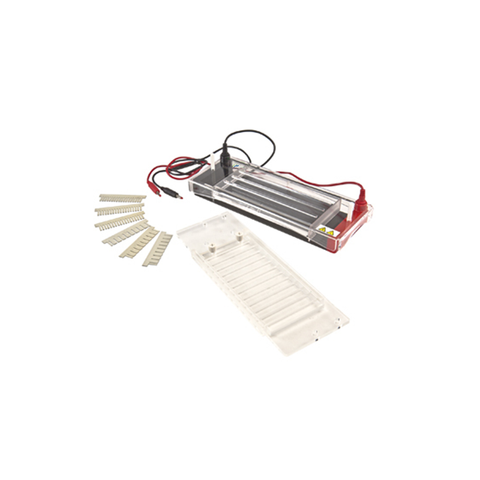

Bridge Size: 66×250 mm; 82×250 mm Buffer Volume: ~560 ml Dimension (L×W×H): 318×175×65 mm Net Weight: 1.0 kg Cooling device for constant temperature electrophoresis Adjustable rod to accommodate different electrophoretic distances Auto-switch-off when lid is removed

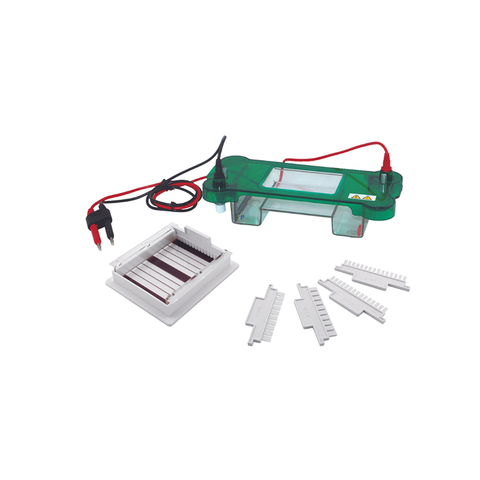

Gel Size: 48×75 mm Sample Volume: 3, 5, 9 wells Buffer Volume: ~150 ml Dimensions (L×W×H): 250×90×50 mm Net Weight: 0.4 kg Transparent top lid prevents evaporation and ensures safety Auto switch-off function when lid is removed

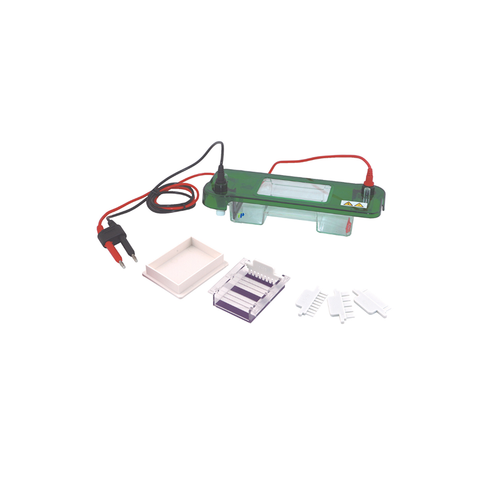

Gel Size: 78 × 100 mm Sample Volume: 10–15 samples Buffer Volume: ~400 ml Dimension (L×W×H): 365 × 105 × 55 mm Net Weight: 0.6 kg Features: Transparent top lid, auto-switch-off when lid is removed, unfolded electrodes for easy maintenance Design: Horizontal gel electrophoresis with stable pH and efficient cooling

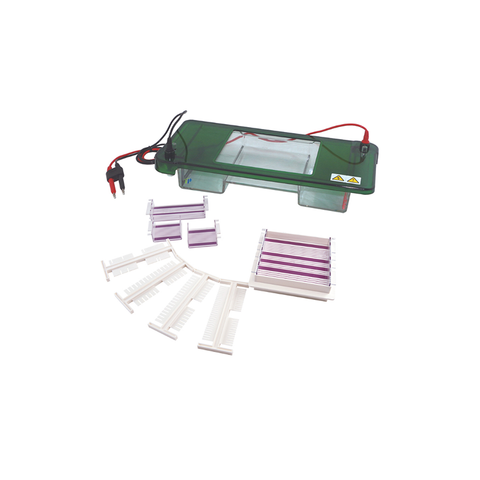

Gel size: 60×60 mm, 120×60 mm, 60×120 mm, 120×120 mm Sample volume: 3–25 samples Buffer volume: ~550 ml Dimension (L×W×H): 300×160×75 mm Net weight: 1.1 kg Features: Unfolded electrodes for easy maintenance, transparent top lid for safety, auto-switch-off when lid is removed

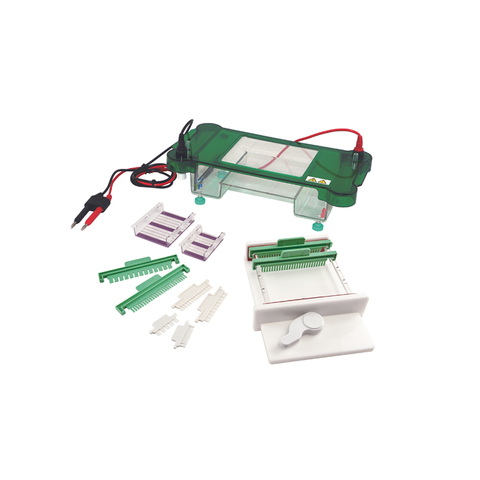

Gel Sizes: 140×140 mm, 140×70 mm, 70×70 mm Sample Volume: 1–29 wells Buffer Volume: ~900 ml Dimensions (L×W×H): 390×187×63 mm Net Weight: 2.0 kg Features: Transparent top lid with auto-switch-off, unfolded electrodes for easy maintenance, sample tray with background color for easy loading
Gel size: 130×130 mm, 78×100 mm, 48×75 mm Sample volume: 3–26 wells Buffer volume: ~600 ml Dimension (L×W×H): 305×152×80 mm Net weight: 1.7 kg Features: Unfolded electrodes for easy maintenance, fluorescent tray for UV observation, special gel casting to prevent leakage, transparent top lid with auto switch-off

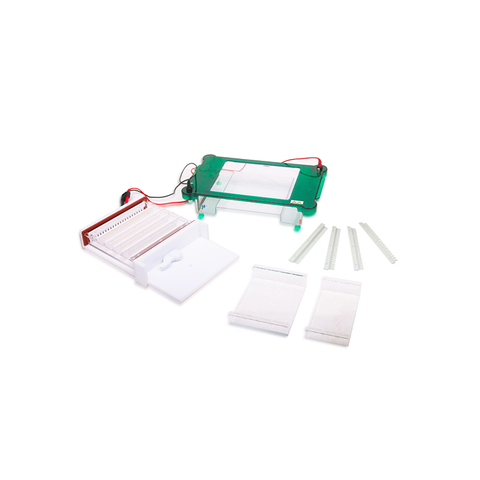

Gel Size Options: 200×200 mm, 200×150 mm, 200×100 mm Sample Wells: 17, 22, 36, 44 Buffer Volume: ~1800 ml Dimension (L×W×H): 397×230×93 mm Net Weight: 3.3 kg Features: Unfolded electrodes for easy maintenance, anti-leak gel casting, transparent top lid with auto-switch-off safety
