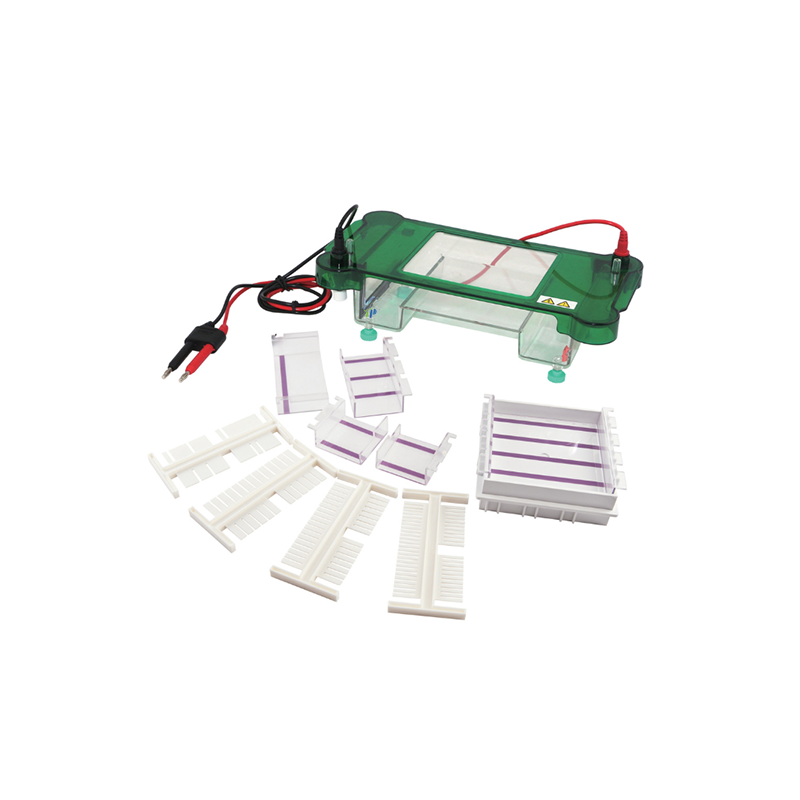

TP-SPCT Horizontal Gel Electrophoresis System – Multi-Sample Tank with Safety Lid and Stable Buffer
Gel size: 60×60 mm, 120×60 mm, 60×120 mm, 120×120 mm
Sample volume: 3–25 samples
Buffer volume: ~550 ml
Dimension (L×W×H): 300×160×75 mm
Net weight: 1.1 kg
Features: Unfolded electrodes for easy maintenance, transparent top lid for safety, auto-switch-off when lid is removed
Sample volume: 3–25 samples
Buffer volume: ~550 ml
Dimension (L×W×H): 300×160×75 mm
Net weight: 1.1 kg
Features: Unfolded electrodes for easy maintenance, transparent top lid for safety, auto-switch-off when lid is removed
| Quantity: | |
|---|---|
-
TP-SPCT
-
TOP
Technical specifications
Gel Size（W×L）:60×60mm; 120×60mm; 60×120mm 120×120mm.
Sample volume: 3, 6,8,11,13, 18 ,25.
Buffer Volume: ~550ml.
Dimension（L×W×H）:300×160×75（mm）
Net weight: 1.1（kg）
Characteristic feature
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Unfolded electrodes make repair and parts replacement easy and quick.

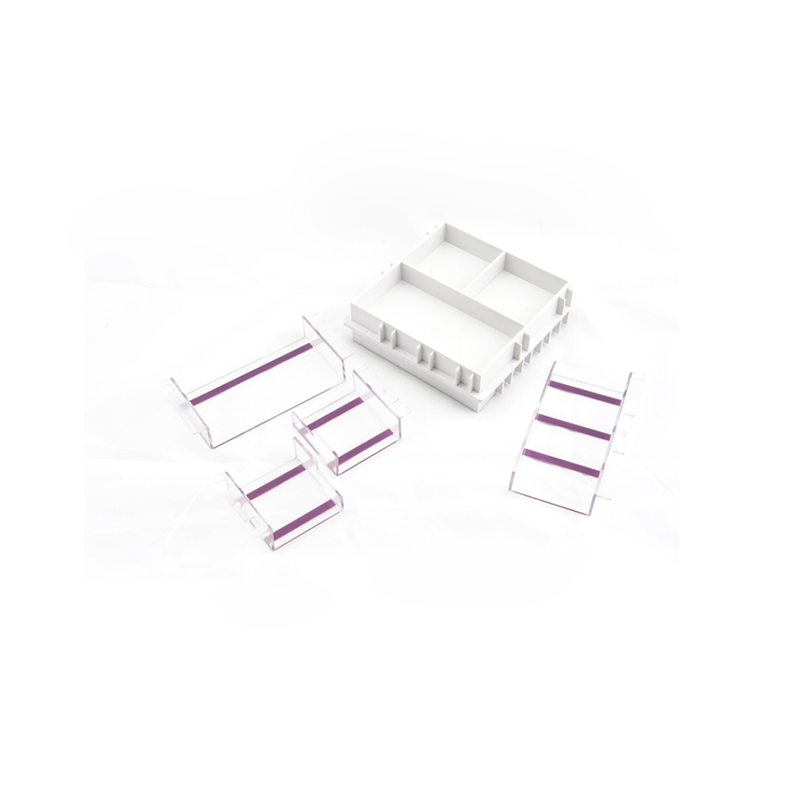

• With the sample background color design on the tray, convenient to adding the sample.
• The transparent top lid effectively prevents liquid in the cell from volatilizing and avoids electricity leakage.
• Auto-switch-off when the lid is removed.
Technical specifications
Gel Size（W×L）:60×60mm; 120×60mm; 60×120mm 120×120mm.
Sample volume: 3, 6,8,11,13, 18 ,25.
Buffer Volume: ~550ml.
Dimension（L×W×H）:300×160×75（mm）
Net weight: 1.1（kg）
Characteristic feature
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Unfolded electrodes make repair and parts replacement easy and quick.
• With the sample background color design on the tray, convenient to adding the sample.
• The transparent top lid effectively prevents liquid in the cell from volatilizing and avoids electricity leakage.
• Auto-switch-off when the lid is removed.
