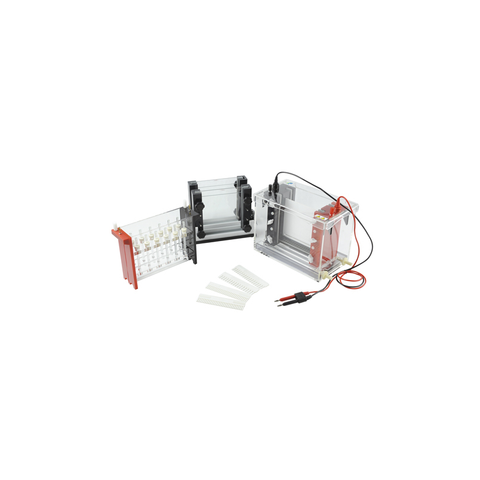

Two-Dimensional Electrophoresis System
Combines isoelectric focusing (1st D) and SDS-PAGE (2nd D) for 2D protein separation
Independent 1st D and 2nd D electrophoresis tanks
Cooling environment maintained with water circulation
Easy-to-open lid with safety auto-switch-off function
No high-current power supply required
Suitable for analyzing complex protein samples with 2D distribution

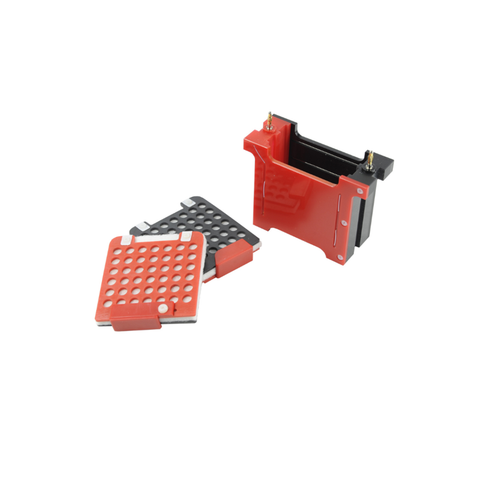

Compatible Module: Works with TP-SCZ2+ buffer tank
Transmission Area: 100 × 100 mm
Dimension (L×W×H): 139 × 55 × 105 mm
Net Weight: 0.4 kg
Compact and lightweight design for easy integration

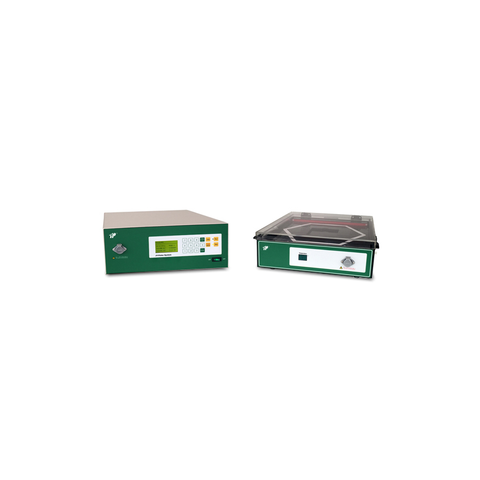

Type: Pulsed-Field Gel Electrophoresis (PFGE) System
DNA Size Separation: 100 bp–6 Mb, suitable for large genomic DNA and chromosomal DNA
Voltage Gradient: Up to 9.5 V/cm, increment 0.1 V/cm; Maximum current 0.5 A, maximum power 300 W
Pulse Settings: Pulse width 1–9999 s or programmable; Pulse angle ±120°/±180°, field reversal supported
Temperature Control: 10°C–30°C, buffer refrigeration circulation pump, direct buffer temperature detection ±0.1°C
Control & Safety: Dual core microprocessor, program editing, automatic connection, open cover power-off protection, overload/no-load protection
Modules: Separate power supply, pulsed-field electrode tank with multi-sub-electrodes, and constant temperature circulator

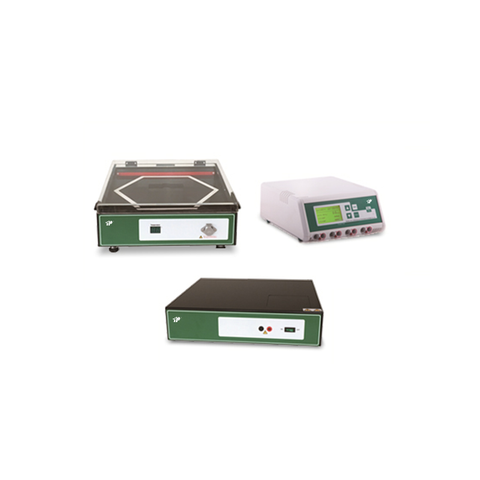

Type: Pulsed-Field Gel Electrophoresis (PFGE) System
Voltage Gradient: ±1.0 V/cm to ±9.5 V/cm
Pulse Width Range: Fixed 1–99999 s; Incremental 0.01–99.99 s, multiple modes for different DNA fragments
DNA Size Separation: 100 bp–6 Mb, suitable for genomic DNA, chromosomal DNA, large fragment libraries
Temperature Control: Direct buffer temperature detection, tolerance < ±0.1°C
Program & Data Management: Classic & free database, pause/recovery, digital key settings, record experiment data and power-off recovery
Electrode: Molding platinum frame, Φ0.5 mm, deformation-resistant, long service life

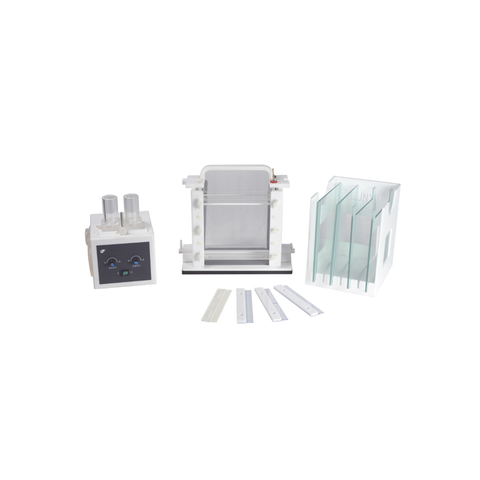

Glass Plate / Gel Size: 200×200 mm / 162×175 mm; Gel thickness: 1.0 mm, 1–2 gels per run
Sample Wells: 1, 2, 15, 21, or 35 wells (for 1.0 mm gels)
Buffer Volume: up to 10 L with built-in circulating pump for ±5°C uniformity
Output: Constant Voltage / Current / Power, Max 600V / 500mA / 300W
Timer & Storage: 1 min–99 hr 59 min; stores 10 common electrophoresis methods
Safety Features: Side-open lid with auto power-off, buffer height sensors, over-voltage & overload protection, temperature probe safety sheath
Display: Shows all set parameters and output status simultaneously
