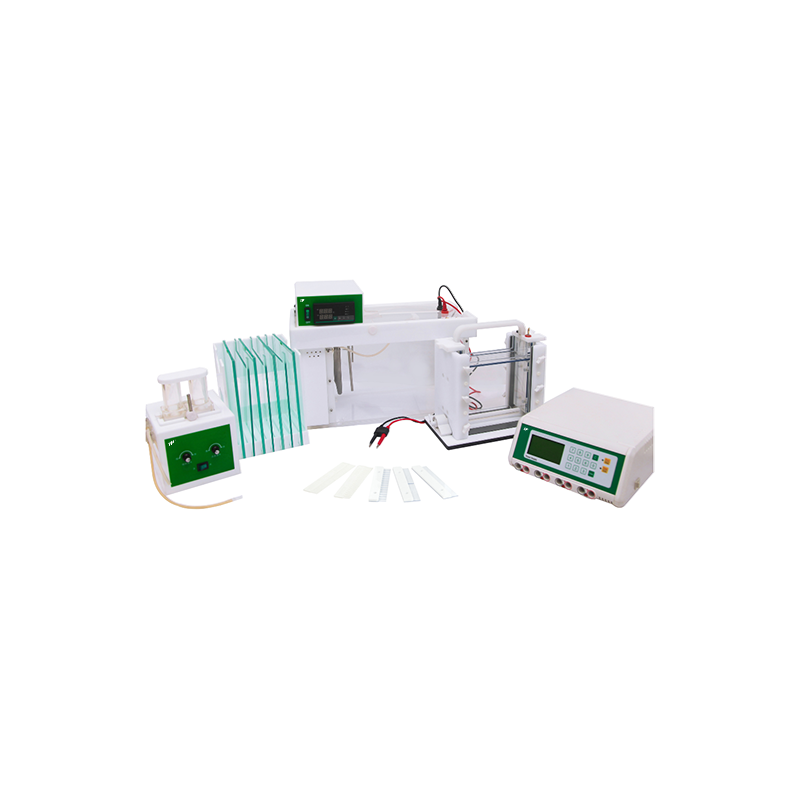

TP-TD331A Vertical Gel Electrophoresis System with Temperature-Controlled Buffer Circulation, 600V/300W
Glass Plate / Gel Size: 200×200 mm / 162×175 mm; Gel thickness: 1.0 mm, 1–2 gels per run
Sample Wells: 1, 2, 15, 21, or 35 wells (for 1.0 mm gels)
Buffer Volume: up to 10 L with built-in circulating pump for ±5°C uniformity
Output: Constant Voltage / Current / Power, Max 600V / 500mA / 300W
Timer & Storage: 1 min–99 hr 59 min; stores 10 common electrophoresis methods
Safety Features: Side-open lid with auto power-off, buffer height sensors, over-voltage & overload protection, temperature probe safety sheath
Display: Shows all set parameters and output status simultaneously
Sample Wells: 1, 2, 15, 21, or 35 wells (for 1.0 mm gels)
Buffer Volume: up to 10 L with built-in circulating pump for ±5°C uniformity
Output: Constant Voltage / Current / Power, Max 600V / 500mA / 300W
Timer & Storage: 1 min–99 hr 59 min; stores 10 common electrophoresis methods
Safety Features: Side-open lid with auto power-off, buffer height sensors, over-voltage & overload protection, temperature probe safety sheath
Display: Shows all set parameters and output status simultaneously
| Quantity: | |
|---|---|
-
TP-TD331A
-
TOP
Technical specifications
Glass plate size（W×L）:200×200 mm
Gel Size（W×L）:162×175 mm
Gel thickness: 1.0（mm）
Gel amount:1～2（pieces）
Sample volume:（1.0mm）1、2、15、21、35wells
Buffer Volume:～10（L）
Dimension（L×W×H）:458×230×285（mm）
Net weight: 23（kg）
Characteristic feature
• With the gel making device of normal position，don’t should to moving the glass plate from the process of making gel to electrophoresis.
• With the Gradient gel electric generator, the flow rate can be adjusted.
• Built-in miniature buffer liquid circulating pump, a buffer solution temperature uniformity can be achieved ±5℃.
• Side-open safety lid, easy to loading the sample, automatially cut off the electric field when open the lid.
• Type of Output: Constant-Voltage, Current or Power
• Max output: 600V/500mA/300W.
• With over-voltage, overload auto-detection and alarm function.
• Can simultaneously display all set parameters and output status.
• Insulating fire-retardant materials, injection molding using the mold shell, advanced technology.
• Store 10 most common electrophoresis ways.
• Timer Range: 1min~99hr, 59min
• The temperature control probe with a safety sheath, protection of the probe does not damage.
• With the buffer liquid height sensors，protection of the product does not damage because of the lack of buffer capacity.
Technical specifications
Glass plate size（W×L）:200×200 mm
Gel Size（W×L）:162×175 mm
Gel thickness: 1.0（mm）
Gel amount:1～2（pieces）
Sample volume:（1.0mm）1、2、15、21、35wells
Buffer Volume:～10（L）
Dimension（L×W×H）:458×230×285（mm）
Net weight: 23（kg）
Characteristic feature
• With the gel making device of normal position，don’t should to moving the glass plate from the process of making gel to electrophoresis.
• With the Gradient gel electric generator, the flow rate can be adjusted.
• Built-in miniature buffer liquid circulating pump, a buffer solution temperature uniformity can be achieved ±5℃.
• Side-open safety lid, easy to loading the sample, automatially cut off the electric field when open the lid.
• Type of Output: Constant-Voltage, Current or Power
• Max output: 600V/500mA/300W.
• With over-voltage, overload auto-detection and alarm function.
• Can simultaneously display all set parameters and output status.
• Insulating fire-retardant materials, injection molding using the mold shell, advanced technology.
• Store 10 most common electrophoresis ways.
• Timer Range: 1min~99hr, 59min
• The temperature control probe with a safety sheath, protection of the probe does not damage.
• With the buffer liquid height sensors，protection of the product does not damage because of the lack of buffer capacity.
