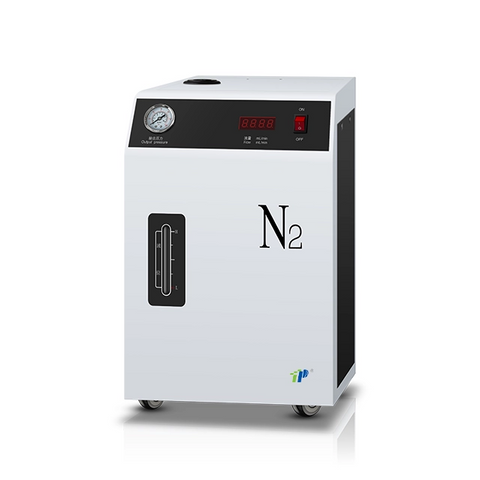

Laboratory Nitrogen Gas Generator PGN-1000 / PGN-2000, 99.99% Purity, 1–2 L/min Flow Rate, 220VGas type: High-purity Nitrogen, 99.99%
Output flow rate: 1000–2000 ml/min depending on model (PGN-1000 / PGN-2000)
Working pressure: 0.4 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 170–350 W
Noise level: <35 dB
External dimensions (L×W×H): 520×260×360 mm – 620×350×600 mm
Net weight: 24–32 kg
- Model: PNG-1000/2000
-

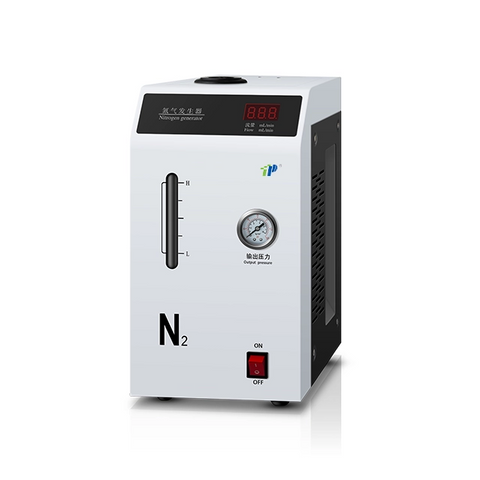

Laboratory Mini Nitrogen Gas Generator PGN-300 / PGN-500, 99.99% Purity, 300–500 ml/min Flow Rate, 220VGas type: High-purity Nitrogen, 99.99%
Output flow rate: 300–500 ml/min depending on model (PGN-300 / PGN-500)
Working pressure: 0.4 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 80–100 W
Noise level: <35 dB
External dimensions (L×W×H): 385×180×360 mm
Net weight: 14 kg
- Model: PNG-300/500
-

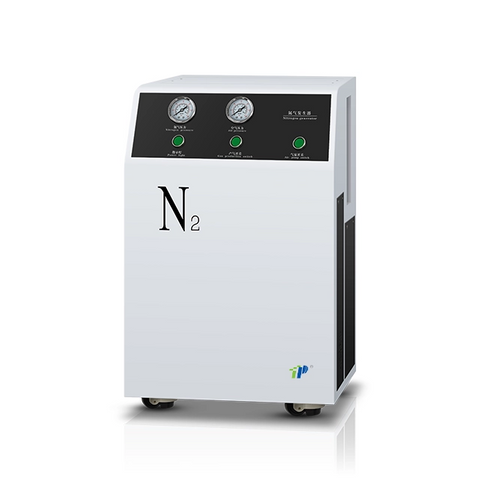

Laboratory Nitrogen Gas Generator PGN Series, High Purity 99.5–99.95%, 5–60 L/min Flow Rate, 220VGas type: High-purity Nitrogen, 99.50–99.95%
Output flow rate: 5–60 L/min depending on model (PGN-5L to PGN-60LB)
Working pressure: 0.4–0.75 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 550–1600W
Noise level: ≤52–60 dB
External dimensions (L×W×H): 465×235×360 mm to 1000×500×700 mm
Net weight: 45–150 kg
- Model: PNG-5L/10L/16L/20L/30L/30LB/40L/40LB/60L/60LB
-

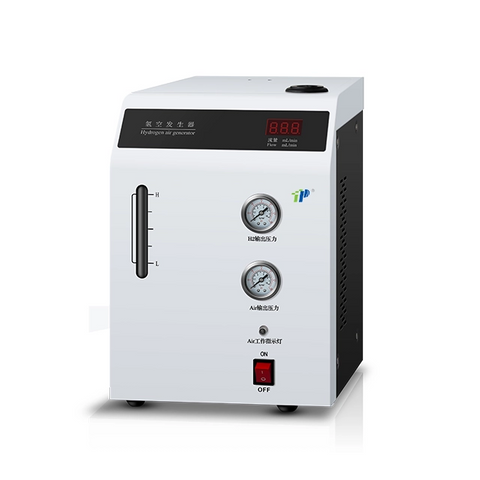

Laboratory Hydrogen-Air Integrated Gas Generator PNGA Series, 100% Hydrogen Purity, Oil-Free Air, 220VGas types: Hydrogen (100% purity) and Oil-Free Air (Grade 3)
Hydrogen flow rate: 0–300 ml/min (PNGA-300), 0–500 ml/min (PNGA-500)
Air flow rate: 0–2 L/min (PNGA-300), 0–5 L/min (PNGA-500)
Working pressure: Hydrogen 0.4 MPa, Air 0.4 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 230–300W
External dimensions (L×W×H): 520×280×400 mm
Net weight: 32–34 kg
- Model: PNGA-300/500
-

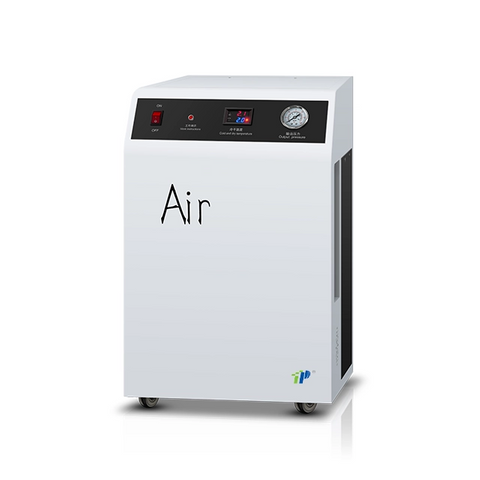

Laboratory Oil-Free Compressed Air Generator PAG Series, 3–20 L/min Output, Adjustable Pressure, 220VGas type: Oil-free Compressed Air, Three-Stage Purification
Output flow rate: 3–20 L/min depending on model (PAG-3L / PAG-5L / PAG-10L / PAG-20L)
Maximum working pressure: A Output 0–0.4 MPa, B Output 0–0.5 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 145–950W
Noise level: ≤42 dB
External dimensions (L×W×H): 470×260×380 mm to 700×360×600 mm
Net weight: 23–32 kg
- Model: PAG-3L/5L/10L/20L
-
Laboratory Hydrogen & Nitrogen/Air Integrated Generator PHGA-300/500, 100% H₂, Oil-Free Air, Adjustable Flow, 220VGas type: Integrated Hydrogen & Nitrogen/Air (H₂ 100% purity, Oil-free Air Grade 3)
Hydrogen output flow rate: 0–300 ml/min (PHGA-300), 0–500 ml/min (PHGA-500)
Air output flow rate: 0–3 L/min (PHGA-300), 0–5 L/min (PHGA-500)
Maximum working pressure: H₂ 0.4 MPa, Air 0.4 MPa
Power supply: 220V ±10%, 50Hz; Maximum power 230–280W
External dimensions (L×W×H): 520×280×400 mm
Net weight: 28–32 kg
- Model: PHGA-300/500
-

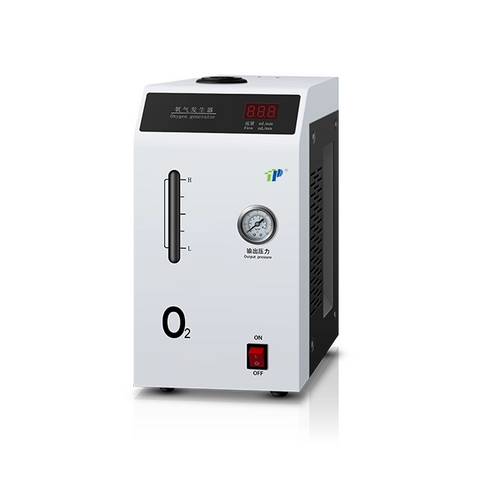

Laboratory Oxygen Generator 200ml–2000ml/min, 100% Pure O₂, Adjustable Pressure, 220VGas type: Oxygen (100% purity)
Output flow rate: 200 ml/min – 2000 ml/min (model dependent)
Maximum pressure: 0.35 MPa (customizable on request)
Power supply: 220V ±10%, 50Hz
Maximum power consumption: 150W – 1450W (depending on model)
Dimensions (L×W×H): 370×220×360 mm – 620×350×600 mm
Net weight: 28–90 kg (model dependent)
- Model: POG-200/300/600/800/1000/2000
-

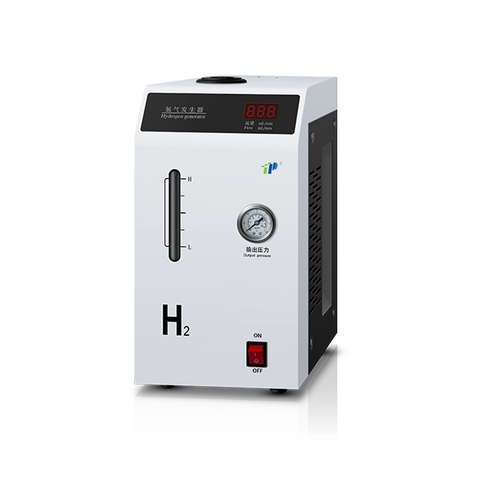

Hydrogen Generator with 100% Purity, 0.4 MPa Output, 300 ml/min – 10 L/min Flow RateHigh-purity hydrogen production: 100% purity
Output flow rate options: 300 ml/min up to 10 L/min (depending on model)
Output pressure: 0.4 MPa
Voltage: 220 V ±10%, 50 Hz
Maximum power: 150 W – 3600 W across different models
Dimensions: 385×200×380 mm to 800×550×660 mm depending on model
Weight: 13 kg – 98 kg depending on model
- Model: PHG-300/500/1000/2000/3000/5L/10L
