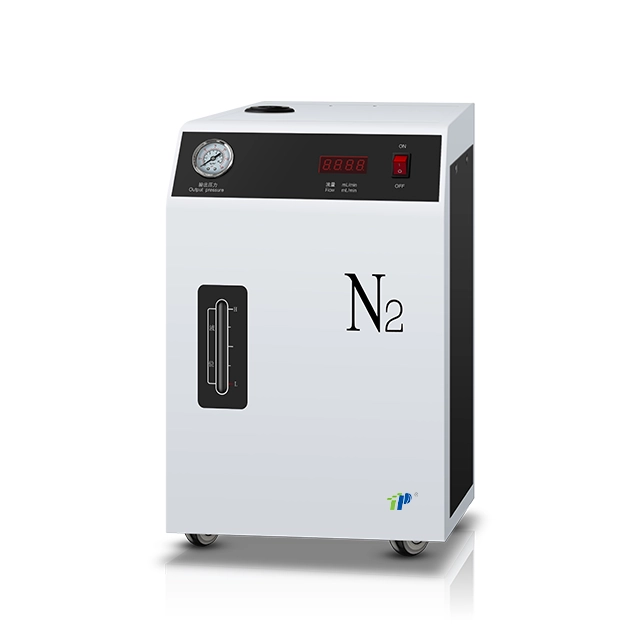

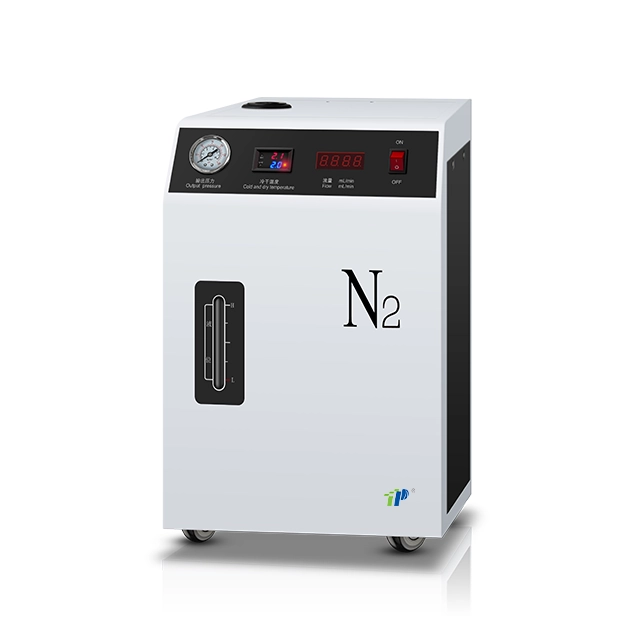

Laboratory Nitrogen Gas Generator PGN-1000 / PGN-2000, 99.99% Purity, 1–2 L/min Flow Rate, 220V
Gas type: High-purity Nitrogen, 99.99%
Output flow rate: 1000–2000 ml/min depending on model (PGN-1000 / PGN-2000)
Working pressure: 0.4 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 170–350 W
Noise level: <35 dB
External dimensions (L×W×H): 520×260×360 mm – 620×350×600 mm
Net weight: 24–32 kg
Output flow rate: 1000–2000 ml/min depending on model (PGN-1000 / PGN-2000)
Working pressure: 0.4 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 170–350 W
Noise level: <35 dB
External dimensions (L×W×H): 520×260×360 mm – 620×350×600 mm
Net weight: 24–32 kg
| Quantity: | |
|---|---|
-
PNG-1000/2000
-
TOP
Technical Parameters
Nitrogen Generator | ||
Product Model | PGN-1000 | PGN-2000 |
Voltage | 220V±10% ；50Hz | |
Maximum power | 170w | 350w |
Purity | 99.99% | |
Output flow rate | 1000ml/min | 2000ml/min |
Ambient conditions | Ambient temperature 0-45°C Relative humidity ≤85% No large amount of dust and corrosive gas pollution | |
Output pressure | 0.4Mpa | |
Noise | ＜35 | |
Weight | 24Kg | 32Kg |
Dimension(L×W×H) | 520mm×260mm×360mm | 620mm×350mm×600mm |
Technical Parameters
Nitrogen Generator | ||
Product Model | PGN-1000 | PGN-2000 |
Voltage | 220V±10% ；50Hz | |
Maximum power | 170w | 350w |
Purity | 99.99% | |
Output flow rate | 1000ml/min | 2000ml/min |
Ambient conditions | Ambient temperature 0-45°C Relative humidity ≤85% No large amount of dust and corrosive gas pollution | |
Output pressure | 0.4Mpa | |
Noise | ＜35 | |
Weight | 24Kg | 32Kg |
Dimension(L×W×H) | 520mm×260mm×360mm | 620mm×350mm×600mm |
