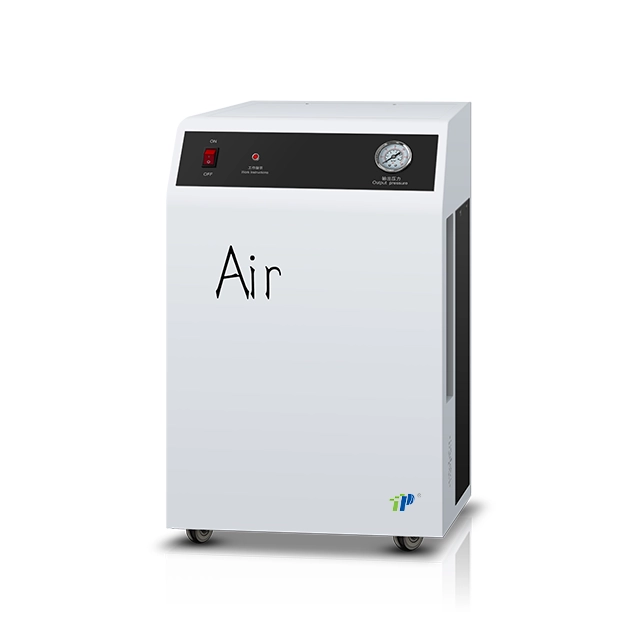

Laboratory Oil-Free Compressed Air Generator PAG Series, 3–20 L/min Output, Adjustable Pressure, 220V
Gas type: Oil-free Compressed Air, Three-Stage Purification
Output flow rate: 3–20 L/min depending on model (PAG-3L / PAG-5L / PAG-10L / PAG-20L)
Maximum working pressure: A Output 0–0.4 MPa, B Output 0–0.5 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 145–950W
Noise level: ≤42 dB
External dimensions (L×W×H): 470×260×380 mm to 700×360×600 mm
Net weight: 23–32 kg
Output flow rate: 3–20 L/min depending on model (PAG-3L / PAG-5L / PAG-10L / PAG-20L)
Maximum working pressure: A Output 0–0.4 MPa, B Output 0–0.5 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 145–950W
Noise level: ≤42 dB
External dimensions (L×W×H): 470×260×380 mm to 700×360×600 mm
Net weight: 23–32 kg
| Quantity: | |
|---|---|
-
PAG-3L/5L/10L/20L
-
TOP
Technical Parameters
Air generator | ||||
Product Model | PAG-3L | PAG-5L | PAG-10L | PAG-20L |
Voltage | 220V±10% ；50Hz | |||
Environmental conditions | Ambient temperature 0-45°C Relative humidity ≤85% No large amount of dust and corrosive gas pollution | |||
Air Purity | Oil-free three-stage purification | |||
Output Pressure | A Output 0-0.4Mpa B Output 0-0.5Mpa | |||
Noise | ≤42dB | |||
Output Flow Rate | 3L/min | 5L/min | 10L/min | 20L/min |
Maximum power | 145W | 175W | 750W | 950W |
Weight | 23Kg | 24Kg | 30Kg | 32Kg |
Dimension (L×W×H) | 470mm×260mm×380mm | 700mm×360mm×600mm | ||
Technical Parameters
Air generator | ||||
Product Model | PAG-3L | PAG-5L | PAG-10L | PAG-20L |
Voltage | 220V±10% ；50Hz | |||
Environmental conditions | Ambient temperature 0-45°C Relative humidity ≤85% No large amount of dust and corrosive gas pollution | |||
Air Purity | Oil-free three-stage purification | |||
Output Pressure | A Output 0-0.4Mpa B Output 0-0.5Mpa | |||
Noise | ≤42dB | |||
Output Flow Rate | 3L/min | 5L/min | 10L/min | 20L/min |
Maximum power | 145W | 175W | 750W | 950W |
Weight | 23Kg | 24Kg | 30Kg | 32Kg |
Dimension (L×W×H) | 470mm×260mm×380mm | 700mm×360mm×600mm | ||
