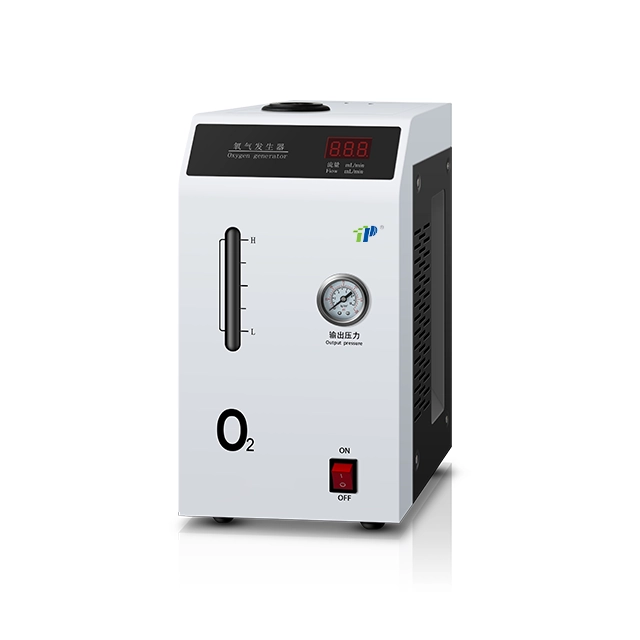

Laboratory Oxygen Generator 200ml–2000ml/min, 100% Pure O₂, Adjustable Pressure, 220V
Gas type: Oxygen (100% purity)
Output flow rate: 200 ml/min – 2000 ml/min (model dependent)
Maximum pressure: 0.35 MPa (customizable on request)
Power supply: 220V ±10%, 50Hz
Maximum power consumption: 150W – 1450W (depending on model)
Dimensions (L×W×H): 370×220×360 mm – 620×350×600 mm
Net weight: 28–90 kg (model dependent)
Output flow rate: 200 ml/min – 2000 ml/min (model dependent)
Maximum pressure: 0.35 MPa (customizable on request)
Power supply: 220V ±10%, 50Hz
Maximum power consumption: 150W – 1450W (depending on model)
Dimensions (L×W×H): 370×220×360 mm – 620×350×600 mm
Net weight: 28–90 kg (model dependent)
| Quantity: | |
|---|---|
-
POG-200/300/600/800/1000/2000
-
TOP
Technical Parameters
Oxygen generator | ||||||
Product Model | POG-200 | POG-300 | POG-600 | POG-800 | POG-1000 | POG-2000 |
Maximum power | 150W | 200W | 400W | 600W | 720W | 1450W |
Output Flow Rate | 200ml/min | 300ml/min | 600ml/min | 800ml/min | 1000ml/min | 2000ml/min |
Output pressure | 0.35Mpa (special case pressure must be customised) | |||||
Gas purity | 100.00 per cent | |||||
Voltage | 220V±10% 50Hz | |||||
Environmental conditions | Ambient temperature 0-45°C Relative humidity ≤85% No large amount of dust and corrosive gas pollution | |||||
Dimension(L×W×H) | 370mm×220mm×360mm | 520mm×260mm×360mm | 620mm×350mm×600mm | |||
Weight | 28Kg | 30Kg | 45Kg | 45Kg | 48Kg | 90Kg |
Technical Parameters
Oxygen generator | ||||||
Product Model | POG-200 | POG-300 | POG-600 | POG-800 | POG-1000 | POG-2000 |
Maximum power | 150W | 200W | 400W | 600W | 720W | 1450W |
Output Flow Rate | 200ml/min | 300ml/min | 600ml/min | 800ml/min | 1000ml/min | 2000ml/min |
Output pressure | 0.35Mpa (special case pressure must be customised) | |||||
Gas purity | 100.00 per cent | |||||
Voltage | 220V±10% 50Hz | |||||
Environmental conditions | Ambient temperature 0-45°C Relative humidity ≤85% No large amount of dust and corrosive gas pollution | |||||
Dimension(L×W×H) | 370mm×220mm×360mm | 520mm×260mm×360mm | 620mm×350mm×600mm | |||
Weight | 28Kg | 30Kg | 45Kg | 45Kg | 48Kg | 90Kg |
