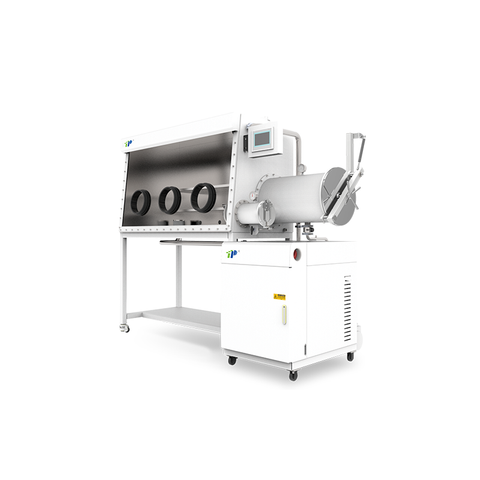

TSGB2000-S / TSGB2000-D Glove Box with Inert Gas Purification, Single & Double-Sided, ≤1ppm O₂/H₂O, HEPA Filter, PLC Touchscreen ControlStyle: Single-sided (TSGB2000-S) / Double-sided (TSGB2000-D)
Box Material: Stainless steel 1.4301, front panel: tempered glass or polycarbonate
Volume & Dimensions: 0.8m³ / 1200×750×900 mm (S), 1.1m³ / 1200×1000×900 mm (D)
Inert Atmosphere: ≤1ppm O₂ and H₂O, leakage rate <0.001 vol%/h
Purification System: GP-20 inert gas circulation, HEPA filter, fully automatic regenerable column
Control & Operation: Siemens PLC touchscreen, automatic pressure control, data logging
Accessories: Glove ports (220 mm), Butyl gloves (0.4/0.8 mm), vacuum pump, LED lighting
- Model: TSGB2000-S / TSGB2000-D

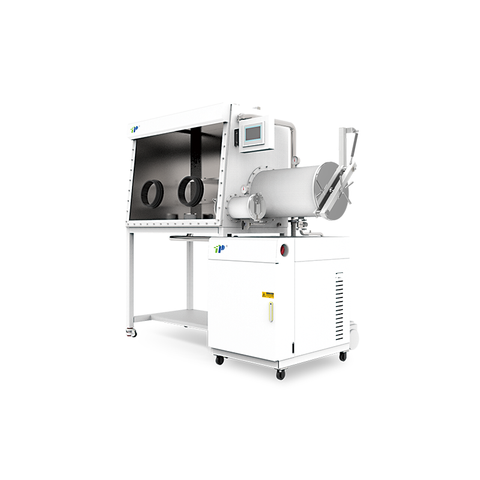

- TSGB2000-I Single-sided Glove Box with Inert Atmosphere ≤1ppm O₂ & H₂O, Stainless Steel Laboratory Glove Box with Integrated Purification SystemSingle-sided Glove Box
Atmosphere Control: O₂ & H₂O ≤1ppm, closed-loop circulation system
Box Material: Stainless steel 1.4301 (SUS 304), 3mm thickness
Dimensions & Volume: 1200×750×900 mm, 0.8 m³
Front Window: 8mm tempered glass or 10mm polycarbonate (optional)
Glove Ports & Gloves: 2 ports, Butyl rubber gloves, 0.4–0.8mm thickness
Accessories & Features: GP-20 inert gas purification, EDWARDS RV12 vacuum pump, HEPA filters, LED lighting, foot pedal, Siemens PLC touch screen
- Model: TSGB2000-I
- TSGB2000 Single & Double-sided Glove Box with Inert Atmosphere ≤1ppm O₂ & H₂O – Laboratory Closed-loop Purification SystemStyle: Single-sided (TSGB2000-S) / Double-sided (TSGB2000-D)
Inert atmosphere: ≤1ppm O₂ & H₂O, closed-loop circulation system
Box Material: Stainless steel 1.4301 (SUS 304), 3mm thickness
Box Dimensions: 1200×750×900mm (S) / 1200×1000×900mm (D), Volume: 0.8–1.1m³
Glove ports: Diameter 220mm, Butyl rubber gloves (0.4–0.8mm), O-ring seal
Purification system: GP-20 inert gas purifier, HEPA filter, oil-free vacuum pump
Additional features: LED lighting, automatic pressure control ±12mbar, Siemens PLC touch screen
- Model: TSGB2000-S / TSGB2000-D
-
TSGB1500-3S Single-sided Glove Box with Integrated Inert Gas Purification System for Lab & R&DSingle-sided Glove Box
Inert atmosphere: ≤1ppm O₂ & H₂O, Leakage rate <0.001 vol%/h
Box material: Stainless steel 304, Front window: tempered glass or polycarbonate
Internal volume: 1.0m³, Box dimensions: 1500×750×900 mm
Integrated GP-20 inert gas purification system, Closed-loop circulation, Oil-free vacuum
Control system: Siemens PLC touch screen, automatic data recording, foot pedal operation
Accessories included: Oxygen analyzer, Water analyzer, HEPA filter, Vacuum pump, Gloves
- Model: TSGB1500-3S
-
TSGB1800-2SS Single-sided Glove Box with ≤1ppm O₂/H₂O Inert Atmosphere, Integrated Purification System, Stainless Steel Laboratory GloveboxSingle-sided Glove Box
Stainless steel construction, 1500×750×900 mm, 1.2 m³ volume
Inert atmosphere: ≤1ppm O₂ and H₂O, closed-loop circulation purification
Front panel: 8 mm tempered glass or 10 mm polycarbonate (optional)
Gloves: Butyl rubber, 0.4–0.8 mm thick; glove ports diameter 220 mm
Integrated GP-20 gas purification system, EDWARDS RV12 vacuum pump
Leakage rate: <0.001 vol%/h; HEPA inlet/outlet filters; Siemens touch screen control
- Model: TSGB1800-2SS
-

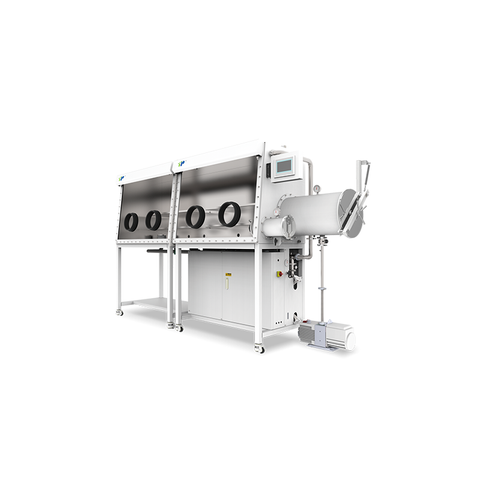

TSGB2400-2SI Single-Sided Stainless Steel Glove Box with Inert Gas Purification System for Controlled Atmosphere ApplicationsStyle: Single-sided glove box with closed-loop inert gas purification system
Inert Atmosphere: ≤1 ppm O₂ and H₂O with fully automatic regeneration
Box Material: Stainless steel 1.4301 (SUS 304), 3 mm thickness
Internal Volume: 1.6 m³, dimensions 2400 × 750 × 900 mm
Front Window: 8 mm tempered glass or 10 mm polycarbonate (optional)
Leak Rate: ≤0.001 vol%/h (tested with helium leak detector)
Vacuum Pump: EDWARDS RV12 rotary vane pump included
- Model: TSGB2400-2SI
