Ducted Fume Hoods
You are here: home » Products » Lab Fume Hoods » Ducted Fume Hoods

Product Category

Ducted Fume Hoods

Ducted Fume Hoods are high-performance ventilation systems designed to safely remove hazardous fumes, vapors, and airborne chemicals from the laboratory workspace. These hoods connect to an external exhaust system, allowing contaminated air to be effectively discharged outside the facility, ensuring maximum operator safety and environmental control.


Ideal for applications involving strong acids, organic solvents, or volatile chemicals, ducted fume hoods provide continuous airflow and superior containment. They are widely used in chemical laboratories, pharmaceutical manufacturing, academic research, petrochemical analysis, and quality control environments.


Key features of our ducted fume hoods include:

  • Durable construction with chemical-resistant materials such as epoxy-coated steel or stainless steel

  • Adjustable airflow systems to maintain consistent face velocity and safe working conditions

  • High-efficiency sash designs for ergonomic operation and energy savings

  • Optional base cabinets for storage of corrosive or flammable substances

  • Compliance with international safety standards such as ASHRAE 110 and EN 14175


Available in a range of sizes and configurations, our ducted fume hoods can be tailored to match your lab’s specific space and process requirements. Whether you're performing routine chemical procedures or high-risk experiments, these systems offer unmatched protection and long-term reliability.


Choose ducted fume hoods for uncompromising safety, robust performance, and clean air in demanding laboratory settings.


  • TS-FH1800 Laboratory Fume Hood with Stainless Steel Work Surface and Integrated Ventilation System
    Laboratory Fume Hood TS-FH1800 with integrated water, electricity, gas, and ventilation system
    Seamlessly welded cold-rolled steel structure with electrostatic spray finish for durability and smooth, dust-free surface
    Stainless steel veneer work table for corrosion resistance and easy cleaning
    Adjustable exhaust speed 0.25–0.45 m/s, inlet pressure >0.5 Pa, power supply AC 220V/50Hz, max power 1000W
    Working area 1600×660×680 mm, overall dimension 1760×740×1950 mm
    Equipped with 40W lamp for safe illumination
    Weight: 330 kg

    Model: TS-FH1800
    Add to Basket
  • TS-FH1500 Laboratory Fume Hood with Stainless Steel Work Surface and Integrated Ventilation System
    Laboratory Fume Hood TS-FH1500 with integrated water, electricity, gas, and ventilation system
    Seamlessly welded cold-rolled steel structure with electrostatic spray finish for durability and smooth, dust-free surface
    Stainless steel veneer work table for corrosion resistance and easy cleaning
    Adjustable exhaust speed 0.25–0.45 m/s, inlet pressure >0.5 Pa, power supply AC 220V/50Hz, max power 800W
    Working area 1300×660×680 mm, overall dimension 1560×740×1950 mm
    Equipped with 30W lamp for safe illumination
    Weight: 180 kg

    Model: TS-FH1500
    Add to Basket
  • TS-FH1200 Laboratory Fume Hood with Integrated Ventilation and Stainless Steel Work Surface
    Laboratory Fume Hood TS-FH1200 with integrated water, electricity, gas, and ventilation system
    Seamlessly welded cold-rolled steel structure with electrostatic spray finish for durability and smooth appearance
    Stainless steel veneer work table for corrosion resistance and easy cleaning
    Adjustable exhaust speed 0.25–0.45 m/s, inlet pressure >0.5 Pa, power supply AC 220V/50Hz, max power 400W
    Working area 1030×660×680 mm, overall dimension 1200×740×1950 mm
    Equipped with 28W lamp for safe illumination

    Model: TS-FH1200
    Add to Basket
  • TS-18 Laboratory Chemical Fume Hood with Corrosion-Resistant Work Surface and Integrated Ventilation System
    Chemical Lab Fume Hood TS-18 with integrated water, electricity, gas, and ventilation system
    Durable 1.0mm cold-rolled steel outer shell with epoxy resin coating and corrosion-resistant 5mm inner board
    Operating table made of 12.7mm acid- and alkali-resistant solid core board for long service life
    Exhaust speed 0.5 m/s, power supply 220/300V, max power 0.3KW
    Working area dimension 1588×655×1200 mm, overall dimension 1800×850×2350 mm
    Equipped with 12W lamp for safe illumination, maintenance hole for easy servicing

    Model: TS-18
    Add to Basket
  • TS-15 Laboratory Chemical Fume Hood with Corrosion-Resistant Work Surface and Integrated Ventilation
    Chemical Lab Fume Hood TS-15 with integrated water, electricity, gas, and ventilation system
    Durable 1.0mm cold-rolled steel shell with high-temperature epoxy resin coating and corrosion-resistant inner board
    Operating table made of 12.7mm acid- and alkali-resistant solid core board
    Exhaust speed 0.5 m/s, power supply 220/300V, max power 0.3KW
    Working area dimension 1288×655×1200 mm, overall dimension 1500×850×2350 mm
    Equipped with 12W lamp for safe illumination, maintenance hole for easy service

    Model: TS-15
    Add to Basket
  • TS-12 Chemical Laboratory Fume Hood with Corrosion-Resistant Work Surface and Integrated Ventilation
    Chemical Lab Fume Hood TS-12 with integrated water, electricity, gas, and ventilation system
    Durable cold-rolled steel shell with epoxy resin coating and corrosion-resistant inner board
    Operating table made of 12.7mm acid- and alkali-resistant solid core board
    Exhaust speed 0.5 m/s, power supply 220/300V, max power 0.3KW
    Working area dimension 988×655×1200 mm, overall dimension 1200×850×2350 mm
    Equipped with 12W lamp for safe illumination, maintenance hole for easy service

    Model: TS-12
    Add to Basket
  • T-18 Laboratory Fume Hood with Adjustable Glass Window, Integrated Ventilation, and Safe Waste Disposal
    Laboratory Fume Hood T-18 with integrated water, electricity, gas, and ventilation
    Automatic balance-type glass window, adjustable and can stay at any position for safe operation
    Ventilation speed 0.3–0.6 m/s, inlet pressure >0.5Pa, airflow 450–1600 m³/h for efficient gas removal
    Equipped with multifunctional socket and stainless steel water tank for safe disposal of liquid waste
    Power 800W, AC 220V/50Hz, weight 200kg
    Working area dimension 1600×695×580 mm, overall dimension 1755×760×1950 mm

    Model: T-18
    Add to Basket
  • T-15 Chemical Lab Fume Hood with Adjustable Glass Window, Integrated Ventilation and Safe Waste Disposal
    Chemical Lab Fume Hood T-15 with integrated water, electricity, gas, and ventilation
    Automatic balance-type glass window, adjustable and can stay at any position for safe operation
    Ventilation speed 0.3–0.6 m/s, inlet pressure >0.5Pa, airflow 450–1600 m³/h for efficient gas removal
    Equipped with multifunctional socket and stainless steel water tank for safe disposal of liquid waste
    Power 800W, AC 220V/50Hz, weight 180kg
    Working area dimension 1300×695×580 mm, overall dimension 1455×760×1950 mm

    Model: T-15
    Add to Basket
  • T-12 Chemical Lab Fume Hood with Adjustable Glass Window, Integrated Ventilation and Waste Disposal
    Chemical Lab Fume Hood T-12 with integrated water, electricity, gas, and ventilation
    Automatic balance-type glass window, adjustable and can stay at any position for safe operation
    Ventilation speed 0.3–0.6 m/s, inlet pressure >0.5Pa, airflow 450–1600 m³/h for efficient gas removal
    Equipped with multifunctional socket and stainless steel water tank for safe disposal of liquid waste
    Power 400W, AC 220V/50Hz, weight 160kg
    Working area dimension 1030×695×580 mm, overall dimension 1185×760×1950 mm

    Model: T-12
    Add to Basket

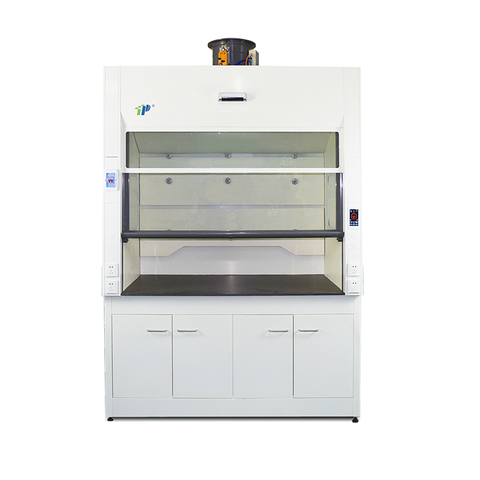

  • T-23VAV VAV Fume Hood | Floor-Type Lab Fume Cupboard with 1500×850 mm Work Surface, Explosion-Proof Lighting & Adjustable Sash
    Floor-type fume hood with VAV control system for energy-efficient airflow
    Size: 1500×850×2350 mm, suitable for standard laboratory installation
    Worktable: 12.7 mm thick chemical-resistant board, epoxy/marble/ceramic options
    Cabinet: 1.0 mm galvanized steel, anti-static and corrosion-resistant
    Window: 5 mm tempered glass, adjustable height, with explosion-proof design
    Safety: Power/fan/socket protection, leakage, overload, underphase, reverse fault protections
    Illumination: ≥300 LUX table lighting for safe operation

    Model: T-23VAV
    Add to Basket
