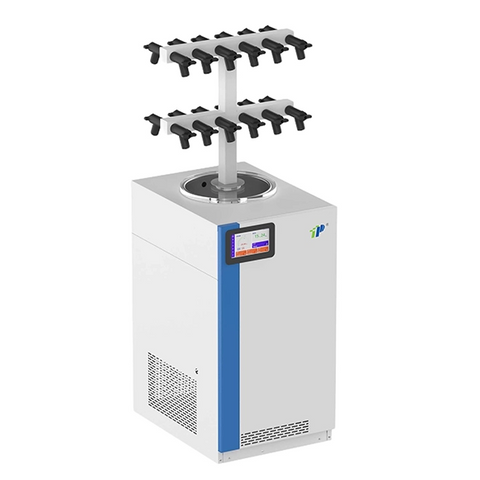

-55°C Freeze Dryer for Laboratory Use | 14kg Vacuum Lyophilizer for Aqueous Solutions – PNET16001Cold Trap Temperature: ≤ -55°C, reaches -55°C from room temperature within 10 minutes
Water Capture Capacity: 14 kg, ideal for medium-throughput freeze-drying tasks
Freeze-Drying Efficiency: 6 kg/24h, suitable for daily laboratory sample processing
Cold Trap Volume: 23 L, supports large-volume condensation
Sample Capacity: Compatible with 8–24 sample vials (manifold type)
Vacuum Performance: Ultimate vacuum ≤ 1.33 Pa, pumping speed ≥ 120 L/min
Control System: Touchscreen interface with both manual and automatic modes, one-click hot air defrost
- Model: PNET 16001
-

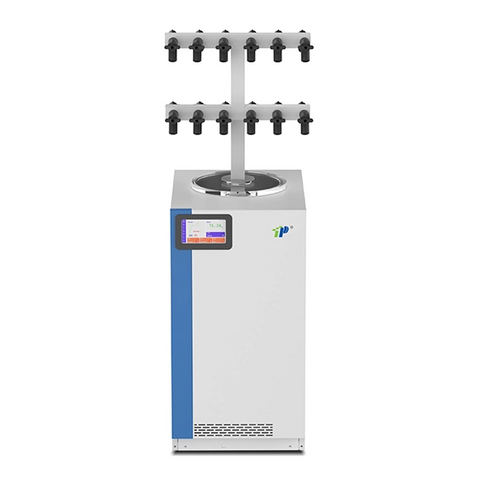

-85°C Large Capacity Freeze Dryer | 14kg Vacuum Lyophilizer for Laboratory And Organic Solvent – PNET16002Cold Trap Temperature: ≤ -85°C, reaches in 20 minutes
Water Capture Capacity: 14 kg, Freeze-drying efficiency: 6 kg/24h
Cold Trap Volume: 23 L, Vacuum Degree ≤1.33 Pa
Sample Capacity: 8–24 bottles
Vacuum Pumping Speed: ≥120 L/min, Oil mist filter included
Dimensions / Weight: 475×700×970 mm / 80 kg
- Model: PNET 16002
-

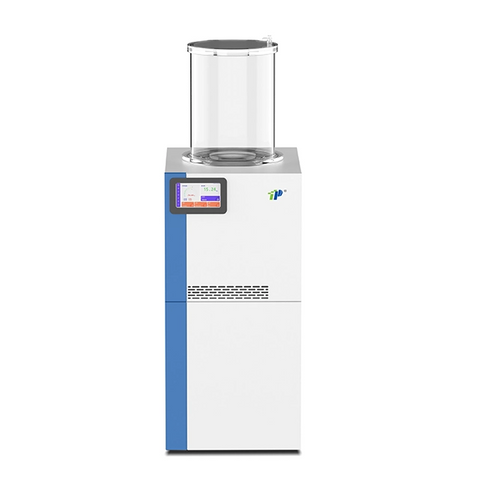

-85°C Laboratory Freeze Dryer | Vacuum Lyophilizer for Aqueous & Organic Solvents – PNET 6002Cold Trap Temperature: ≤ -85°C (reaches in 20 minutes)
Freeze-Drying Area: 0.22 – 0.4 ㎡, 4-layer tray system (φ270mm)
Water Capture Capacity: 4 kg, Freeze-drying efficiency: 2.2 kg/24h
Vacuum System: ≤1.33 Pa, pumping speed ≥130 L/min, oil mist filter included
Compressor Power: 1400W, Cold trap volume ≥10 kg
Dimensions / Weight: 475×700×1050mm / 73 kg
- Model: PNET 6002
-

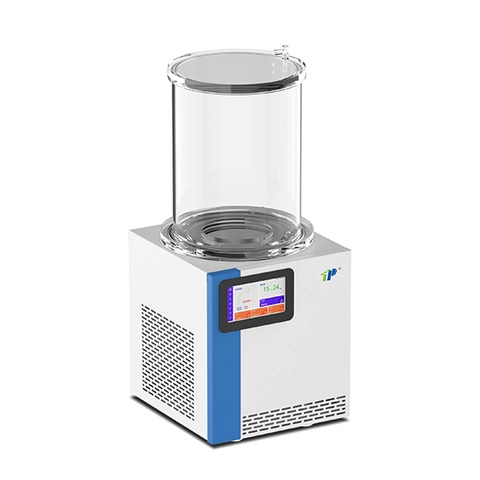

PNET 6001 Benchtop Freeze Dryer with -55°C Cold Trap | Lab-Scale Lyophilizer for Aqueous SamplesCold Trap Temperature: ≤ -55°C (10 minutes to reach from room temperature)
Freeze-Drying Area: 0.22 - 0.4 m² with 4-layer sample tray (Ø270 mm)
Water Capture Capacity: 4 kg; Drying Efficiency: 2.2 kg/24h
Vacuum Performance: ≤1.33 Pa ultimate vacuum; ≥130 L/min pump speed
Intelligent Control: Touchscreen operation, real-time temp & vacuum display, auto/manual modes
Defrost & Drainage: One-click hot air defrosting, plug-and-pull drainage design
Compressor Power: 700 W; Vacuum Pump Power: 370 W
- Model: PNET 6001
-
Lab Freeze Dryer with -102°C Cold Trap | Touchscreen Control | 27L Volume | Multi-Chamber OptionsDrying Chamber: Standard / Stoppering / Manifold
Area: 0.25m2 / 0.18m2 / 8 or 16 tubes
No-load temperature (cold trap): min.≤-65℃ or min.≤-102℃ (Depend on models)
Cold trap volume: 27L
Ice holding capacity: 15kg
No-load vacuum pressure: 5Pa
Ultimate vacuum: 1Pa
Number of shelves: 3 layers or 4 layers
Material tray diameter: Ø280mm
Tray-loaded solution: 2.5L
- Model: PGJ-25C /PGJ-25S
-
Vertical Freeze Dryer | Cylindrical Chamber | -45℃~+50℃ Shelf Temp | PLC Controlled | 2–4 Layers | 8kg Ice CapacityEquipment appearance and structure: Vertical unit (cylindrical material chamber)
Area (m2): 0.2 / 0.3 / 0.4 (Depend on models)
Shelf temperature (℃): -45 ~ +50
Shelf temperature uniformity: ±1℃ (under stabilized state)
Shelf specification (mm): W400*D250
Number of Shelves: 2 - 4 layers
Bulk drug loading capacity: 2kg / 3kg / 4kg (Depend on models)
Ice holding capacity: 8kg
No-load vacuum pressure: ≤5Pa
Ultimate vacuum (no-load): ≤1Pa
- Model: PGJ-20E/ PGJ-30E /PGJ-40E
-
Pilot Freeze Dryer with Touchscreen & PLC | -50℃~+60℃ Shelf Temp | 2-4 Layers | 10kg Ice CapacityArea (m2): 0.2 / 0.3 / 0.4 (Depend on models)
Shelf temperature (℃): -50 ~ +60
Shelf temperature uniformity: ±1℃ (under stabilized state)
Shelf specification (mm): W335*D300
Number of shelves: 2 ~ 4 layers
Bulk drug loading capacity: 2kg / 3kg / 4kg
Ice holding capacity: 10kg
24-hour maximum ice holding capacity: 3kg
Cold trap volume: 21L
No-load vacuum pressure: ≤5Pa
Ultimate vacuum (no-load): ≤1Pa
- Model: PGJ-20H / PGJ-30H / PGJ-40H
-
Lab Freeze Dryer with Cold Trap -60℃ to -102℃ | Compact Benchtop Lyophilizer with Multiple ModelsDrying Chamber: Standard / Manifold / Stoppering (Depend on models)
Area: 0.08m2 to 0.18m2 (Depend on models)
No-load temperature (cold trap): min. ≤ -60℃ to min. ≤ -102℃ (Depend on models)
Cold trap volume: 6 or 13 L (Depend on models)
Ice holding capacity: 4kg or 6kg (Depend on models)
No-load vacuum pressure: 5Pa
Ultimate vacuum: 1Pa
Number of shelves: 2 - 6 layers (Depend on models)
Material tray diameter: Ø200mm
Shelf spacing: 60mm
The height of the drying chamber for the standard model is 345mm, for the stoppering model is 410mm, and for the manifold model is 525mm.
- Model: PGJ Series
-
Compact Pilot Freeze Dryer with PLC & Touchscreen | 0.54–1.15㎡ Shelf Area | GMP-Compliant Lyophilizer for Pharma & R&DArea (m2): 0.54 / 0.82 / 1 / 1.15 (Depend on models)
Shelf temperature (℃): -50 ~ +60
Shelf temperature limit (no-load): ≤-55℃
Shelf specification (mm): W450*D300 / W470*D350 (Depend on models)
Number of shelves: 4+1 layers / 5+1 layers / 6+1 layers / 7+1 layers (Depend on models)
Shelf spacing (mm): 100mm / 80mm (Depend on models)
Bulk drug loading capacity :5kg/batch / 8kg/batch / 10kg/batch / 12kg/batch (Depend on models)
Ice holding capacity :18kg /18kg /25kg /25kg (Depend on models)
Cooling methods: air cooling or water cooling
- Model: PGJ-50i /PGJ-80i /PGJ-100i /PGJ-120i
-
Laboratory Freeze Dryer with Touchscreen PLC | 1.08–3.24m² Shelf Area | Programmable Lyophilizer for Pharmaceuticals & ResearchArea (m2): 1.08 / 2.16 / 3.24 (Depend on models)
Shelf temperature (℃): -50 ~ +60
Shelf temperature limit (no-load): ≤-55℃
Shelf specification (mm): W600*D450 / W900*D600 (Depend on models)
Shelves: 4+1 layers / 6+1 layers (Depend on models)
Shelf spacing (mm): 80
Bulk drug loading capacity : 15kg/batch / 30kg/batch / 43kg/batch (Depend on models)
Ice holding capacity: 25kg /30kg /40kg (Depend on models)
Cooling method: air cooling or water cooling
- Model: PGJ-100E /PGJ-200E /PGJ-300E
