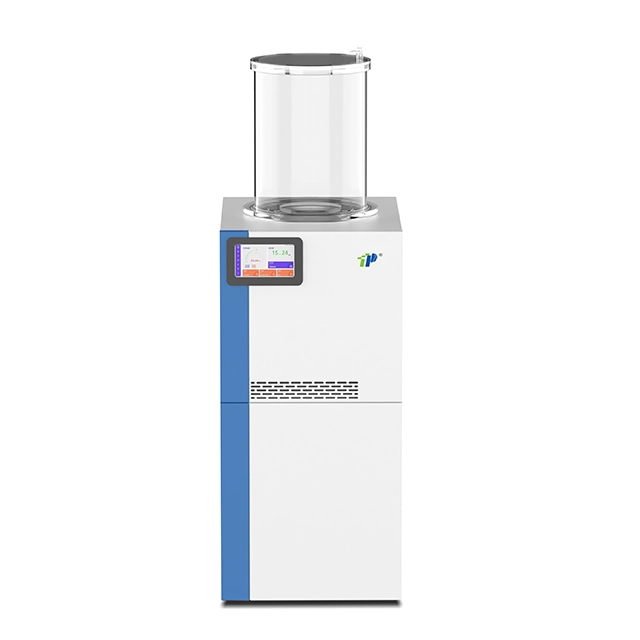

-85°C Laboratory Freeze Dryer | Vacuum Lyophilizer for Aqueous & Organic Solvents – PNET 6002

Cold Trap Temperature: ≤ -85°C (reaches in 20 minutes)
Freeze-Drying Area: 0.22 – 0.4 ㎡, 4-layer tray system (φ270mm)
Water Capture Capacity: 4 kg, Freeze-drying efficiency: 2.2 kg/24h
Vacuum System: ≤1.33 Pa, pumping speed ≥130 L/min, oil mist filter included
Compressor Power: 1400W, Cold trap volume ≥10 kg
Dimensions / Weight: 475×700×1050mm / 73 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PNET 6002

  • TOP

  • Refrigeration system

▷ Vertical built-in cavity cold trap coil structure;

▷ Independently developed hybrid refrigeration technology, with lower and more stable temperatures;

▷ The fluorine-free refrigeration compressor has a cold trap temperature of ≤-85℃, and it takes only 20 minutes for the room temperature to drop to -85℃.


  • Vacuum system

▷ One-piece formed built-in vertical stainless steel coil cold trap, with a maximum ice freezing capacity of 4KG, and the cold trap is the largest

Volume ≥10KG

▷ It is equipped with a high-precision vacuum gauge as standard to ensure the accuracy of the vacuum degree.

▷ The pumping capacity of the vacuum pump is greater than 130L/min, and the ultimate vacuum degree of the vacuum pump is ≤1.33Pa;

▷ Standard equipped with oil mist filter;


  • Intelligent control system

▷ Standard equipped with one-click hot air defrosting function;

▷ Stable, reliable and fast plug-and-pull drainage pipeline;

▷ Rear-mounted main unit power socket, vacuum pump power socket;

▷ Real-time monitoring and display of temperature and vacuum degree;

▷ It can be operated through a touch screen to control the on/off of the refrigeration and vacuum pumps, and has both automatic and manual modes.


ModelPNET 6002
Solvent TypeAqueous/Organic Solvent
Cold Trap Temperature-85°C
Sample Tray Size (mm)Diameter 270mm
Number of Tray Layers4 layers
Freeze-Drying Area (㎡)0.22 - 0.4
Water Capture Capacity4 kg
Freeze-Drying Efficiency2.2 kg/24h
Compressor Power1400 W
Cold Trap Volume≥10 kg
Ultimate Vacuum≤1.33 Pa
Pumping Speed≥120 L/min
Power Requirements220V/50Hz
Vacuum Pump Power370 W
Dimensions (mm)475 (W) × 700 (D) × 1050 (H)
Net Weight73 kg
