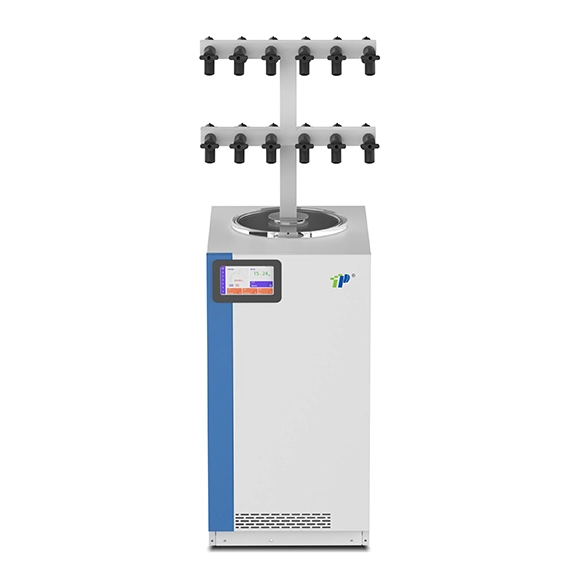

PNET 16001
TOP
Refrigeration system
▷ Vertical built-in cavity cold trap coil structure;
▷ Independently developed hybrid refrigeration technology, with lower and more stable temperatures;
▷ The fluorine-free refrigeration compressor has a cold trap temperature of ≤-55℃, and it takes only 10 minutes for the room temperature to drop to -55℃.
Vacuum system
▷ One-piece formed built-in vertical stainless steel coil cold trap, with a maximum ice freezing capacity of 14KG, and the cold trap is the largest
Volume ≥23KG
▷ It is equipped with a high-precision vacuum gauge as standard to ensure the accuracy of the vacuum degree.
▷ The pumping capacity of the vacuum pump is greater than 130L/min, and the ultimate vacuum degree of the vacuum pump is ≤1.33Pa;
▷ Standard equipped with oil mist filter;
Intelligent control system
▷ Standard equipped with one-click hot air defrosting function;
▷ Stable, reliable and fast plug-and-pull drainage pipeline;
▷ Rear-mounted main unit power socket, vacuum pump power socket;
▷ Real-time monitoring and display of temperature and vacuum degree;
▷ It can be operated through a touch screen to control the on/off of the refrigeration and vacuum pumps, and has both automatic and manual modes.
Refrigeration system
▷ Vertical built-in cavity cold trap coil structure;
▷ Independently developed hybrid refrigeration technology, with lower and more stable temperatures;
▷ The fluorine-free refrigeration compressor has a cold trap temperature of ≤-55℃, and it takes only 10 minutes for the room temperature to drop to -55℃.
Vacuum system
▷ One-piece formed built-in vertical stainless steel coil cold trap, with a maximum ice freezing capacity of 14KG, and the cold trap is the largest
Volume ≥23KG
▷ It is equipped with a high-precision vacuum gauge as standard to ensure the accuracy of the vacuum degree.
▷ The pumping capacity of the vacuum pump is greater than 130L/min, and the ultimate vacuum degree of the vacuum pump is ≤1.33Pa;
▷ Standard equipped with oil mist filter;
Intelligent control system
▷ Standard equipped with one-click hot air defrosting function;
▷ Stable, reliable and fast plug-and-pull drainage pipeline;
▷ Rear-mounted main unit power socket, vacuum pump power socket;
▷ Real-time monitoring and display of temperature and vacuum degree;
▷ It can be operated through a touch screen to control the on/off of the refrigeration and vacuum pumps, and has both automatic and manual modes.
