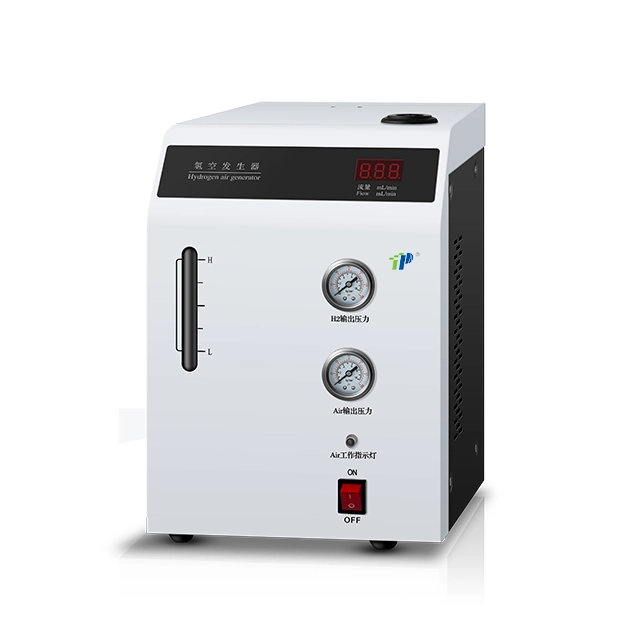

Laboratory Hydrogen & Nitrogen/Air Integrated Generator PHGA-300/500, 100% H₂, Oil-Free Air, Adjustable Flow, 220V
You are here: home » Products » Chemical Analysis Instruments » Laboratory Gas Generators » Laboratory Hydrogen & Nitrogen/Air Integrated Generator PHGA-300/500, 100% H₂, Oil-Free Air, Adjustable Flow, 220V

Product Category

loading

Laboratory Hydrogen & Nitrogen/Air Integrated Generator PHGA-300/500, 100% H₂, Oil-Free Air, Adjustable Flow, 220V

Gas type: Integrated Hydrogen & Nitrogen/Air (H₂ 100% purity, Oil-free Air Grade 3)
Hydrogen output flow rate: 0–300 ml/min (PHGA-300), 0–500 ml/min (PHGA-500)
Air output flow rate: 0–3 L/min (PHGA-300), 0–5 L/min (PHGA-500)
Maximum working pressure: H₂ 0.4 MPa, Air 0.4 MPa
Power supply: 220V ±10%, 50Hz; Maximum power 230–280W
External dimensions (L×W×H): 520×280×400 mm
Net weight: 28–32 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PHGA-300/500

  • TOP

Technical Parameters

Nitrogen-air integrated machine

Model


PHGA-300

PHGA-500

Purity (relative oxygen content)

Hydrogen

99.999%

99.999%

Air

Oil-free Grade 3

Oil-free Grade 3


Work pressure

Hydrogen

0.4Mpa

0.4Mpa

Air

0.4Mpa

0.4Mpa

Flow rate /min

Hydrogen

0-300ml

0-500ml

Air

0-3L

0-5L

Ambient Temperature

0-40℃ Relative humidity<85%

0-45℃ Relative humidity<85%

Maximum power

230W

280W

Weight

32Kg

28Kg

Supply Voltage

220V±10% 50Hz

Ambient conditions

No large amount of dust and corrosive gas

Remarks

⒈ hydrogen pressure factory set 0.4MPa ⒉ Output stability ≤ 0.01MPa

External Dimensions

520X280X400mm (L×W×H)
