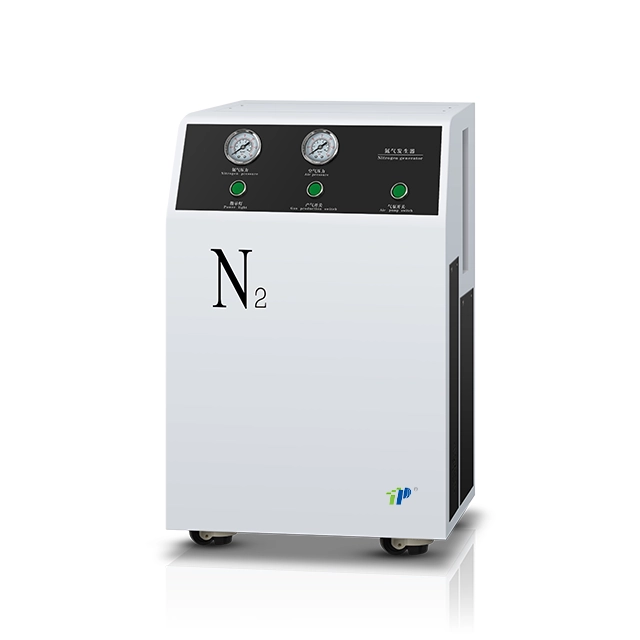

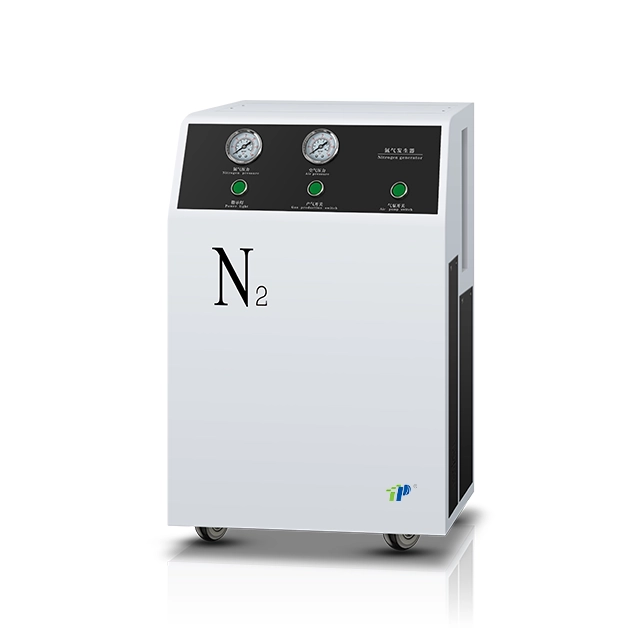

Laboratory Nitrogen Gas Generator PGN Series, High Purity 99.5–99.95%, 5–60 L/min Flow Rate, 220V
Gas type: High-purity Nitrogen, 99.50–99.95%
Output flow rate: 5–60 L/min depending on model (PGN-5L to PGN-60LB)
Working pressure: 0.4–0.75 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 550–1600W
Noise level: ≤52–60 dB
External dimensions (L×W×H): 465×235×360 mm to 1000×500×700 mm
Net weight: 45–150 kg
Output flow rate: 5–60 L/min depending on model (PGN-5L to PGN-60LB)
Working pressure: 0.4–0.75 MPa
Voltage & frequency: 220V ±10%, 50Hz; Maximum power 550–1600W
Noise level: ≤52–60 dB
External dimensions (L×W×H): 465×235×360 mm to 1000×500×700 mm
Net weight: 45–150 kg
| Quantity: | |
|---|---|
-
PNG-5L/10L/16L/20L/30L/30LB/40L/40LB/60L/60LB
-
TOP
Technical Parameters
Nitrogen Generator | ||||||||||
Product Model | PGN-5L | PGN-10L | PGN-16L | PGN-20L | PGN-30L | PGN-30LB | PGN-40L | PGN-40LB | PGN-60L | PGN-60LB |
Voltage | 220V±10% ；50Hz | |||||||||
Maximum power | 550w | 900w | 900w | 1000w | 1100W | 1100W | 1200w | 1200w | 1600w | 1600w |
Purity | 99.95% | 99.95% | 99.95% | 99.95% | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% |
Output flow rate | 5L/min | 10L/min | 16L/min | 20L/min | 30L/min | 30L/min | 40L/min | 40L/min | 60L/min | 60L/min |
Ambient conditions | Ambient temperature 0-45°C Relative humidity ≤85% No large amount of dust and corrosive gas pollution | |||||||||
Output pressure | 0.4Mpa | 0.4Mpa | 0.4Mpa | 0.4Mpa | 0.4Mpa | 0.75Mpa | 0.4Mpa | 0.75Mpa | 0.4Mpa | 0.75Mpa |
Noise | ＜ 52 | ＜ 52 | ＜ 52 | ＜ 55 | ＜ 55 | ＜ 55 | ＜ 55 | ＜ 55 | ＜ 60 | ＜ 60 |
Weight | 45Kg | 105Kg | 105Kg | 120Kg | 120Kg | 120Kg | 130Kg | 130Kg | 150Kg | 150Kg |
Dimension(L×W×H) (mm) | 620×350×600 | 465×235×360 | 465×235×360 | 600×700×1100 | 600×700×1100 | 800×500×700 | 800×500×700 | 800×500×700 | 1000×500×700 | 1000×500×700 |
Technical Parameters
Nitrogen Generator | ||||||||||
Product Model | PGN-5L | PGN-10L | PGN-16L | PGN-20L | PGN-30L | PGN-30LB | PGN-40L | PGN-40LB | PGN-60L | PGN-60LB |
Voltage | 220V±10% ；50Hz | |||||||||
Maximum power | 550w | 900w | 900w | 1000w | 1100W | 1100W | 1200w | 1200w | 1600w | 1600w |
Purity | 99.95% | 99.95% | 99.95% | 99.95% | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% |
Output flow rate | 5L/min | 10L/min | 16L/min | 20L/min | 30L/min | 30L/min | 40L/min | 40L/min | 60L/min | 60L/min |
Ambient conditions | Ambient temperature 0-45°C Relative humidity ≤85% No large amount of dust and corrosive gas pollution | |||||||||
Output pressure | 0.4Mpa | 0.4Mpa | 0.4Mpa | 0.4Mpa | 0.4Mpa | 0.75Mpa | 0.4Mpa | 0.75Mpa | 0.4Mpa | 0.75Mpa |
Noise | ＜ 52 | ＜ 52 | ＜ 52 | ＜ 55 | ＜ 55 | ＜ 55 | ＜ 55 | ＜ 55 | ＜ 60 | ＜ 60 |
Weight | 45Kg | 105Kg | 105Kg | 120Kg | 120Kg | 120Kg | 130Kg | 130Kg | 150Kg | 150Kg |
Dimension(L×W×H) (mm) | 620×350×600 | 465×235×360 | 465×235×360 | 600×700×1100 | 600×700×1100 | 800×500×700 | 800×500×700 | 800×500×700 | 1000×500×700 | 1000×500×700 |
