TP600MCS-3 Pulsed-Field Gel Electrophoresis System | 100 bp–6 Mb DNA Separation, Programmable PFGE
Type: Pulsed-Field Gel Electrophoresis (PFGE) System
DNA Size Separation: 100 bp–6 Mb, suitable for large genomic DNA and chromosomal DNA
Voltage Gradient: Up to 9.5 V/cm, increment 0.1 V/cm; Maximum current 0.5 A, maximum power 300 W
Pulse Settings: Pulse width 1–9999 s or programmable; Pulse angle ±120°/±180°, field reversal supported
Temperature Control: 10°C–30°C, buffer refrigeration circulation pump, direct buffer temperature detection ±0.1°C
Control & Safety: Dual core microprocessor, program editing, automatic connection, open cover power-off protection, overload/no-load protection

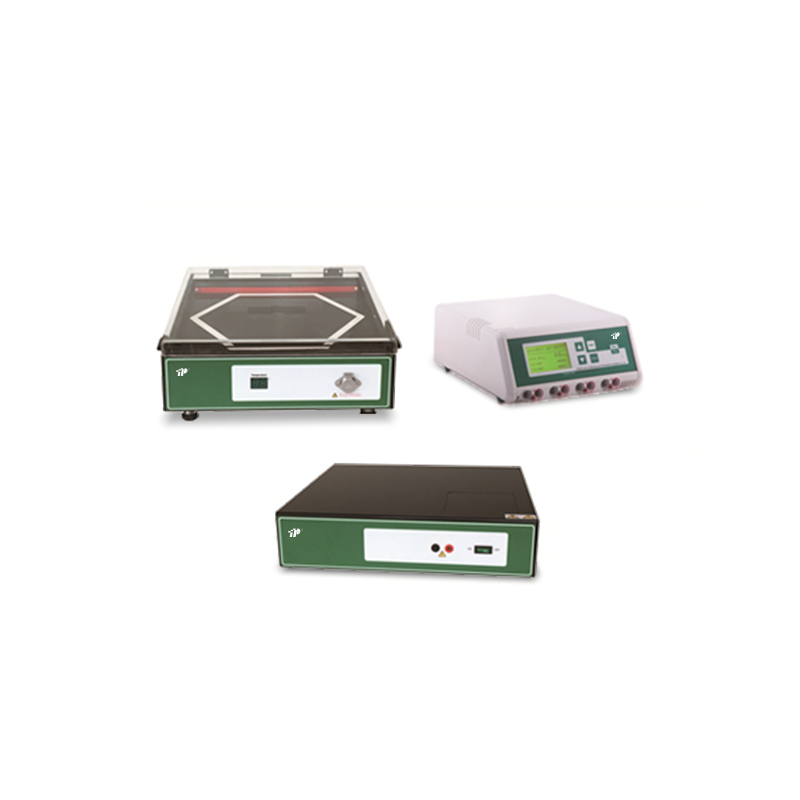

Modules: Separate power supply, pulsed-field electrode tank with multi-sub-electrodes, and constant temperature circulator
DNA Size Separation: 100 bp–6 Mb, suitable for large genomic DNA and chromosomal DNA
Voltage Gradient: Up to 9.5 V/cm, increment 0.1 V/cm; Maximum current 0.5 A, maximum power 300 W
Pulse Settings: Pulse width 1–9999 s or programmable; Pulse angle ±120°/±180°, field reversal supported
Temperature Control: 10°C–30°C, buffer refrigeration circulation pump, direct buffer temperature detection ±0.1°C
Control & Safety: Dual core microprocessor, program editing, automatic connection, open cover power-off protection, overload/no-load protection
Modules: Separate power supply, pulsed-field electrode tank with multi-sub-electrodes, and constant temperature circulator
| Quantity: | |
|---|---|
-
TP600MCS-3
-
TOP
Technical specifications
With the buffer refrigeration circulation pump, control electrophoresis temperature effectively, the use of high efficiency, long service life.
• The isolated fragment: 100bp-6Mb.
• Voltage gradient: Maximum of 9.5V/cm, increment 0.1v/cm.
• Maximum current: 0.5A.
• Maximum power: 300W.
• Pulse angle: ±120°、±180°, Having the field reversal function.
• Pulse width: 1~9999s or programmed pulse or 1~20s pulse line increase.
• Module timer: 1min~99hours 59min.
• Temperature ranges: 10°C~30°C, Accuracy to less than ±0.5°C
• Temperature detection: Direct detection of buffer solution temperature, error is less than ±0.1°C.
• Cyclic module: inner buffer cyclic system.
• Control function: Dual core microprocessor intelligent control, with the program editing and automatic connection function, Open cover power-off protection function, overload protection, no-load automatic memory function, the function of automatic shutdown function.
Power supply module for Pulsed electric field:
Molding shell, touch keys, dual core microprocessor intelligent control, with the program editing and automatic connection function, open cover power-off protection function, overload protection, no-load automatic memory function, the function of automatic shutdown function.
Output mode control allocation module for Pulsed electric field:
In the control of CPU intelligent control unit, control of farm output in accordance with the procedure of mode of pulse electric power module, the controlled pulsed field voltage, current, electric field, electric field angle duration, output to a specific sub electrode pulse electrophoresis tank.
Pulsed electrophoresis tank module:
Pulse field gel electrophoresis electrode composed of hexagonal, each side electrode are respectively provided with 3 independent sub electrode. The pulsed field electrophoresis pulsed field driving power supply output with pulsed field electrophoresis tank to specific points on the electrode, pulsed field strength, electric field, electric field angle conversion time meet the experimental pulse field gel electrophoresis experiments need. At the same time control buffer cooling cycle unit to realize the constant temperature operation of the electrophoretic run, ensure the electrophoresis experiment effect.
Constant temperature circulator module:
With buffer refrigeration circulation pump, control electrophoresis temperature effectively, the use of high efficiency, log-life service.
