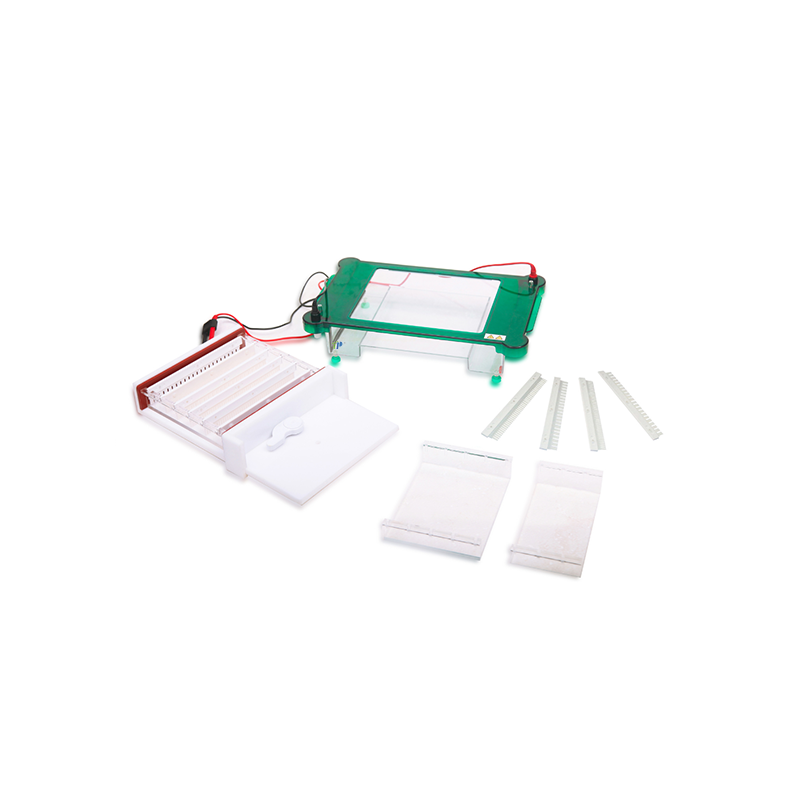

TP-SPGT Horizontal Gel Electrophoresis System with Multiple Gel Sizes and Auto-Safety Lid
Gel Size Options: 200×200 mm, 200×150 mm, 200×100 mm
Sample Wells: 17, 22, 36, 44
Buffer Volume: ~1800 ml
Dimension (L×W×H): 397×230×93 mm
Net Weight: 3.3 kg
Features: Unfolded electrodes for easy maintenance, anti-leak gel casting, transparent top lid with auto-switch-off safety
Sample Wells: 17, 22, 36, 44
Buffer Volume: ~1800 ml
Dimension (L×W×H): 397×230×93 mm
Net Weight: 3.3 kg
Features: Unfolded electrodes for easy maintenance, anti-leak gel casting, transparent top lid with auto-switch-off safety
| Quantity: | |
|---|---|
-
TP-SPGT
-
TOP
Technical specifications
Gel Size（W×L）:200×200mm; 200×150mm; 200×100mm.
Sample volume: 17, 22, 36, 44.
Buffer Volume: ~1800ml.
Dimension（L×W×H）:397×230×93（mm）
Net weight: 3.3（kg）
Characteristic feature
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Unfolded electrodes make repair and parts replacement easy and quick.
• With a special gel casting, preventing the gel leakage, operation is simple and convenient.
• The transparent top lid effectively prevents liquid in the cell from volatilizing and avoids electricity leakage.
• Auto-switch-off when the lid is removed.
Technical specifications
Gel Size（W×L）:200×200mm; 200×150mm; 200×100mm.
Sample volume: 17, 22, 36, 44.
Buffer Volume: ~1800ml.
Dimension（L×W×H）:397×230×93（mm）
Net weight: 3.3（kg）
Characteristic feature
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Unfolded electrodes make repair and parts replacement easy and quick.
• With a special gel casting, preventing the gel leakage, operation is simple and convenient.
• The transparent top lid effectively prevents liquid in the cell from volatilizing and avoids electricity leakage.
• Auto-switch-off when the lid is removed.
