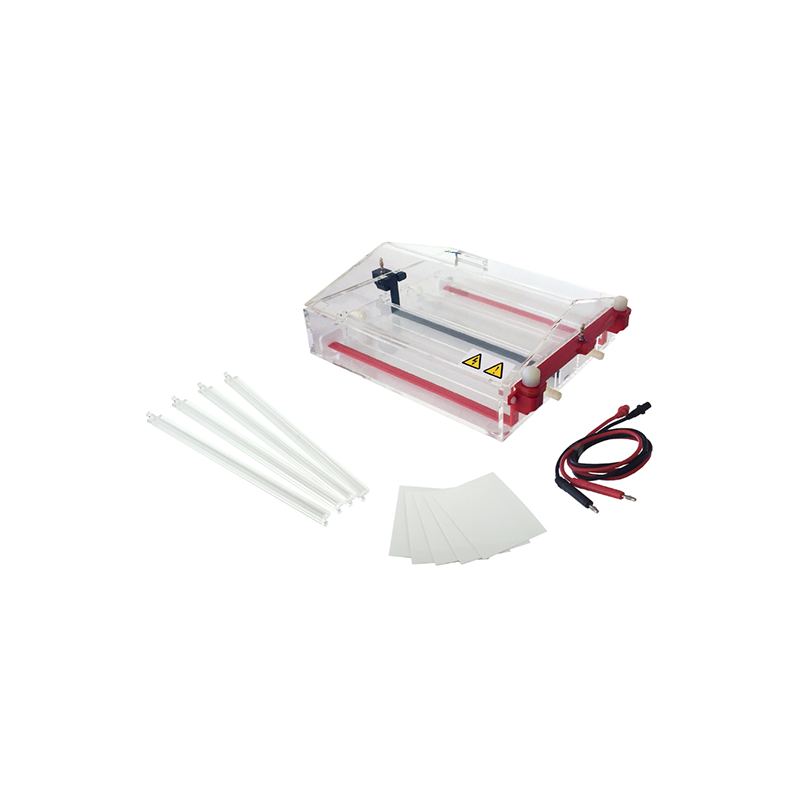

TP-SP7 Double-Bridge Horizontal Gel Electrophoresis System with Cooling Device, Adjustable Rods, 1000ml Buffer
Double-bridge electrophoresis design, bridge sizes: 70×250mm×2, 90×250mm×2
Buffer volume: ~1000 ml
Adjustable rod positions for different electrophoretic distances
Built-in cooling device for constant temperature operation
Unfolded electrodes for easy maintenance and replacement
Auto-switch-off when lid is removed
Compact size: 350×260×65 mm, Net weight: 1.6 kg
Buffer volume: ~1000 ml
Adjustable rod positions for different electrophoretic distances
Built-in cooling device for constant temperature operation
Unfolded electrodes for easy maintenance and replacement
Auto-switch-off when lid is removed
Compact size: 350×260×65 mm, Net weight: 1.6 kg
| Quantity: | |
|---|---|
-
TP-SP7
-
TOP
Technical specifications
Bridge Size (W×L):70×250mm×2; 90×250mm×2.
Buffer Volume: ~1000ml.
Dimension（L×W×H）:350×260×65（mm）
Net weight: 1.6（kg）
Characteristic feature
• The TP-SP7 is updated from the TP-SP7A with a double-bridge style design;
• With a cooling device, which can make the electrophoresis process under constant temperature;
• You can adjusting the position of the adjusting rod according to the medium length, to meet the different electrophoretic distance.
• Unfolded electrodes make repair and parts replacement easy and quick.
• Auto-switch-off when the lid is removed.
Technical specifications
Bridge Size (W×L):70×250mm×2; 90×250mm×2.
Buffer Volume: ~1000ml.
Dimension（L×W×H）:350×260×65（mm）
Net weight: 1.6（kg）
Characteristic feature
• The TP-SP7 is updated from the TP-SP7A with a double-bridge style design;
• With a cooling device, which can make the electrophoresis process under constant temperature;
• You can adjusting the position of the adjusting rod according to the medium length, to meet the different electrophoretic distance.
• Unfolded electrodes make repair and parts replacement easy and quick.
• Auto-switch-off when the lid is removed.
