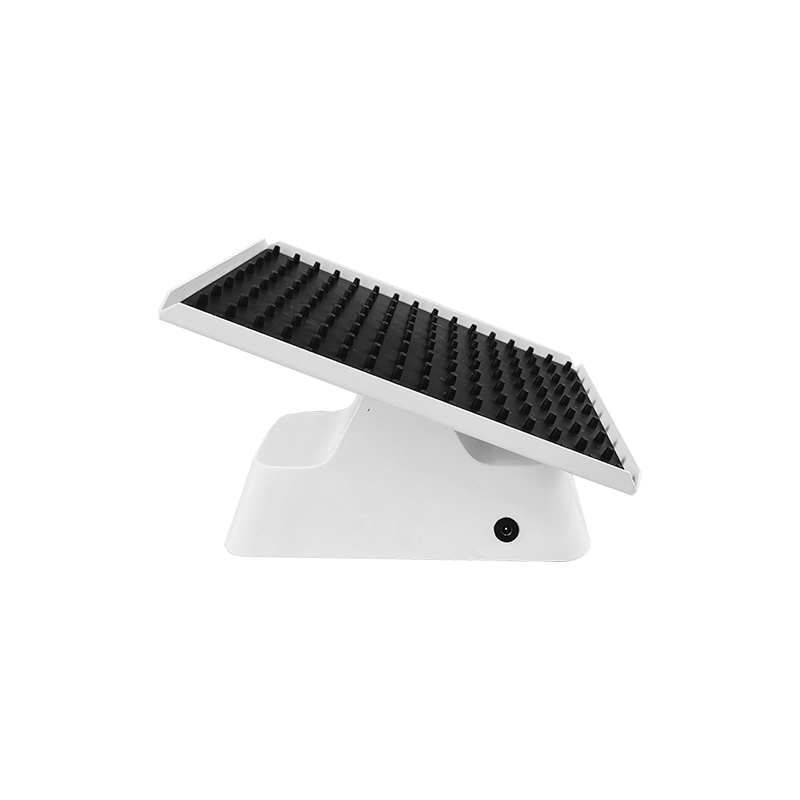

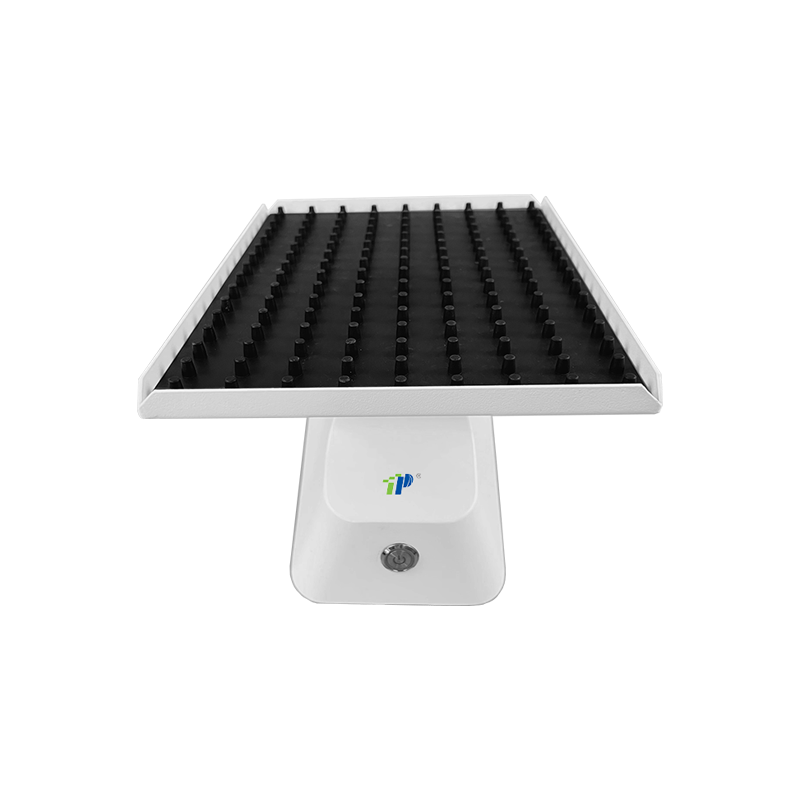

3D Laboratory Shaker | Gentle Three-Dimensional Rotator for Blood Bags, Tubes, and Culture Bottles

Mixing Method: Gentle three-dimensional circular rotation
Speed Range: Fixed 20 rpm or adjustable 0–27 rpm
Tray Size: 234 × 168 mm
Max Load Capacity: 2 kg
Motor Type: Brushless motor for stable operation
Power Supply: 100–240V, 50/60Hz (battery model optional)
Dimensions / Weight: 220 × 176 × 165 mm / 1.7 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PYM20F / PYM20 / PYM20-B (battery model)

  • TOP

Main Features:

The 3D shaker is a small mixer suitable for mixing blood collection bags, centrifuge tubes, culture bottles, petri dishes, etc. The three-dimensional circular motion mixing movement is gentle and will not produce bubbles. It is an ideal choice for mixing small doses of samples.


● Brushless motor, stable operation

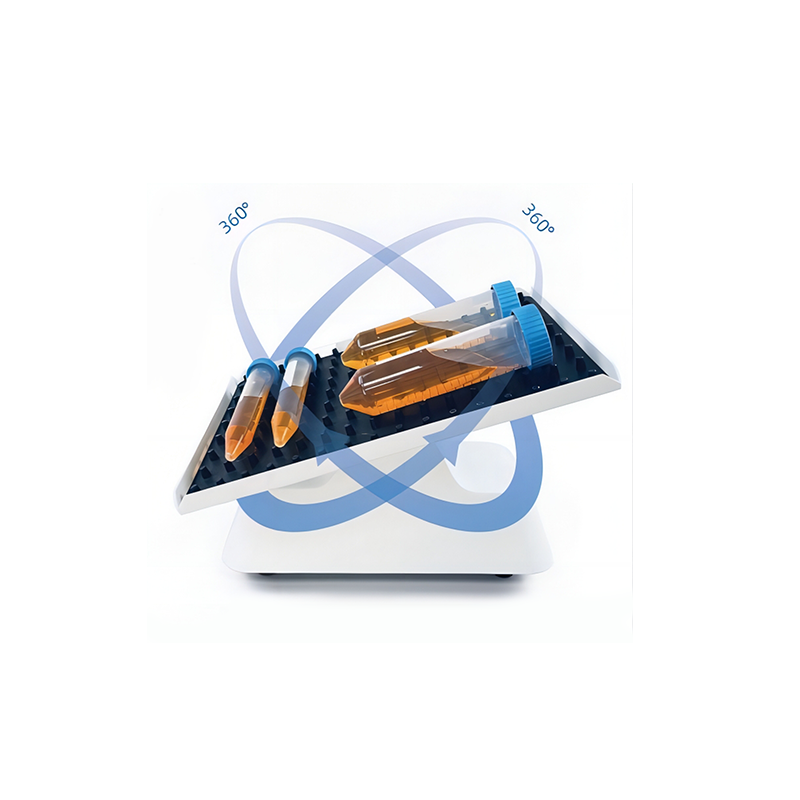

● Gentle three-dimensional circular rotation mixing

● Rotary mixing speed adjustable or fixed speed optional

● Compact and lightweight, and can be placed in an incubator or cryogenic chamber

● Anti-slip silicone plate with raised design, better anti-slip effect and better sample processing result


Machine parameters:


Model

PYM20F

PYM20

PYM20-B (battery model)

Tray size

234×168mm

Max load

2kg

Speed range

20rpm

0-27rpmadjust

0-27rpmadjust

Mix method

Three dimensional

Power

20W

Dimension

L220×W176×H165mm

Weight

1.7kg

Power supply

100~240V;50/60Hz
