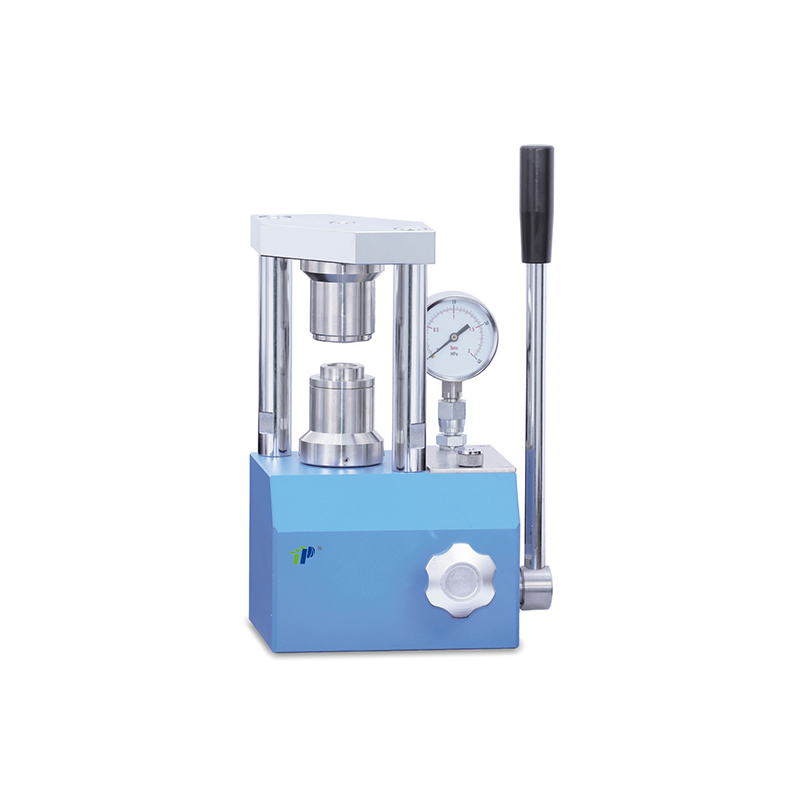

PTP-2N Manual Battery Sealing Machine with Dual-Scale Gauge – 0–2 Tons Bench Press
Pressure Range & Accuracy: 0–2 tons, dual-scale pointer gauge
Cylinder Diameter & Stroke: 32mm diameter, 0–30mm stroke
Sealing & Demolition Molds: CR16, CR20, CR24, CR30 series optional
Overall Dimensions & Weight: 210×165×290mm, 12KG
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, aluminum handwheel, high-speed steel mold, extended tension spring
Operation: Bottom-corner press design for effortless manual operation
Precision Control: Customized plunger and digital pressure display ensure no leakage and accurate sealing
Cylinder Diameter & Stroke: 32mm diameter, 0–30mm stroke
Sealing & Demolition Molds: CR16, CR20, CR24, CR30 series optional
Overall Dimensions & Weight: 210×165×290mm, 12KG
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, aluminum handwheel, high-speed steel mold, extended tension spring
Operation: Bottom-corner press design for effortless manual operation
Precision Control: Customized plunger and digital pressure display ensure no leakage and accurate sealing
| Quantity: | |
|---|---|
-
PTP-2N
-
TOP
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward.
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward.
