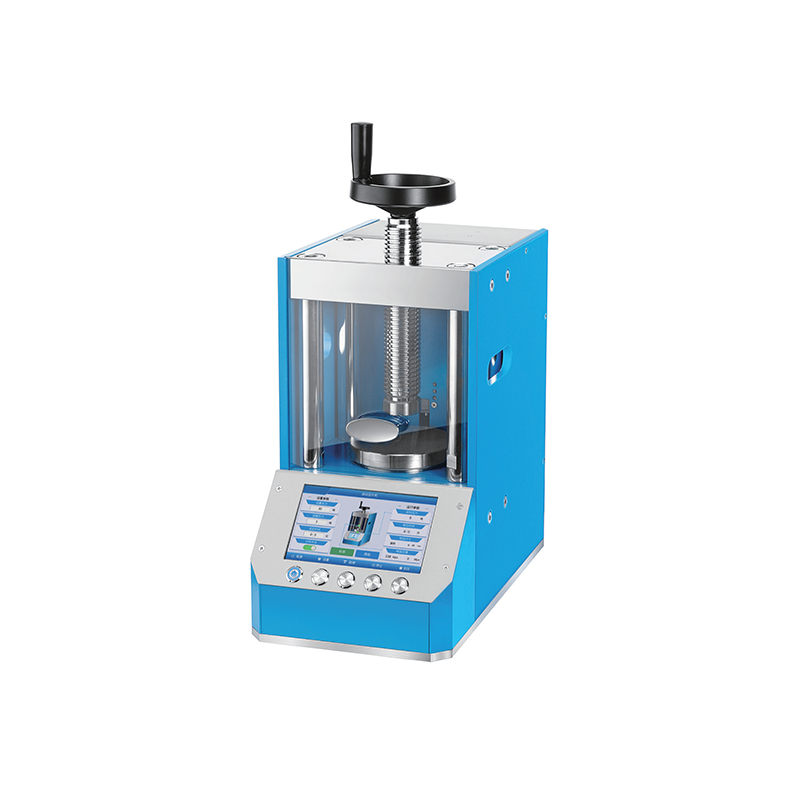

Programmable Laboratory Hydraulic Press with Touch Screen – 12T to 100T Models for Sample Preparation and Pelletizing
Pressure Range: 0–12T / 0–20T / 0–30T / 0–40T / 0–60T / 0–100T
Cylinder Diameter: 70–200mm with stroke of 30–50mm
Working Space: 110×140mm to 185×250mm
Touch Screen Control: 5-inch or 7-inch display, multi-stage programmable pressure with spectrum display
Pressure Accuracy: ±0.1T with conversion based on sample shape
Power Supply: 220V/110V (500W–1500W)
Weight: 50–320KG depending on model
Cylinder Diameter: 70–200mm with stroke of 30–50mm
Working Space: 110×140mm to 185×250mm
Touch Screen Control: 5-inch or 7-inch display, multi-stage programmable pressure with spectrum display
Pressure Accuracy: ±0.1T with conversion based on sample shape
Power Supply: 220V/110V (500W–1500W)
Weight: 50–320KG depending on model
| Quantity: | |
|---|---|
-
PPM-12S/20S/30S/40S/60S/100S
-
TOP
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward.
