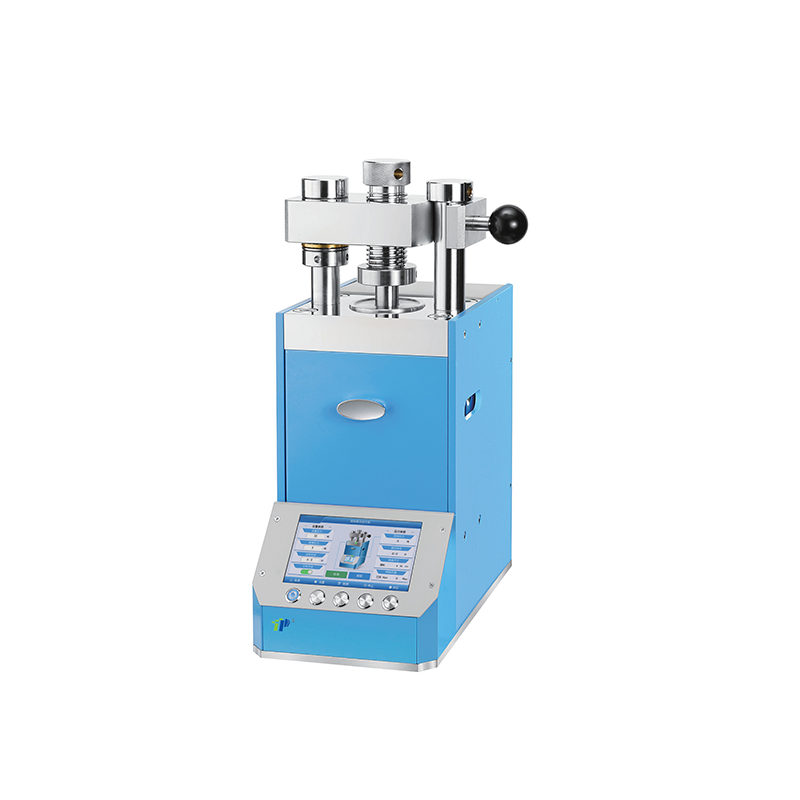

Laboratory Hydraulic Press with Programmable Multi-Stage Pressure & Spectrum Display – 20T/40T/60T Models
Pressure Range: 0–20T / 0–40T / 0–60T
Cavity Size: Φ30×150mm / Φ40×150mm / Φ50×150mm
Display Accuracy: ±0.1T; Cavity Pressure: up to 300MPa
Pressure Mode: Multi-stage program with spectrum display
Display: 7-inch Touch Screen Control
Power Supply: 220V/110V (500W)
Weight: 135KG / 180KG / 240KG
Cavity Size: Φ30×150mm / Φ40×150mm / Φ50×150mm
Display Accuracy: ±0.1T; Cavity Pressure: up to 300MPa
Pressure Mode: Multi-stage program with spectrum display
Display: 7-inch Touch Screen Control
Power Supply: 220V/110V (500W)
Weight: 135KG / 180KG / 240KG
| Quantity: | |
|---|---|
-
PPM-20J/40J/60J
-
TOP
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward.
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward.
