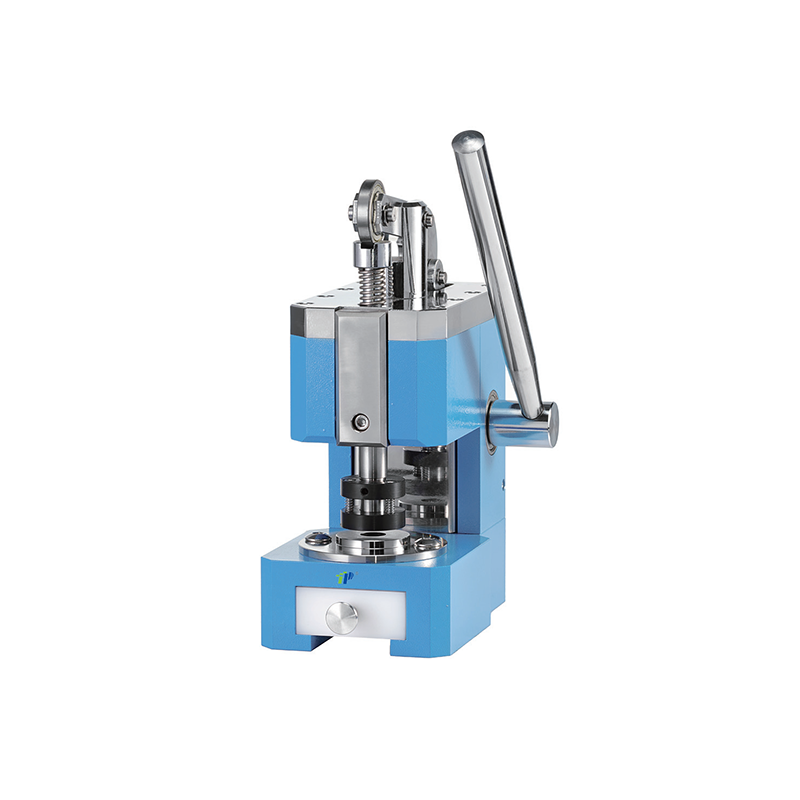

Laboratory Sample Punch / Pelletizer – High-Precision Sheet Punching Machine for Lab Use
Maximum punching pressure: 200 kg, punch stroke: 16 mm
Compatible sheet thickness: 0.01–0.5 mm
Working surface: 120 × 120 mm
Punching die range: Φ3–Φ24 mm (standard Φ14 mm & Φ16 mm)
Material box: anti-static ABS for safe sample handling
Equipment dimensions: 140 × 200 × 400 mm, weight: 12 kg
Digital pressure gauge for precise control, ±0.01 MPa accuracy
Compatible sheet thickness: 0.01–0.5 mm
Working surface: 120 × 120 mm
Punching die range: Φ3–Φ24 mm (standard Φ14 mm & Φ16 mm)
Material box: anti-static ABS for safe sample handling
Equipment dimensions: 140 × 200 × 400 mm, weight: 12 kg
Digital pressure gauge for precise control, ±0.01 MPa accuracy
| Quantity: | |
|---|---|
-
PBS-10
-
TOP
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward;
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward;
