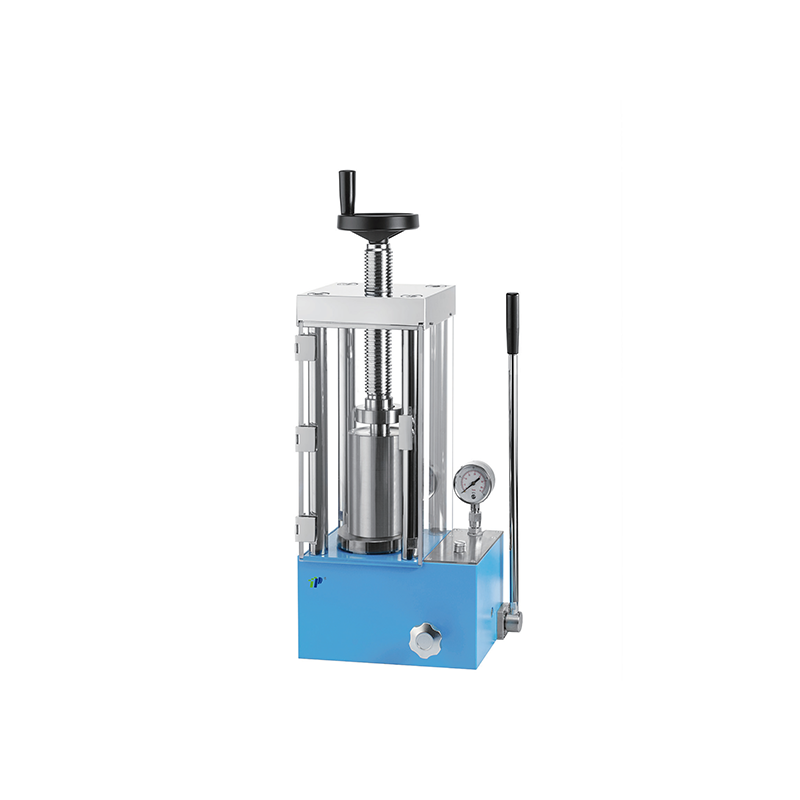

PTP-J Manual High-Pressure Hot Press 0-12/20/40/60 Tons – Lab Press with Dual-Scale Pressure Gauge
Pressure Range & Display: 0–12 / 20 / 40 / 60 tons, dual-scale pressure gauge
Cylinder Diameter & Stroke: 95–150mm diameter, 0–40 / 50mm stroke depending on model
Cavity Size & Pressure: Φ22–50×150mm, maximum cavity pressure 300MPa
Working Dimensions & Weight: Overall dimensions 305×195×530mm – 405×240×720mm; weight 80–180KG
Safety Protection: Plexiglass protective door for safe operation
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, extended tension spring, high-speed steel mold, all-aluminum alloy handwheel, special plunger with no oil leakage
Operation: Ergonomic pressurizing device positioned at bottom corner for labor-saving manual operation
Cylinder Diameter & Stroke: 95–150mm diameter, 0–40 / 50mm stroke depending on model
Cavity Size & Pressure: Φ22–50×150mm, maximum cavity pressure 300MPa
Working Dimensions & Weight: Overall dimensions 305×195×530mm – 405×240×720mm; weight 80–180KG
Safety Protection: Plexiglass protective door for safe operation
Construction & Features: Chrome-plated oil cylinder, integrated mainboard, extended tension spring, high-speed steel mold, all-aluminum alloy handwheel, special plunger with no oil leakage
Operation: Ergonomic pressurizing device positioned at bottom corner for labor-saving manual operation
| Quantity: | |
|---|---|
-
PTP-60J / 40J / 20J / 12J
-
TOP
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward;
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward;
