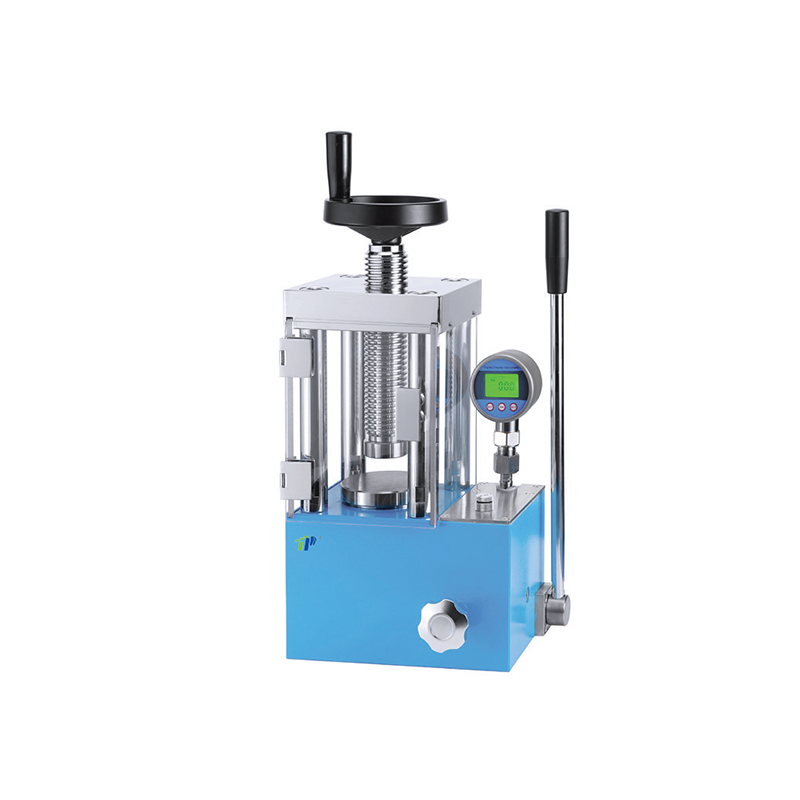

PC-FS Laboratory Hydraulic Press 0-60 Tons – High-Precision Digital Pellet Press
Pressure Range: 0–15T / 0–24T / 0–30T / 0–40T / 0–60T
Cylinder Diameter & Stroke: 80–150mm diameter, 0–30/40/50mm stroke
Display Accuracy & Screen: Digital pressure gauge, 0.01 tons
Working Space: 80×140mm – 180×210mm
Overall Dimensions & Weight: 260×175×405mm / 42KG – 400×250×560mm / 130KG
Construction & Materials: Integrated mainboard, chrome-plated oil cylinder, high-speed steel molds, aluminum alloy handwheel
Pressurizing Feature: Bottom-corner design for labor-saving operation
Cylinder Diameter & Stroke: 80–150mm diameter, 0–30/40/50mm stroke
Display Accuracy & Screen: Digital pressure gauge, 0.01 tons
Working Space: 80×140mm – 180×210mm
Overall Dimensions & Weight: 260×175×405mm / 42KG – 400×250×560mm / 130KG
Construction & Materials: Integrated mainboard, chrome-plated oil cylinder, high-speed steel molds, aluminum alloy handwheel
Pressurizing Feature: Bottom-corner design for labor-saving operation
| Quantity: | |
|---|---|
-
PTP-15FS/24FS/30FS/40FS/60FS
-
TOP
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward
