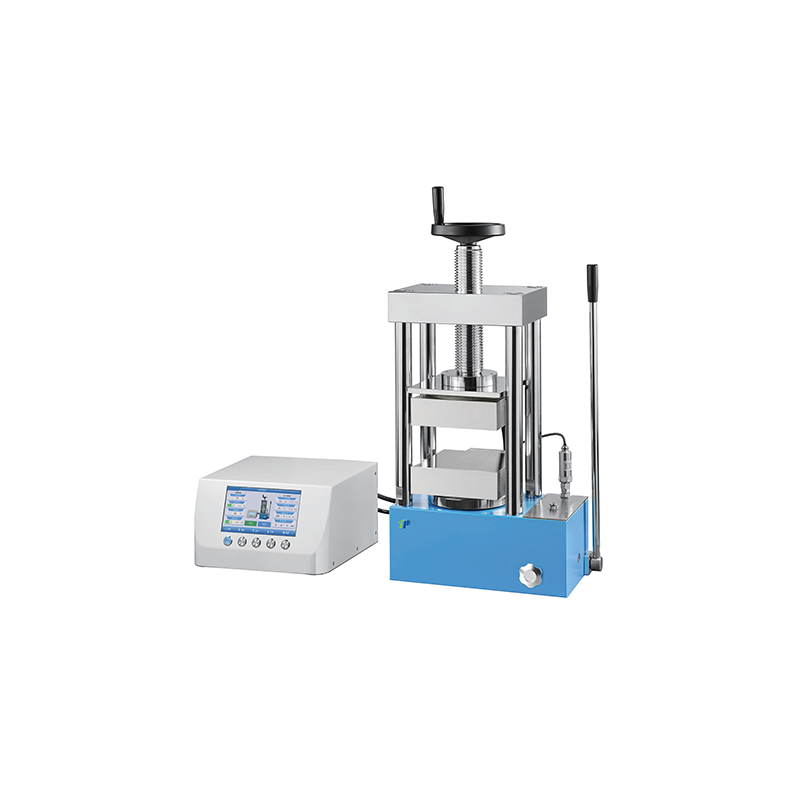

Laboratory Hydraulic Heated Press Machine with Programmable Temperature & Precision Pressure – 24T/30T/40T Models
Pressure Range: 0–24T / 0–30T / 0–40T
Pressure Accuracy: ±0.01T; Temperature Accuracy: ±0.1°C
Temperature Range: 0–300°C / 500°C (High Temp Option)
Heating Method: Multi-stage heating or cooling program
Flat Plate Size: 100×100mm (octagonal) / 200×200mm / 300×300mm
Display: 7-inch Touch Screen Control
Power Supply: 220V/110V, 500–3500W; Weight: 60–350KG
Pressure Accuracy: ±0.01T; Temperature Accuracy: ±0.1°C
Temperature Range: 0–300°C / 500°C (High Temp Option)
Heating Method: Multi-stage heating or cooling program
Flat Plate Size: 100×100mm (octagonal) / 200×200mm / 300×300mm
Display: 7-inch Touch Screen Control
Power Supply: 220V/110V, 500–3500W; Weight: 60–350KG
| Quantity: | |
|---|---|
-
PMH-600C/600D/600E
-
TOP
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward
