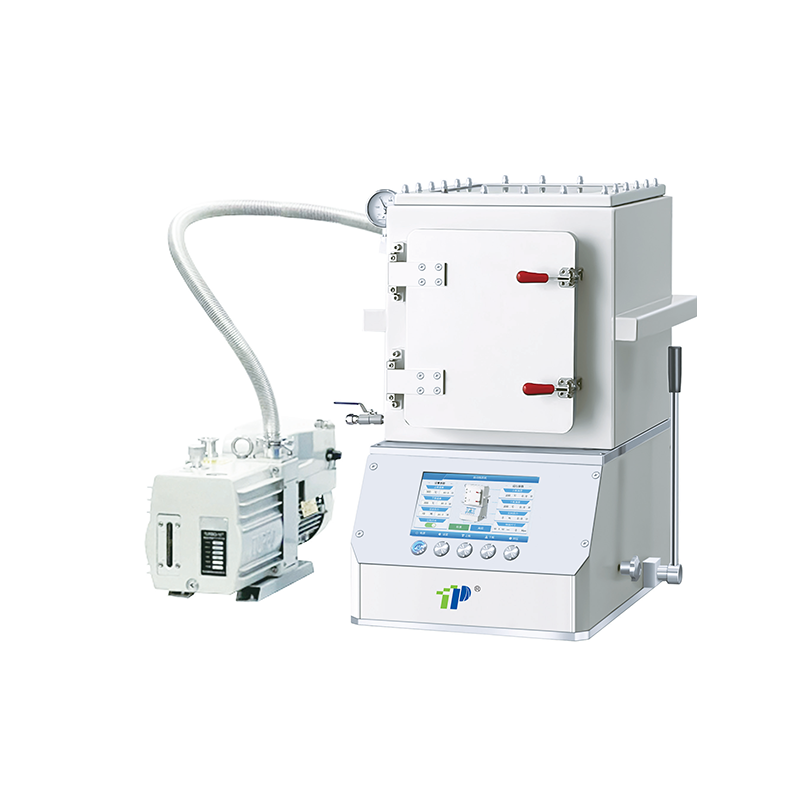

PTP-600Z High-Temperature Vacuum Hot Press 0-5/10/15 Tons – 7-Inch Touch Screen Lab Press
Pressure Range & Accuracy: 0–5 / 10 / 15 tons, 0.01 tons digital display
Temperature Range: 0–300℃ / 500℃, multi-stage heating or cooling program
Vacuum Capability: -0.1MPa for vacuum pressing
Flat Plate & Working Space: 120×120mm / 200×200mm / 300×300mm; working space 55–70mm
Display Screen: 7-inch touch screen for precise control
Overall Dimensions & Weight: 400×450×700mm – 550×650×800mm; 160–420KG
Power Supply & Features: 220V/110V, 0.6–4.5KW; chrome-plated cylinder, integrated mainboard, high-speed steel mold, aluminum alloy handwheel, customized plunger with no oil leakage
Temperature Range: 0–300℃ / 500℃, multi-stage heating or cooling program
Vacuum Capability: -0.1MPa for vacuum pressing
Flat Plate & Working Space: 120×120mm / 200×200mm / 300×300mm; working space 55–70mm
Display Screen: 7-inch touch screen for precise control
Overall Dimensions & Weight: 400×450×700mm – 550×650×800mm; 160–420KG
Power Supply & Features: 220V/110V, 0.6–4.5KW; chrome-plated cylinder, integrated mainboard, high-speed steel mold, aluminum alloy handwheel, customized plunger with no oil leakage
| Quantity: | |
|---|---|
-
PTP-600ZC/ZD/ZE
-
TOP
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward;
1. The upper plate adopts electroplated countersunk hexagon screws, which is beautiful, space-saving and does not hit your hands;
2. The chrome-plated oil cylinder has a smooth surface and does not rust, and the rubber ring has a good sealing effect and does not leak oil;
3. The integrated mainboard structure, oil pool, mainboard, and oil cylinder are on one main body without sealing connection;
4. The extended tension spring has a good rebound effect and is not easy to deform, and can achieve a 30mm return stroke of the oil cylinder without deformation;
5. The all-aluminum alloy handwheel is beautiful, practical, and not easy to break;
6. The mold adopts high-speed steel imported from Japan, with good material, high hardness, no deformation, and long service life;
7. The digital pressure gauge has more accurate pressure control and the pressure display accuracy is 0.01MMPa;
8. The oil pool is on the surface of the main machine, which is easy to replace the engine oil, and the oil circuit adds a hydraulic oil filter device;
9. The special plunger adopts a special customized sealing structure, with good sealing effect and no oil leakage;
10. The pressurizing device is placed at the bottom corner of the main machine, with a reasonable angle, and the pressurization is labor-saving and does not lean forward;
