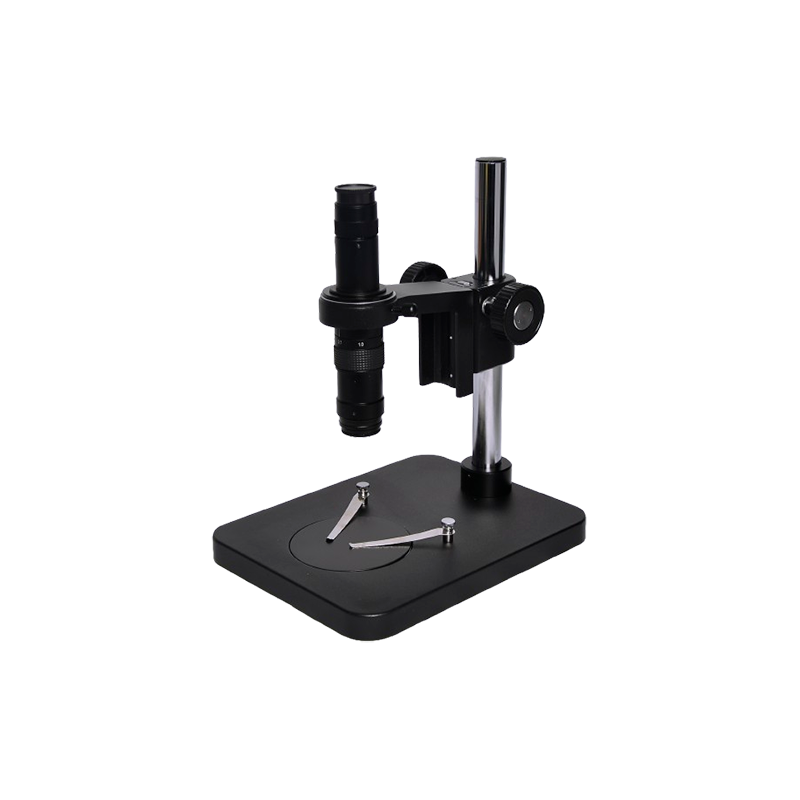

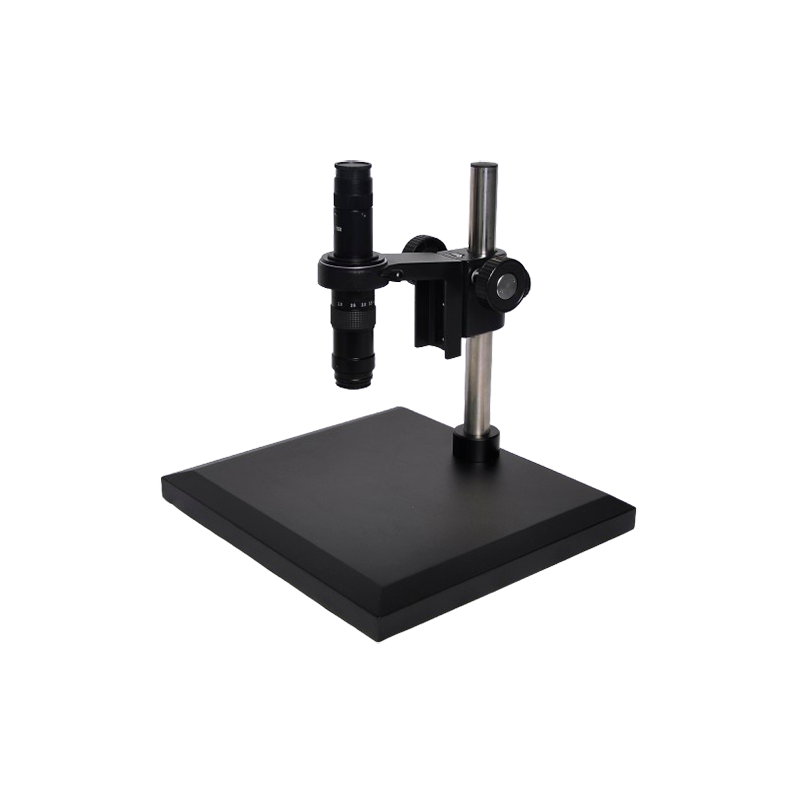

TDL45 Series Stereo Zoom Microscopes with Wide Magnification & Long Working Distance

Continuous zoom objective: 0.7X to 4.5X, smooth and flicker-free magnification.
Optical magnification range: 0.12X to 18X (with CCD eyepiece and auxiliary objectives).
Working distance options: 198mm, 131mm, 96mm, 63mm, depending on lens configuration.
Interchangeable CCD eyepieces: 0.35X / 0.5X / 0.75X / 1X / 1.5X / 2X.
Optional objective lenses: 0.5X / 0.75X / 1X / 1.5X / 2X.
Wide field of view: up to 46mm, ensuring large area observation.
Compatible with various lighting sources and stand bases.

Quantity:
Availability:





Inquire Add to Basket

Model:
TDL series
Brand:
TOP

1. The whole process of magnification is clear, no flicker

2. Objective lens continuous magnification 0.7X~4.5X.

3. Main unit size φ39mm, φ45mm, plus connecting sleeve φ76mm.

4. 0.35X, 0.5X (standard configuration), 0.75X, 1X CCD photographic eyepiece optional

5. 0.5X, 0.75X, 1X (standard configuration), 1.5X, 2X objective lens optional

6. Various light sources and various bases can be selected

monocular continuous zoom microscope continuous zoom monocular microscope best monocular continuous zoom microscope digital monocular continuous zoom microscope high magnification monocular continuous zoom microscope compact monocular continuous zoom microscope affordable monocular continuous zoom microscope industrial monocular continuous zoom microscope monocular continuous zoom microscope with camera monocular continuous zoom microscope for inspection

Objective	Project	CCD eyepiece
Objective	Project	0.35X	0.5X	0.75X	1X	1.5X	2X
0.5X	Optical magnification factor	0.1225~0.7875	0.175~1.125	0.2625~1.688	0.35~2.25	0.525~3.375	0.5~4.5
	Field of view range	46~7	35~5	23.5~4	17.6~3	11.8~2	8.8-1~3
	Working distance	198
0.75X	Optical magnification factor	0.18375~1.18125	0.2625~1.6875	0.39375~2.53125	0.525~3.375	0.7875~5.0625	1.05~6.75
	Field of view range	31-4.7	23.5-3.6	15.7-2.4	12-1.8	7.8-1.2	6-0.9
	Working distance	131
1X	Optical magnification factor	0.245~1.575	0.35~2.25	0.525~3.375	0.7~4.5	1.05~6.75	1.4~9
	Field of view range	23-3	17.6-2.7	12-1.8	9-16	6-0.98	4-0.7
	Working distance	96
1.5X	Optical magnification factor	0.3675~2.3625	0.525~3.375	0.7875~5.0625	1.05~6.75	1.575~10.125	2.1~13.5
	Field of view range	15-2.3	11.8-1.8	7.8-1.2	6-0.99	4-0.61	3-0.4
	Working distance	63
2X	Optical magnification factor	0.49-3.15	0.7~4.5	1.05~6.75	1.4~9	2.1~13.5	2.8~18
2X	Field of view range	11.6-1.7	8.8-1.3	6-0.9	4-0.71	3-0.41

Objective	Project	CCD eyepiece
Objective	Project	0.35X	0.5X	0.75X	1X	1.5X	2X
0.5X	Optical magnification factor	0.1225~0.7875	0.175~1.125	0.2625~1.688	0.35~2.25	0.525~3.375	0.5~4.5
	Field of view range	46~7	35~5	23.5~4	17.6~3	11.8~2	8.8-1~3
	Working distance	198
0.75X	Optical magnification factor	0.18375~1.18125	0.2625~1.6875	0.39375~2.53125	0.525~3.375	0.7875~5.0625	1.05~6.75
	Field of view range	31-4.7	23.5-3.6	15.7-2.4	12-1.8	7.8-1.2	6-0.9
	Working distance	131
1X	Optical magnification factor	0.245~1.575	0.35~2.25	0.525~3.375	0.7~4.5	1.05~6.75	1.4~9
	Field of view range	23-3	17.6-2.7	12-1.8	9-16	6-0.98	4-0.7
	Working distance	96
1.5X	Optical magnification factor	0.3675~2.3625	0.525~3.375	0.7875~5.0625	1.05~6.75	1.575~10.125	2.1~13.5
	Field of view range	15-2.3	11.8-1.8	7.8-1.2	6-0.99	4-0.61	3-0.4
	Working distance	63
2X	Optical magnification factor	0.49-3.15	0.7~4.5	1.05~6.75	1.4~9	2.1~13.5	2.8~18
2X	Field of view range	11.6-1.7	8.8-1.3	6-0.9	4-0.71	3-0.41

Objective	Project	CCD eyepiece
Objective	Project	0.35X	0.5X	0.75X	1X	1.5X	2X
0.5X	Optical magnification factor	0.1225~0.7875	0.175~1.125	0.2625~1.688	0.35~2.25	0.525~3.375	0.5~4.5
	Field of view range	46~7	35~5	23.5~4	17.6~3	11.8~2	8.8-1~3
	Working distance	198
0.75X	Optical magnification factor	0.18375~1.18125	0.2625~1.6875	0.39375~2.53125	0.525~3.375	0.7875~5.0625	1.05~6.75
	Field of view range	31-4.7	23.5-3.6	15.7-2.4	12-1.8	7.8-1.2	6-0.9
	Working distance	131
1X	Optical magnification factor	0.245~1.575	0.35~2.25	0.525~3.375	0.7~4.5	1.05~6.75	1.4~9
	Field of view range	23-3	17.6-2.7	12-1.8	9-16	6-0.98	4-0.7
	Working distance	96
1.5X	Optical magnification factor	0.3675~2.3625	0.525~3.375	0.7875~5.0625	1.05~6.75	1.575~10.125	2.1~13.5
	Field of view range	15-2.3	11.8-1.8	7.8-1.2	6-0.99	4-0.61	3-0.4
	Working distance	63
2X	Optical magnification factor	0.49-3.15	0.7~4.5	1.05~6.75	1.4~9	2.1~13.5	2.8~18
2X	Field of view range	11.6-1.7	8.8-1.3	6-0.9	4-0.71	3-0.41

Objective	Project	CCD eyepiece
Objective	Project	0.35X	0.5X	0.75X	1X	1.5X	2X
0.5X	Optical magnification factor	0.1225~0.7875	0.175~1.125	0.2625~1.688	0.35~2.25	0.525~3.375	0.5~4.5
	Field of view range	46~7	35~5	23.5~4	17.6~3	11.8~2	8.8-1~3
	Working distance	198
0.75X	Optical magnification factor	0.18375~1.18125	0.2625~1.6875	0.39375~2.53125	0.525~3.375	0.7875~5.0625	1.05~6.75
	Field of view range	31-4.7	23.5-3.6	15.7-2.4	12-1.8	7.8-1.2	6-0.9
	Working distance	131
1X	Optical magnification factor	0.245~1.575	0.35~2.25	0.525~3.375	0.7~4.5	1.05~6.75	1.4~9
	Field of view range	23-3	17.6-2.7	12-1.8	9-16	6-0.98	4-0.7
	Working distance	96
1.5X	Optical magnification factor	0.3675~2.3625	0.525~3.375	0.7875~5.0625	1.05~6.75	1.575~10.125	2.1~13.5
	Field of view range	15-2.3	11.8-1.8	7.8-1.2	6-0.99	4-0.61	3-0.4
	Working distance	63
2X	Optical magnification factor	0.49-3.15	0.7~4.5	1.05~6.75	1.4~9	2.1~13.5	2.8~18
2X	Field of view range	11.6-1.7	8.8-1.3	6-0.9	4-0.71	3-0.41
