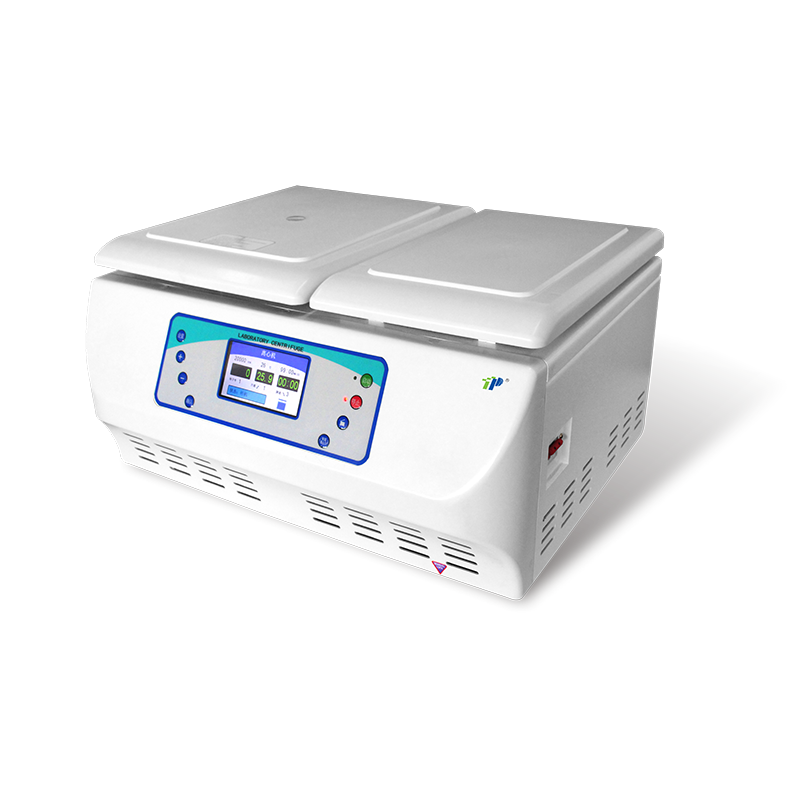

TGL16MB Bench-Top Refrigerated Centrifuge for Molecular Diagnostics & Biological Research, 16000 RPM High-Speed Microcentrifuge
You are here: home » Products » Centrifuges » High Speed Centrifuges » TGL16MB Bench-Top Refrigerated Centrifuge for Molecular Diagnostics & Biological Research, 16000 RPM High-Speed Microcentrifuge

Product Category

TGL16MB Bench-Top Refrigerated Centrifuge for Molecular Diagnostics & Biological Research, 16000 RPM High-Speed Microcentrifuge

Max speed: 16,000 rpm; Max RCF: 21,627 × g
Max capacity: 4×100 ml tubes and 48×1.5/2.2 ml tubes for angle rotor
Temperature range: -20℃ to +40℃ with ±2℃ accuracy (for refrigeration models)
Microprocessor control with programmable memory, speed, time, temperature, acceleration/deceleration
Safety features: electronic lock, imbalance protection, over-speed and over-temperature protection
LCD digital display with recall of last settings and parameter adjustment during operation
Optional features: automatic lid opening, short spin, rotor identification

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

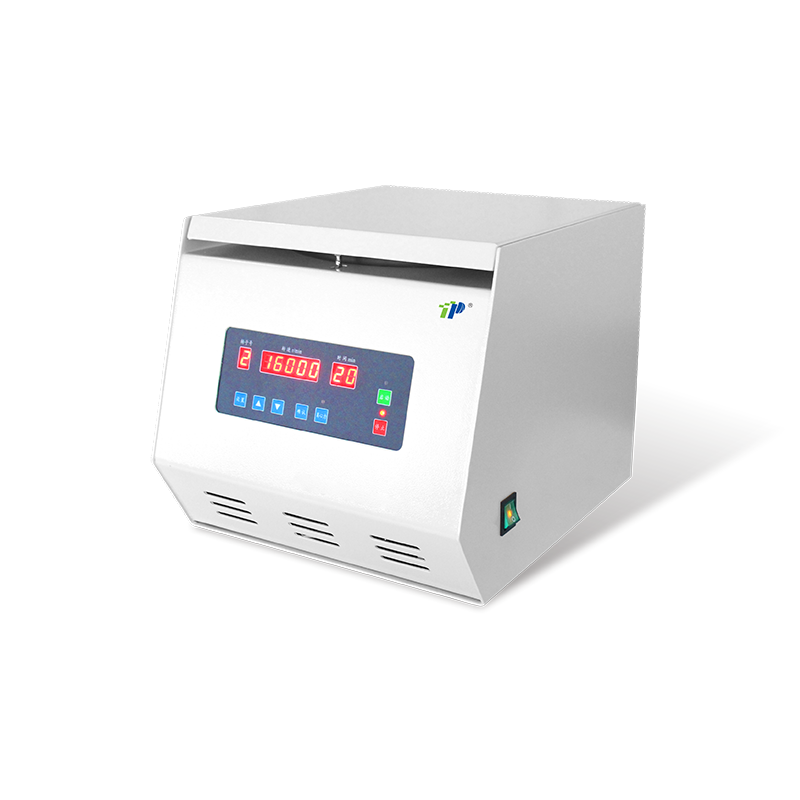

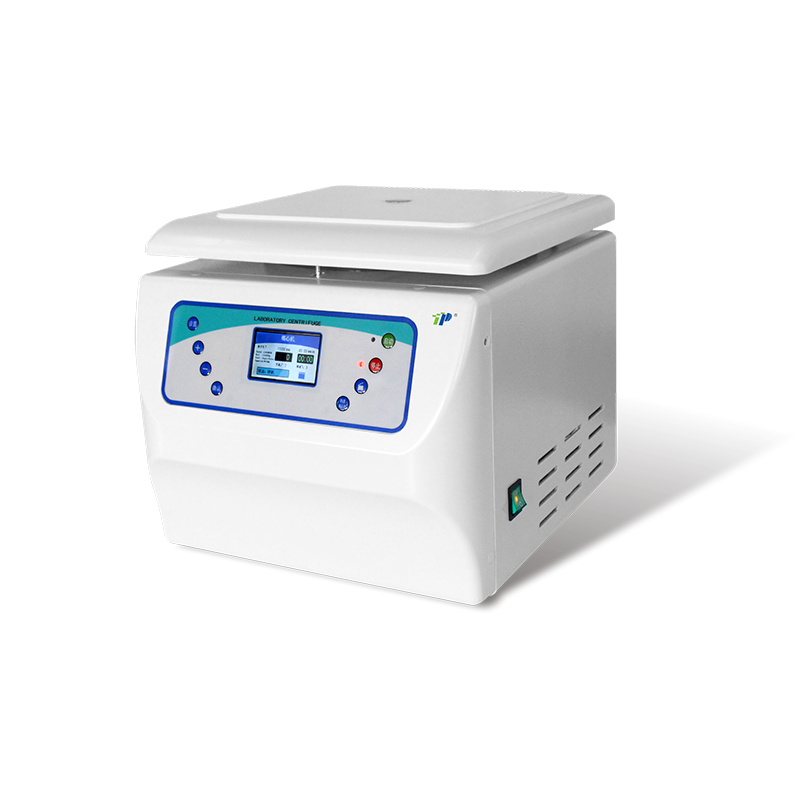

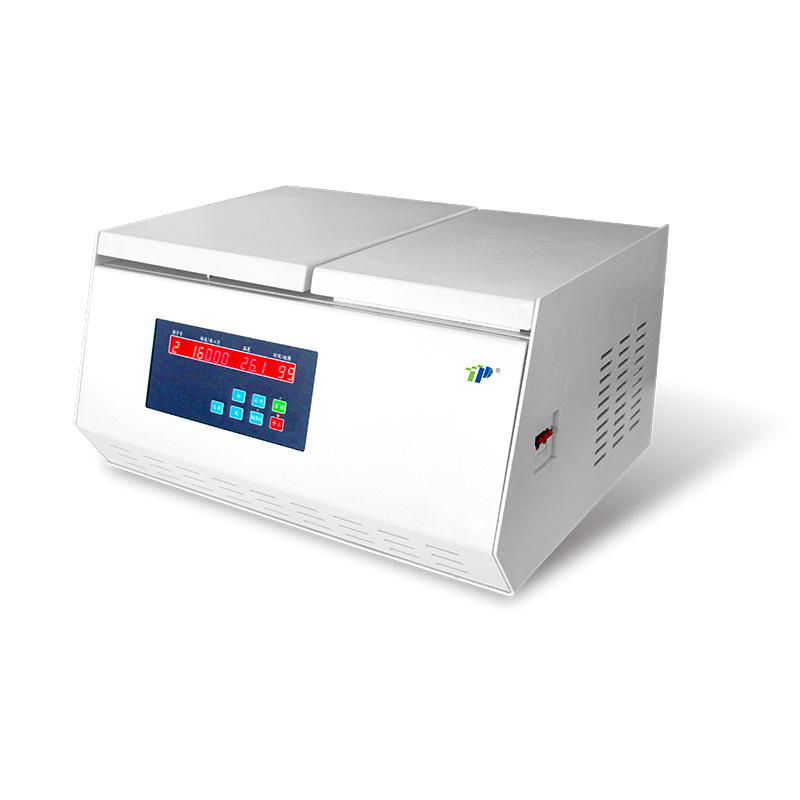

  • TGL16MB/TGL16M/TZ-16T/TG16W

  • TOP

It is a compact bench-top microliter centrifuge for medical and biological research, molecular diagnostics, biochemistry, immunology and cell technologies. It can be used for extracting RNA/DNA samples, separation of cell suspensions and other micro quantitative analyses.


Feature:

1. Power coated housing. Stainless steel chamber with guarding ring.

2. Reliable drive system. Variable frequency motor maintenance free.

3. Electronic safety lock prevent cover opening during centrifugation.

4. Manually lid open in case of failure or emergency.

5. Pneumatic spring supports prevent falling of lid.

6. Pre-cooling during standstill. CFC free refrigeration system (only for refrigeration models).

7. Recall of last settings. Parameters can be changed during operation.

8. Microprocessor control of all functions: speed, time, temperature, *acceleration/deceleration, RCF, *program memory, error display.

9. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.

10. Special rotor connector which makes it easy to load and unload the rotor.

11. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).

12. Optional: Automatic lid opening at the end of run.

13. Optional: Short spin.

14. Optional: Rotor identification.

15. Optional: Program memory for TGL16MB.


Technical data:

Model

TGL16MB

TGL16M

TZ-16T

TG16WS

Max. RPM/RCF for angle rotor

16000rpm / 21627×g

Max. RPM/RCF for swing rotor

6000rpm / 4492×g

-

-

Max. Capacity for angle rotor

4×100ml, 48×1.5/2.2ml

Max. Capacity for swing rotor

4×10ml, 48-well plates

-

-

Speed Increment

10rpm

50rpm

Speed Accuracy

±20rpm

Temp. Range

-20℃~+40℃

-

-

Temp. Accuracy

±2℃

-

-

Timer Range

0min~99min59s

1min~99min

0min~99min59s

1min~99min

Acc / Dec rates

10/10

-

10/10

-

Program Memory

*15

-

-

-

Power Supply

AC220V / 50~60Hz

Power Requirement

1KW

500W

Noise

<55db

Display

LCD Screen

Digital display

LCD Screen

Digital display

Machine Body

Plastic and metal frame

Metal frame

Plastic and metal frame

Metal frame

Net Weight (without rotor)

58kg

66kg

25kg

26kg

Machine Dimension(L×W×H)

620×500×350mm

620×480×350mm

350×410×340mm

330×390×330mm


Rotor List

Angle Rotor

AAR4802

AAR1205-1

AAR4805

Max.Capacity

4×8×0.2ml

12×0.5ml

48×0.5ml

Max. Speed

14000rpm

16000rpm

12000rpm

Max. RCF

15418×g

13034×g

11876×g

Angle

45°

45°

45°

ØxL(mm)

6.5×16mm

8.5×28.5mm

8.5×28.5mm


Angle Rotor

AAR1215-1

AAR1215-2

AAR2415-1

AAR2415-3

Max.Capacity

12×1.5/2.2ml

12×1.5/2.2ml

24×1.5/2.2ml

24×1.5/2.2ml

Max. Speed

16000rpm

16000rpm

15000rpm

15000rpm

Max. RCF

17446×g

16930×g

21627×g

21627×g

Angle

45°

45°

45°

45°

ØxL(mm)

11×39mm

11×39mm

11×39mm

11×39mm

Adaptor

A20136

12×1×0.5ml

A20136

12×1×0.5ml

A20136

24×1×0.5ml

A20136

24×1×0.5ml

A20137

12×1×0.2ml

A20137

12×1×0.2ml

A20137

24×1×0.2ml

A20137

24×1×0.2ml


Angle Rotor

AAR4815

AA12X5

AA1210

AA2410

Max.Capacity

48×1.5/2.2ml

12×5ml

12×10ml

24×10ml

Max. Speed

12000rpm

13000rpm

12000rpm

10000rpm

Max. RCF

15276×g

12765×g

12698×g

11291×g

Angle

45°

50°

62°

62°

ØxL(mm)

11×39mm

14×51mm

16.5×78mm

16.5×78mm

Adaptor

A20136

48×1×0.5ml

-

-

-

A20137

48×1×0.2ml


Angle Rotor

AA1215

AA4X50

AA6X50-1

AA4100

Max.Capacity

12×15ml

4×50ml

6×50ml

4×100ml

Max. Speed

10000rpm

13000rpm

11000rpm

10000rpm

Max. RCF

11548×g

16661×g

13296×g

10944×g

Angle

62°

61°

61°

62°

ØxL(mm)

16.5×103mm

29.5×96mm

29.5×96mm

38×110mm

Adaptor

A10138

12×1×10ml

A20114

4×1×15ml

A20114

6×1×15ml

-

-

A20115

4×1×10ml

A20115

6×1×10ml

A20116

4×1×5ml

A20116

6×1×5ml

A20117

4×1×1.5/2ml

A20117

6×1×1.5/2ml


Swing Rotor

SG4X10

SG2248

only for refrigeration models

Bucket No.

B20238

B10237

Max.Capacity

4×10ml

2×2×48

Max. Speed

6000rpm

4000rpm

Max. RCF

4492×g

1504×g

ØxL(mm)

16.5×78mm

108×54×29mm
