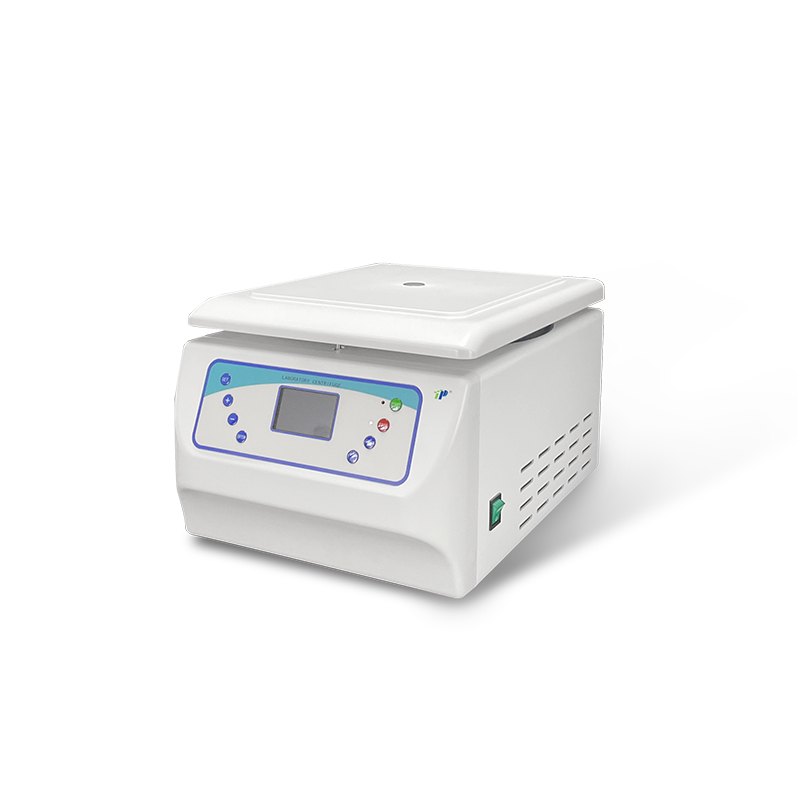

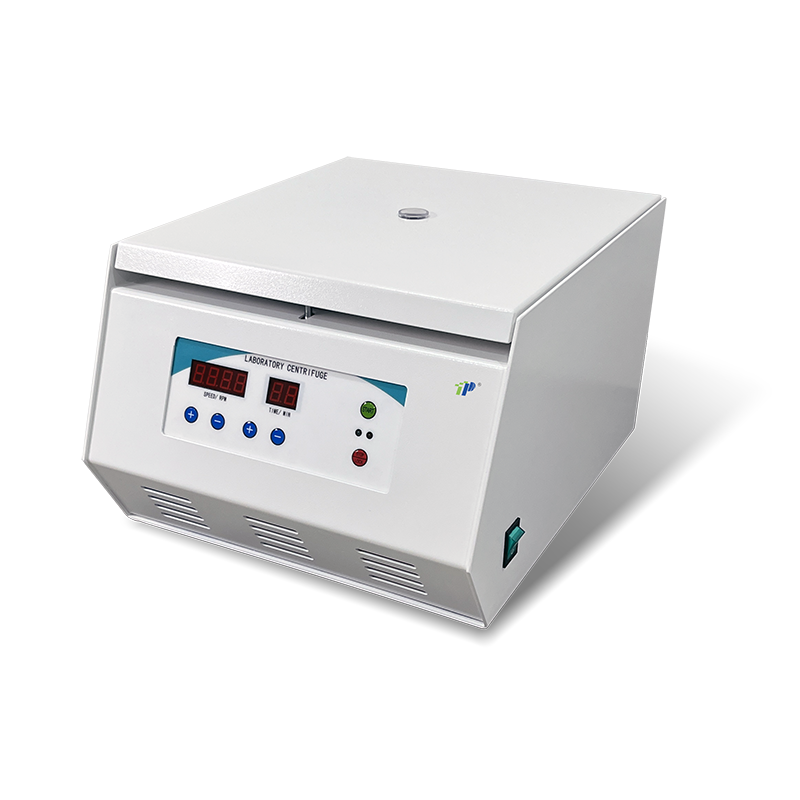

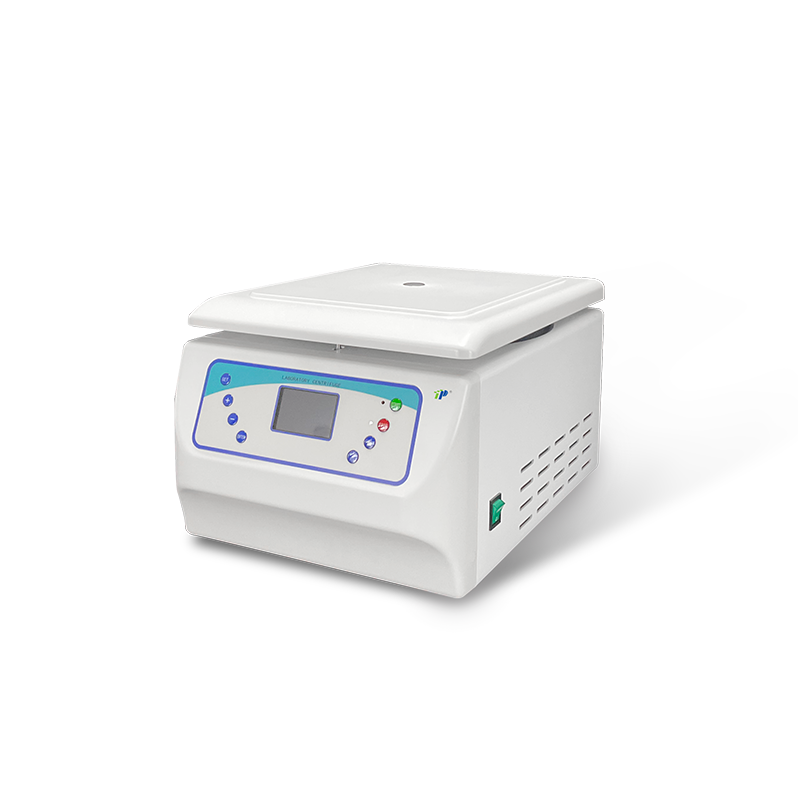

TD4-2 / TZ-4A / TDZ4-WS
TOP
It is suitable for the liquid’s separation in biochemistry, laboratory, pharmaceuticals, bioproducts, and other fields.
Feature:
1. Power coated housing. Stainless steel chamber with guarding ring.
2. Reliable drive system.
3. Electronic safety lock prevent cover opening during centrifugation.
4. Manually lid open in case of failure or emergency.
5. Pneumatic spring supports prevent falling of lid.
6. Recall of last settings. Parameters can be changed during operation.
7. Microprocessor control of all functions: speed, time, temperature, *acceleration/deceleration, RCF, error display.
8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
9. Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
10. Optional: Automatic lid opening at the end of run.
11. Optional: Short spin.
It is suitable for the liquid’s separation in biochemistry, laboratory, pharmaceuticals, bioproducts, and other fields.
Feature:
1. Power coated housing. Stainless steel chamber with guarding ring.
2. Reliable drive system.
3. Electronic safety lock prevent cover opening during centrifugation.
4. Manually lid open in case of failure or emergency.
5. Pneumatic spring supports prevent falling of lid.
6. Recall of last settings. Parameters can be changed during operation.
7. Microprocessor control of all functions: speed, time, temperature, *acceleration/deceleration, RCF, error display.
8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
9. Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
10. Optional: Automatic lid opening at the end of run.
11. Optional: Short spin.
Technical data:
Model | TD4-2 | TZ-4A | TDZ4-WS |
Max. RPM/RCF for angle rotor | 4000rpm / 3312×g | ||
Max. RPM/RCF for swing rotor | 4000rpm / 2673×g | - | |
Max. Capacity for angle rotor | 6×50ml, 18×10ml | 6×50ml, 24×10ml | 6×50ml, 18×10ml |
Max. Capacity for swing rotor | 4×50ml, 12×10ml | - | |
Speed Increment | 10rpm | 10rpm | 10rpm |
Speed Accuracy | ±20rpm | ||
Timer Range | 0min~99min59s | 1min~99min | |
Acceleration / Deceleration rates | 10/10 | - | - |
Power Supply | AC220V / 50~60Hz | ||
Power Requirement | 200W | 60W | |
Motor | Variable frequency motor | Brushless motor | |
Noise | <55db | ||
Screen | LCD Screen | Digital display | |
Machine Body | Plastic and metal frame | Metal frame | |
Net Weight (without rotor) | 22kg | 21kg | 19kg |
Machine Dimension(L×W×H) | 340×480×290mm | 350×440×260mm |
Rotor List:
Angle Rotor | AL1215-1 | AL2410 | ||
Max.Capacity | 12×15ml | 24×10ml | ||
Max. Speed | 4000rpm | 4000rpm | ||
Max. RCF | 2202×g | 2358×g | ||
Angle | 55° | 45° | ||
ØxL(mm) | B30056 18×99mm | B30057 16×89mm | ||
Adaptor | A20122 | 12×1×2ml (vacuum tube) | A20124 | 24×1×2ml (vacuum tube) |
Only for TZ-4A |
Angle Rotor | AL6X50 | AL1220 | AL1810 | AL1210 | ||||
Max.Capacity | 6×50ml | 12×20ml | 18×10ml | 12×10ml | ||||
Max. Speed | 4000rpm | 4000rpm | 4000rpm | 4000rpm | ||||
Max. RCF | 2120×g | 2211×g | 2215×g | 2079×g | ||||
Angle | 55° | 55° | 45° | 45° | ||||
ØxL(mm) | B10441 32×93mm | B30058 22×96mm | B30057 16×89mm | B30057 16×89mm | ||||
Adaptor | A20114 | 6×1×15ml | A20124 | 18×1×2ml (vacuum tube) | A20124 | 12×1×2ml (vacuum tube) | ||
A20115 | 6×1×10ml | |||||||
A20116 | 6×1×5ml | |||||||
A20117 | 6×1×1.5/2ml |
Swing Rotor | SS4X50 | SS8X15 | SS1210 | |||
Cat. No. | B10441 | B11269 | B11239 | |||
Max.Capacity | 4×50ml | 8×15ml | 12×10ml | |||
Max. Speed | 4000rpm | 4000rpm | 4000rpm | |||
Max. RCF | 2413×g | 2673×g | 2623×g | |||
ØxL(mm) | 30.5×92mm | 18×92mm | 18×83mm | |||
Adaptor | A20114 | 4×1×15ml | A20121 | 8×1×5ml (vacuum tube) | A20121 | 12×1×5ml (vacuum tube) |
A20115 | 4×1×10ml | A20122 | 8×1×2ml (vacuum tube) | A20122 | 12×1×2ml (vacuum tube) | |
A20116 | 4×1×5ml | A10123 | 8×1×1.5/2ml | A10123 | 12×1×1.5/2ml | |
A20117 | 4×1×1.5/2ml | - | - | - | - | |
Only for TZ-4A, TD4-2 |
