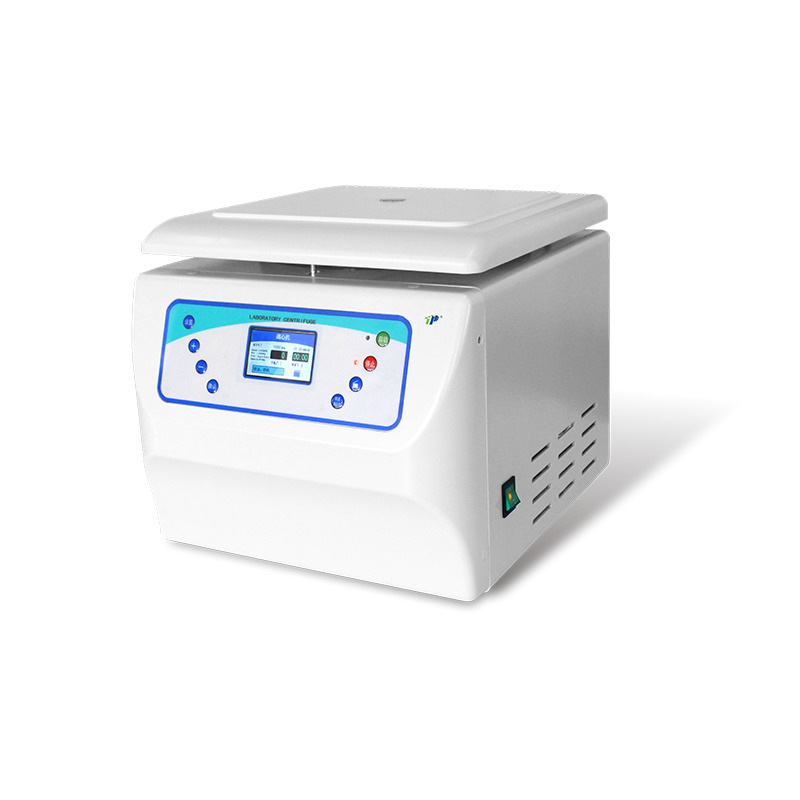

High-Speed Clinical Centrifuge TG12 – 12000 rpm, 24-Sample Capacity, LCD Display

Maximum Speed / RCF: 12000 rpm / 13052×g
Maximum Capacity: 24 samples (Angle Rotor)
Speed Control: Increment of 50 rpm, Accuracy ±20 rpm
Timer Range: 0–99 min 59 s, with 10 acceleration/deceleration rates
Noise Level: <55 dB, variable frequency motor (maintenance-free)
Safety Features: Electronic safety lock, imbalance and over-temperature protection
Display: LCD screen with real-time parameter monitoring

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TG12

  • TOP

It is widely used in clinical medicine, immunology, etc.


Feature:

1. Power coated housing. Stainless steel chamber with guarding ring.

2. Reliable drive system. Variable frequency motor maintenance free.

3. Electronic safety lock prevent cover opening during centrifugation.

4. Manually lid open in case of failure or emergency.

5. Pneumatic spring supports prevent falling of lid.

6. Recall of last settings. Parameters can be changed during operation.

7. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, error display.

8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.

9. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).

10. Optional: Automatic lid opening at the end of run.

11. Optional: Short spin.


Technical data


Model

TG12

Max. RPM/RCF

12000rpm /13052×g

Max. Capacity

24 samples

Speed Increment

50rpm

Speed Accuracy

±20rpm

Timer Range

0min~99min59s

Acc / Dec rates

10/10

Program Memory

-

Power Supply

AC220V / 50~60Hz

Power Requirement

500W

Noise

<55db

Display

LCD Screen

Machine Body

Plastic and metal frame

Net Weight (without rotor)

25kg

Machine Dimension(L×W×H)

350×410×340mm

Rotor List


Angle Rotor

AP-24

Max.Capacity

24 samples

Max. Speed

12000rpm

Max. RCF

13052×g

Angle
