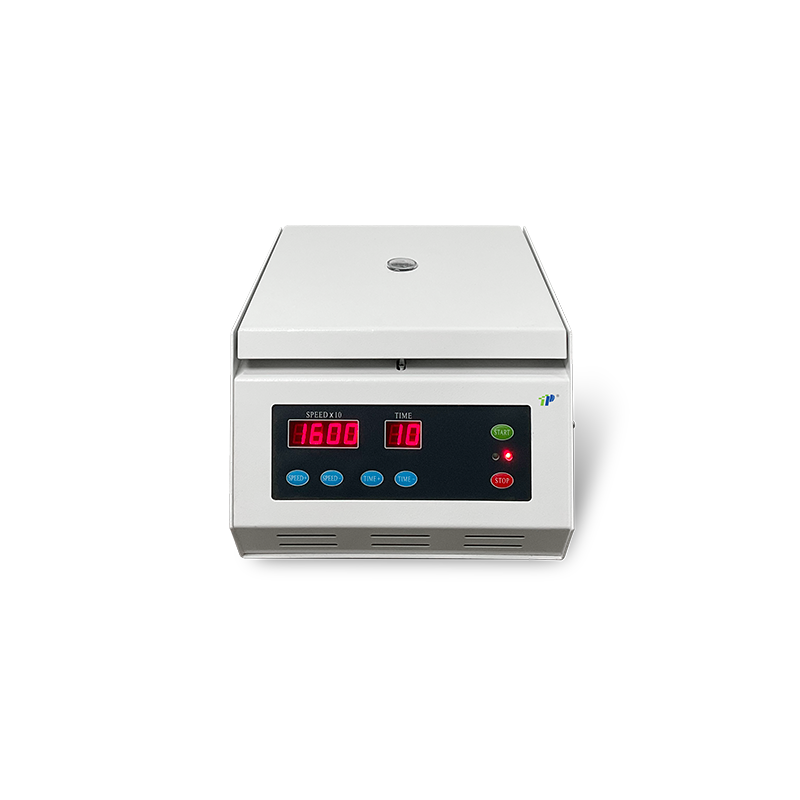

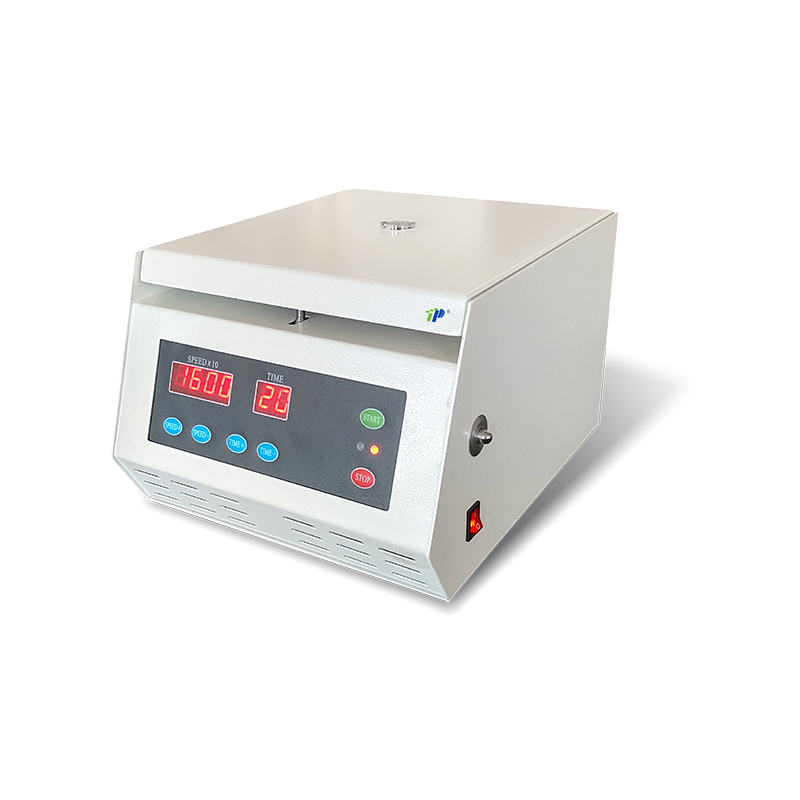

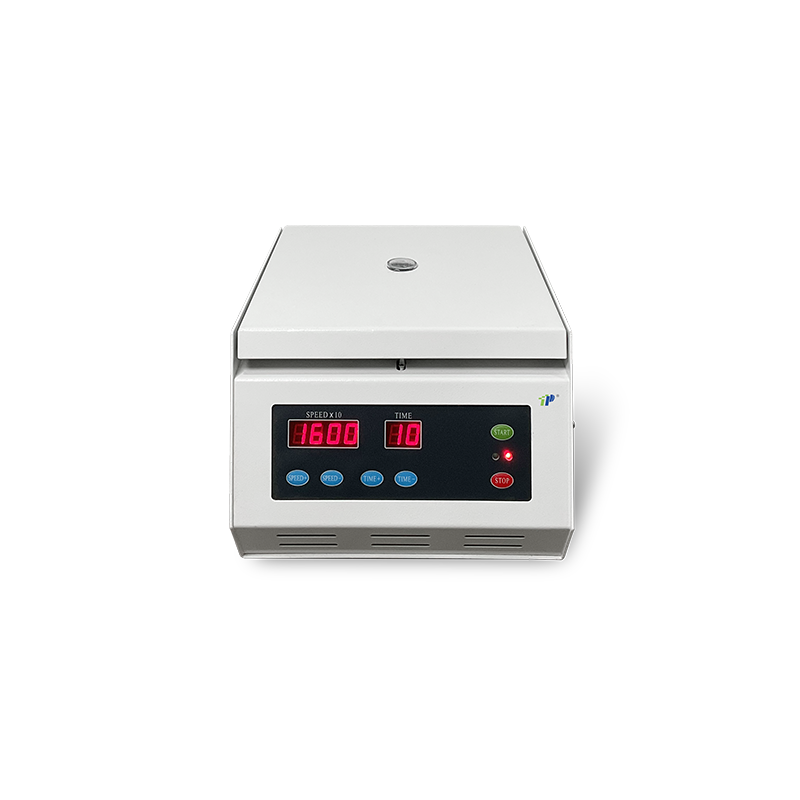

High Speed Microcentrifuge TG16W, 16000 rpm, 12 × 2 mL / 5 mL Tube Capacity

You are here: home » Products » Centrifuges » High Speed Centrifuges » High Speed Microcentrifuge TG16W, 16000 rpm, 12 × 2 mL / 5 mL Tube Capacity

Product Category

TG16W Non-refrigerated Benchtop High Speed Centrifuge

High Speed Microcentrifuge TG16W, 16000 rpm, 12 × 2 mL / 5 mL Tube Capacity

Max. Speed / RCF: 16000 rpm / 17446 × g
Max. Capacity: 12 × 1.5/2.2 mL, 12 × 5 mL (with adapters for 0.2 mL & 0.5 mL)
Speed Accuracy: ±20 rpm, increment 50 rpm
Timer Range: 1–99 min
Motor Type: Brushless, maintenance-free
Noise Level: < 52 dB
Dimensions / Weight: 250 × 315 × 200 mm, 12 kg

Quantity:
Availability:





Inquire Add to Basket

Model:
TG16W
Brand:
TOP

It is suitable for the separation of micro samples in biology, medicine, scientific research, etc.

Features:

1. Power coated housing. Stainless steel chamber with guarding ring.

2. Compact design saves your working desk space.

3. Reliable drive system. Brushless motor maintenance free.

4. Recall of last settings. Parameters can be changed during operation.

5. Microprocessor control of all functions: speed, time, error display.

6. The self-diagnostic system provides protection for imbalance, speed/voltage.

7. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).

Non-refrigerated Benchtop Centrifuge High Speed Benchtop centrifuge Room Temperature Centrifuge Machine Laboratory High Speed Centrifuge Without Cooling Clinical Benchtop Centrifuge for Blood Samples 16000 RPM Benchtop Centrifuge Low-Noise Non-refrigerated Centrifuge Compact High Speed Centrifuge for Labs Best Non-refrigerated Centrifuge for Small Labs University teaching lab centrifuge

Related Products

High-Speed Refrigerated Laboratory Centrifuge | 6000–20000 rpm, -60℃ to 40℃, Multiple Rotor Options

High-Speed PRP Centrifuge TF-1 for Fat Purification and Orthopedic Applications | 5000 rpm, Multiple Rotor Options

Non-refrigerated Benchtop Capillary Centrifuge

High-Speed Clinical Centrifuge TG12 – 12000 rpm, 24-Sample Capacity, LCD Display

TB-12 Mini Centrifuge | 12000rpm High-Speed Laboratory Micro Centrifuge for PCR Tubes and Micro Samples

Non-refrigerated Benchtop Low Speed Centrifuge

High-Speed Laboratory Centrifuge 4000 rpm with Microprocessor Control for Biochemical and Pharmaceutical Applications

High-Speed Refrigerated Laboratory Centrifuge 5000 rpm, 4×400 ml Swing Rotor, Microprocessor Control, ISO Certified

Refrigerated Benchtop Low Speed Centrifuge

High-Speed Refrigerated Laboratory Centrifuge TZ-5MT / TDL5M – 5500rpm, LCD Touch Screen, Large Capacity

High Speed Refrigerated Centrifuge with Angle & Swing Rotors, 6000 rpm, 50 ml × 6, LCD Display, Low Noise

High Speed Laboratory Centrifuge TD6 Series – 6000 rpm, Angle & Swing Rotors, 4×500 ml Max Capacity

T3H16R1 Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Microcentrifuge 16000rpm for PCR & Molecular Biology | Compact Lab Centrifuge for 1.5ml, 2.2ml, 5ml Tubes

TG16000 Non-refrigerated Benchtop High Speed Centrifuge

High Speed Refrigerated Laboratory Centrifuge 16000rpm with Touch Screen and Rotor Recognition for Biotech & Clinical Use

TGL-1600R Bench-Top High-Speed Freezing Centrifuge

TGL-R Series Refrigerated High Speed Microcentrifuge with LCD Display and Multiple Rotor Options

Compact Microcentrifuge with Brushless Motor | 12,000 rpm | Low Noise & High Precision

Capillary Tube Blood Centrifuge TGL-12M – 12000rpm Hematocrit Microcentrifuge for Lab Use

High-Speed Refrigerated Desktop Centrifuge | 10000–18500 rpm | Lab & Clinical Use

Non-refrigerated Benchtop High Speed Centrifuge

High-Speed Laboratory Centrifuge TG21000 with 21,000 RPM, 32,898×g RCF, Touchscreen Control & Safety Features

TGL16MB Bench-Top Refrigerated Centrifuge for Molecular Diagnostics & Biological Research, 16000 RPM High-Speed Microcentrifuge

High Speed Refrigerated Microcentrifuge TGL-20MB with Touchscreen, 20,000 RPM, -20°C to 40°C Temperature Control, 4×100ml Capacity for Medical & Biological Research

Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Centrifuge 21000 RPM with Touch Screen & Large Capacity for Medical and Biotech Labs

High Speed Refrigerated Centrifuge 21000 RPM with Touchscreen for Clinical & Biotech Applications

Model	TG16W
Max. RPM/RCF for angle rotor	16000rpm / 17446×g
Max. Capacity for angle rotor	12×1.5/2.2ml, 12×5ml
Speed Increment	50rpm
Speed Accuracy	±20rpm
Timer Range	1~99min
Power Supply	AC220V / 50~60Hz
Power Requirement	220W
Noise	<52db
Screen	Digital display
Machine Body	Metal frame
Net Weight (without rotor)	12kg
Machine Dimension（L×W×H）	25×315×200mm (L×W×H)

Angle Rotor	AAR1205-1		AAR1215-1		AA12X5
Max.Capacity	12×0.5ml		12×1.5/2.2ml		12×5ml
Max. Speed	16000rpm		16000rpm		13000rpm
Max. RCF	13034×g		17446×g		12765×g
Angle	45°		45°		50°
ØxL(mm)	8.4×28.5mm		11×39mm		14×51mm
Adaptor	-	-	A20136	12×1×0.5ml	-	-
	-	-	A20137	12×1×0.2ml	-	-

Model	TG16W
Max. RPM/RCF for angle rotor	16000rpm / 17446×g
Max. Capacity for angle rotor	12×1.5/2.2ml, 12×5ml
Speed Increment	50rpm
Speed Accuracy	±20rpm
Timer Range	1~99min
Power Supply	AC220V / 50~60Hz
Power Requirement	220W
Noise	<52db
Screen	Digital display
Machine Body	Metal frame
Net Weight (without rotor)	12kg
Machine Dimension（L×W×H）	25×315×200mm (L×W×H)

Angle Rotor	AAR1205-1		AAR1215-1		AA12X5
Max.Capacity	12×0.5ml		12×1.5/2.2ml		12×5ml
Max. Speed	16000rpm		16000rpm		13000rpm
Max. RCF	13034×g		17446×g		12765×g
Angle	45°		45°		50°
ØxL(mm)	8.4×28.5mm		11×39mm		14×51mm
Adaptor	-	-	A20136	12×1×0.5ml	-	-
	-	-	A20137	12×1×0.2ml	-	-
