TB-12 Mini Centrifuge | 12000rpm High-Speed Laboratory Micro Centrifuge for PCR Tubes and Micro Samples

Max speed / RCF: 12000rpm / 7900×g
Max capacity: 8×2ml, 4×8×0.2ml
Timer range: 1–99min / 1–99s
Speed increment: 1000rpm, accuracy ±20rpm
Noise level: <45dB
Power supply: 85–265V AC, 50/60Hz
Dimensions / Weight: 200×180×120mm / 1.3kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TB-12

  • TOP

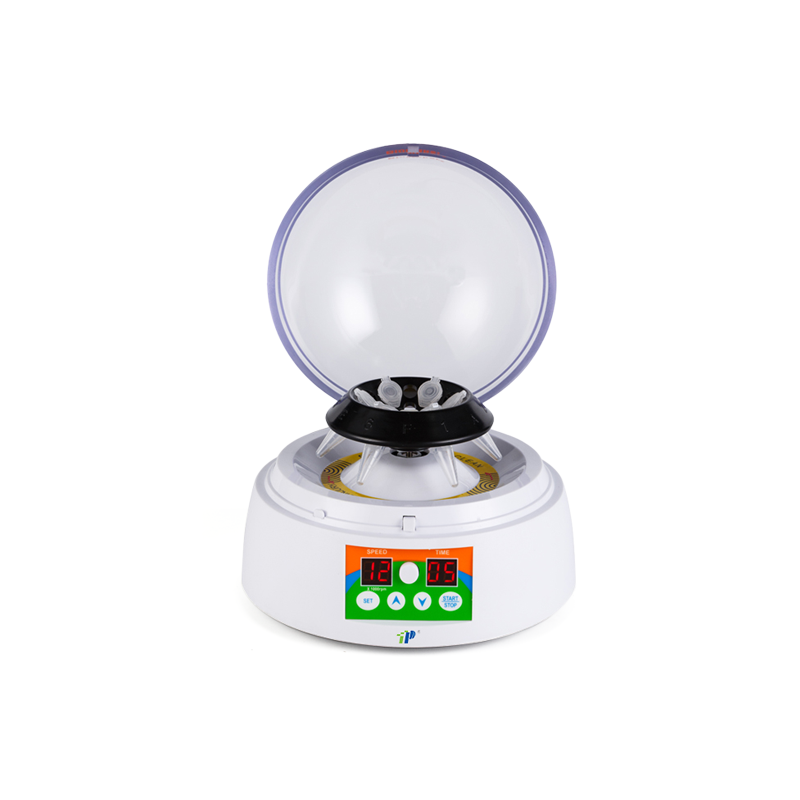

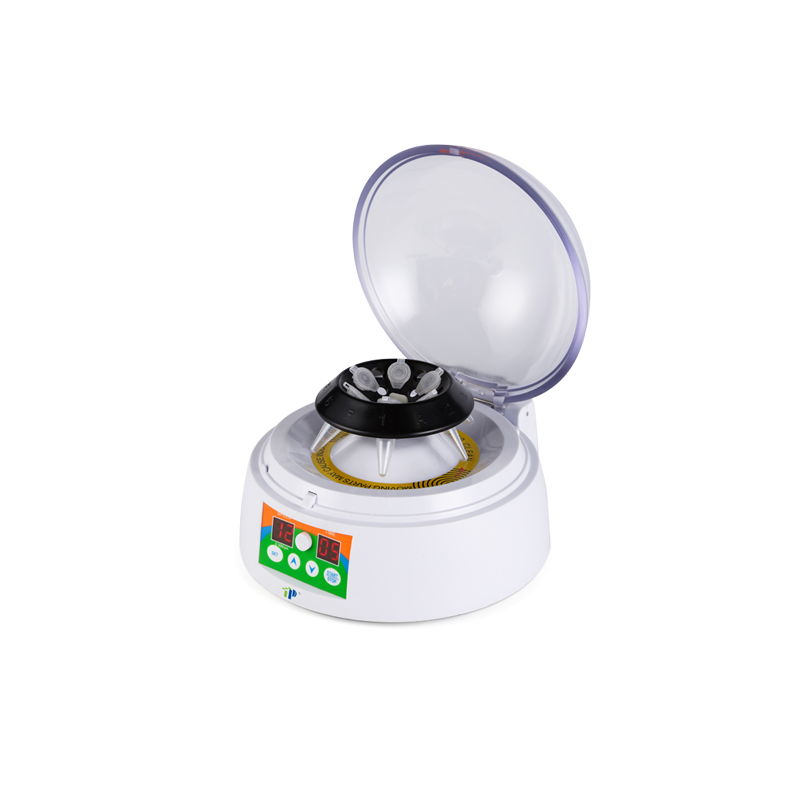

The TB-12 mini centrifuge has a novel and unique appearance and is flexible and versatile. It is equipped with two kinds of centrifugal rotors and a variety of test tube holders and is suitable for 2.0ml, 1.5ml, 0.5ml, 0.2ml centrifuge tubes, and 0.2ml, 8-row centrifuge tubes for PCR. Humanized design, with the function of a flip switch, automatically stops when the cover is opened (stops when the cover is opened), and has electronic timing and speed adjustable functions. A full transparent spherical upper cover and multiple rotors are equipped to achieve the best effect in the pursuit of creativity and simplicity and inject human color into scientific and rational laboratory products.


Application Introduction

1. Serum extracted from whole blood

2. Extract supernatant of various samples

3. Rapid sedimentation of sample

4. Micro blood cell separation

5. Microbial sample separation


Features:

1. The convenient and efficient three in one large radius 32 hole or 8-hole rotor is compatible with four types of centrifuge tubes: 2.0ml, 1.5ml, 0.5ml, and 0.2ml.

2. High frequency and wide voltage power supply technology is adopted, and the input voltage range is 85-265V AC.

3. Unique rotor snap design, convenient for rotor replacement.

4. Equipped with LED digital display, time and speed can be set, which is more scientific and rigorous.

5. Ultra low noise, stable operation, maintenance free motor, durable, safe and reliable.

6. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).


Technical data


Model

TB-12

Max. RPM/RCF for angle rotor

12000rpm / 7900×g

Max. Capacity for angle rotor

8×2ml, 4×8×0.2ml

Speed Increment

1000rpm

Speed Accuracy

±20rpm

Timer Range

1min~99min / 1s~99s

Power Supply

85-265V 50/60Hz

Power Requirement

30W

Noise

<45db

Screen

Digital Screen

Net Weight (without rotor)

1.3kg

Machine Dimension(L×W×H)

200×180×120mm


Rotor List


No.1 Angle Rotor

Max speed : 12000rpm

Capacity : 8 x 2ml/1.5ml/0.5ml/0.2ml

No.2 Angle Rotor

Max speed : 12000rpm

Capacity : 4 x 8 x 0.2ml
