High Speed Laboratory Centrifuge TD6 Series – 6000 rpm, Angle & Swing Rotors, 4×500 ml Max Capacity
You are here: home » Products » Centrifuges » High Speed Centrifuges » High Speed Laboratory Centrifuge TD6 Series – 6000 rpm, Angle & Swing Rotors, 4×500 ml Max Capacity

Product Category

loading

High Speed Laboratory Centrifuge TD6 Series – 6000 rpm, Angle & Swing Rotors, 4×500 ml Max Capacity

Max Speed & RCF: 6000 rpm / 5076×g (angle rotor), 4000 rpm / 3617×g (swing rotor)
Max Capacity: Angle rotor 12×15 ml / 24×10 ml; Swing rotor up to 4×500 ml or 96×5 ml
Speed Control: Increment 50 rpm; Accuracy ±20 rpm; 10 acceleration/deceleration rates
Control & Display: Microprocessor control, LCD/Digital display, 35 program memory (TD6B)
Safety Features: Electronic safety lock, imbalance & over-speed protection, emergency lid release
Power & Noise: 750 W, AC 220V 50–60Hz, <55 dB noise level
Dimensions & Weight: 490×610×400 mm, 54–55 kg (without rotor)

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

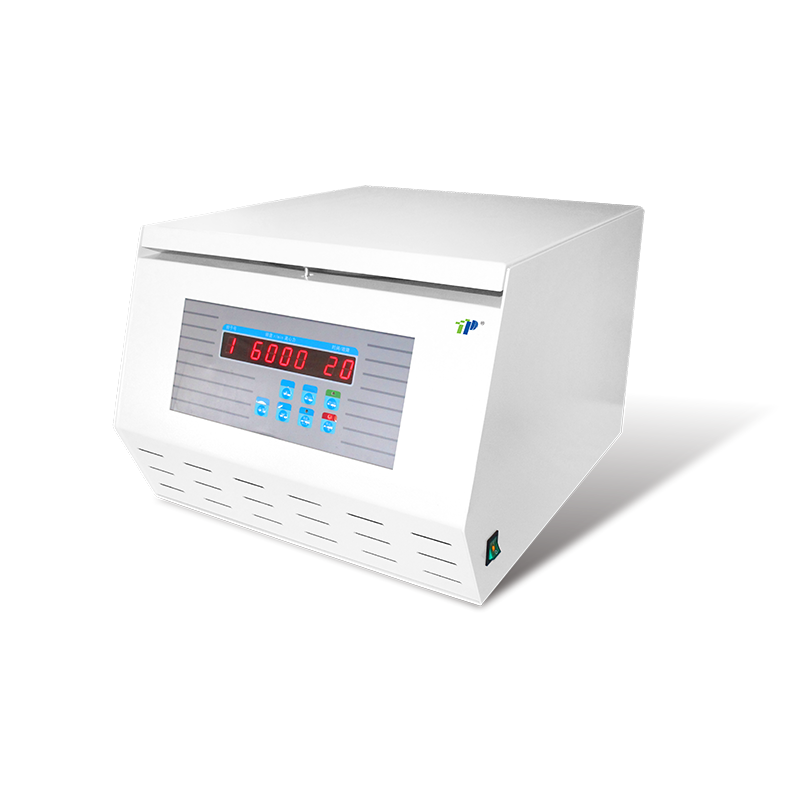

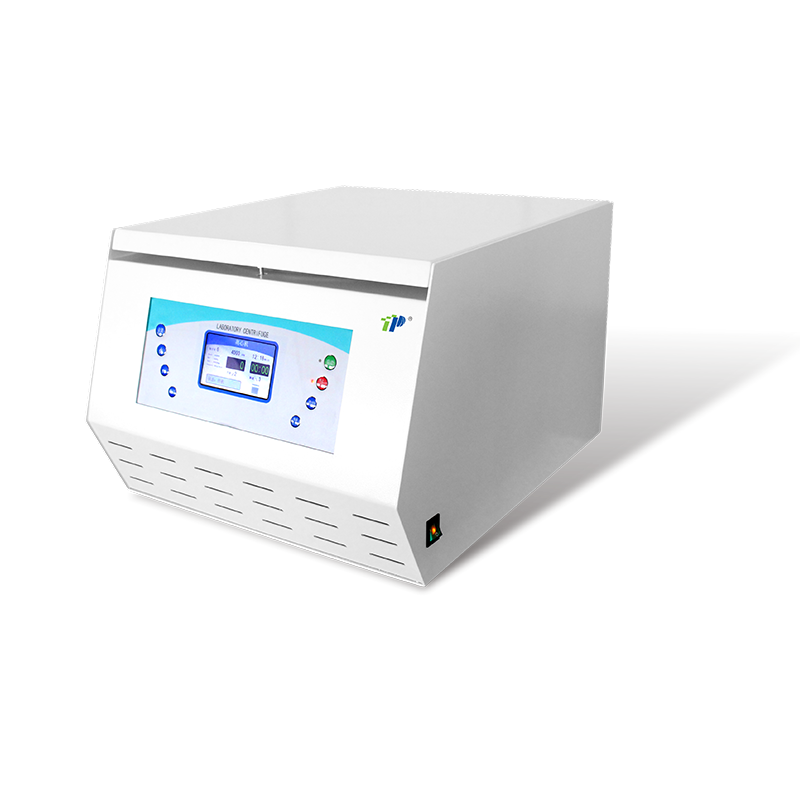

  • TD6 / TD6B

  • TOP

It is suitable for the liquid’s separation in biochemistry, laboratory, pharmaceuticals, bioproducts, and other fields.


Feature:

1. Power coated housing. Stainless steel chamber with guarding ring.

2. Reliable drive system. Variable frequency motor maintenance free.

3. Electronic safety lock prevent cover opening during centrifugation.

4. Manually lid open in case of failure or emergency.

5. Pneumatic spring supports prevent falling of lid.

6. Recall of last settings. Parameters can be changed during operation.

7. Microprocessor control of all functions: speed, time, *acceleration/deceleration, RCF, *program memory, error display.

8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.

9. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).

10. * Optional: Automatic lid opening at the end of run.

11. * Optional: Short spin function (TD6).

12. * Optional: Rotor identification.


Technical data:


Model

TD6B

TD6

Max. RPM/RCF for angle rotor

6000rpm / 5076×g

Max. RPM/RCF for swing rotor

4000rpm / 3617×g

Max. Capacity for angle rotor

12×15ml, 24×10ml

Max. Capacity for swing rotor

4×500ml, 96×5ml

Speed increment

50rpm

Speed accuracy

±20rpm

Timer range

0min~99min59s

1min~99min

Acc / Dec rates

10/10

-

Program memory

35

-

Short spin function

-

Power supply

AC220V / 50~60Hz

Power requirement

750W

Noise

<55db

Display

LCD Screen

Digital display

Machine body

Metal frame

Net weight (without rotor)

55kg

54kg

Machine dimension(L×W×H)

490×610×400mm


Rotor List

Angle Rotor

AL1215-2

AL2410

Max.Capacity

12×15ml

24×10ml

Max. Speed

6000rpm

4000rpm

Max. RCF

5076×g

2358×g

Angle

55°

45°

ØxL(mm)

B10055

18×92mm

B30057

16×92mm

Adaptor

A20121

12×5ml

(vacuum tube)

A20124

24×2ml (vacuum tube)

A20122

12×2ml

(vacuum tube)




SS8100

Swing Rotor

Cat. No.

B10401

B10403

B10405

B10406

B10407

B10463

Max.Capacity

8×100ml

8×50ml

32×15ml

32×10ml

24×15ml

24×10ml

Max. Speed

4000rpm

4000rpm

4000rpm

4000rpm

4000rpm

4000rpm

Max. RCF

2965×g

3151×g

3130×g

3058×g

2995×g

2924×g

ØxL(mm)

42.5×100mm

30.5×92mm

18×92mm

18×88mm

18×92mm

18×88mm

Adaptor


A20114

8×1×15ml

A20121

4×8×5ml

(vacuum tube)

A20121

4×6×5ml

(vacuum tube)


A20115

8×1×10ml

A20122

4×8×2ml

(vacuum tube)

A20122

4×6×2ml

(vacuum tube)


A20116

8×1×5ml

A10123

4×8×1.5/2ml

A10123

4×6×1.5/2ml


A20117

8×1×1.5/2ml






SS8100

Swing Rotor

Cat. No.

B10408

B10464

Max.Capacity

16×15ml

16×10ml

Max. Speed

4000rpm

4000rpm

Max. RCF

3130×g

3058×g

ØxL(mm)

18×92mm

18×88mm

Adaptor

A20121

4×4×5ml

(vacuum tube)

A20122

4×4×2ml

(vacuum tube)

A10123

4×4×1.5/2ml


SG7501

Swing Rotor

Cat. No.

B20420

B20418

B20419

Max.Capacity

4×500ml

4×4×50ml

48×15ml

Max. Speed

4000rpm

3500rpm

4000rpm

Max. RCF

3572×g

2700×g

3617×g

ØxL(mm)

81×105mm

-

17×104mm

Adaptor

A10108

4×1×250ml

A20406

4×4×50ml


A10109

4×1×100ml

A21207

4×12×15ml


A10410

4×4×50ml




A10811

4×8×15ml




A10812

4×8×10ml




A21413

4×14×5/2ml

(vacuum tube)





SG7501

Swing Rotor

Cat. No.

B20414

B20415

B20412

B20413

Max.Capacity

96×5ml

96×2ml

80×5ml

80×2ml

Max. Speed

4000rpm

4000rpm

4000rpm

4000rpm

Max. RCF

3617×g

3259×g

3617×g

3259×g

ØxL(mm)

13.5×86mm

13.5×58mm

13.5×86mm

13.5×58mm


Swing Rotor

SG148X

SG4250-1

SG4250-2

SA4496

SG2296

Cat. No.

B20425

B20427

B20428

B10436

B10235

Max.Capacity

4×500ml conical

4×250ml

4×250ml Conical

4×4×96

2×2×96

Max. Speed

4000rpm

4000rpm

4000rpm

4000rpm

4000rpm

Max. RCF

3599×g

2990×g

3624×g

2659×g

2390×g

ØxL(mm)

-

63.5×90mm

-

128×86×55mm

137×87×42mm

Adaptor


A10133

4×1×50ml





A10434

4×4×15/10ml





A10735

4×7×5/2ml

(vacuum tube)
