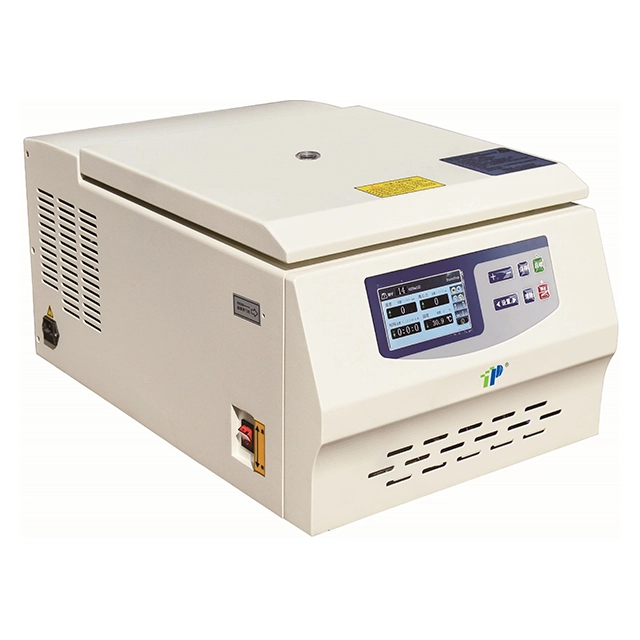

TGL-R Series Refrigerated High Speed Microcentrifuge with LCD Display and Multiple Rotor Options
You are here: home » Products » Centrifuges » High Speed Centrifuges » TGL-R Series Refrigerated High Speed Microcentrifuge with LCD Display and Multiple Rotor Options

Product Category

loading

TGL-R Series Refrigerated High Speed Microcentrifuge with LCD Display and Multiple Rotor Options

Max Speed: up to 21,000 rpm
Max RCF: up to 29,583 ×g
Temperature Range: -20℃ to +40℃, accuracy ±1℃
Capacity Options: up to 100ml × 4 tubes
Rotor Compatibility: Multiple rotors for 1.5ml to 100ml tubes
Safety Features: Overspeed & imbalance protection, dual electronic door lock
Display & Control: LCD screen, microcomputer control, RCF/RPM sync display

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TGL-1600R / TGL-1650R / TGL-1850R / TGL-2000R / TGL-2100R

  • TOP

Application:

TGL-R series Desktop high-speed micro-centrifuge, meets the small-volume centrifugation requirements of clinical medicine, research institutions, and higher education laboratories.


Feature

1. Metal casing, moderate size, good compatibility, suitable for small and medium-sized multi-function experimental requirements.

2. It has multiple protections such as over-speed and imbalance, enhancing safety.

3.Screen LCD display, maintenance-free variable frequency motor drive, microcomputer control.

4. Imported refrigeration units, dual-cycle refrigeration, strong cold and heat exchange capacity, precise temperature control, fluorine-free refrigerant meets environmental protection requirements.

5. 316 Stainless protection against cracking in the inner cavity, three-layer protective steel sleeve, corrosion-resistant, and a solid structure that prevents cracking.

6. Double rod support, equipped with multiple capacity rotors, suitable for different experimental needs, with airtight performance and unlimited high-temperature sterilization function..

7. Automatic calculation and setting of centrifugal force RCF value, the centrifugal force of the rotational speed can be switched and displayed synchronously.

8. Design of a double electronic door lock, when the instrument is started, the electronic lock automatically locks the door cover, safe and reliable, easy and convenient; equipped with an emergency door lock opening device in case of power failure, to quickly retrieve samples for proper storage.


Technical parameters:

ModelTGL-1600RTGL-1650RTGL-1850RTGL-2000RTGL-2100R
Maximum speed16000 r/min16,500 r/min18,500 r/min20,000 r/min21,000 r/min
Maximum RCF17173×g18,700×g21,009×g25,976×g29,583×g
Speed accuracy±10r/min
Time range1 min to 99 min
Temperature control range-20℃~plus sign 40℃
Temperature control accuracy±1℃
Maximum preparation capacity1.5ml×2450ml×6100ml×4100ml×4100ml×4
Overall noise≦65dB(A)60 dB(A)≦65 dB(A)
Power sourceAC220V 50HZ 30A
Total power800W
External dimensions (L×W×H)650×430×340(mm)650×430×340 (mm)430×650×340 (mm)430×650×340 (mm)650×430×340 (mm)
Outer packaging dimensions (L × W × H)700×490×370(mm)700×490×370 (mm)490×700×370 (mm)490×700×370 (mm)700×490×370 (mm)
Weight70kg
