TGL-10B /TGL-20B /TDL-40 /TDL-40B /TDL-42B /TDL-50B/TGL-1650/ TGL-1850
TOP
Application:

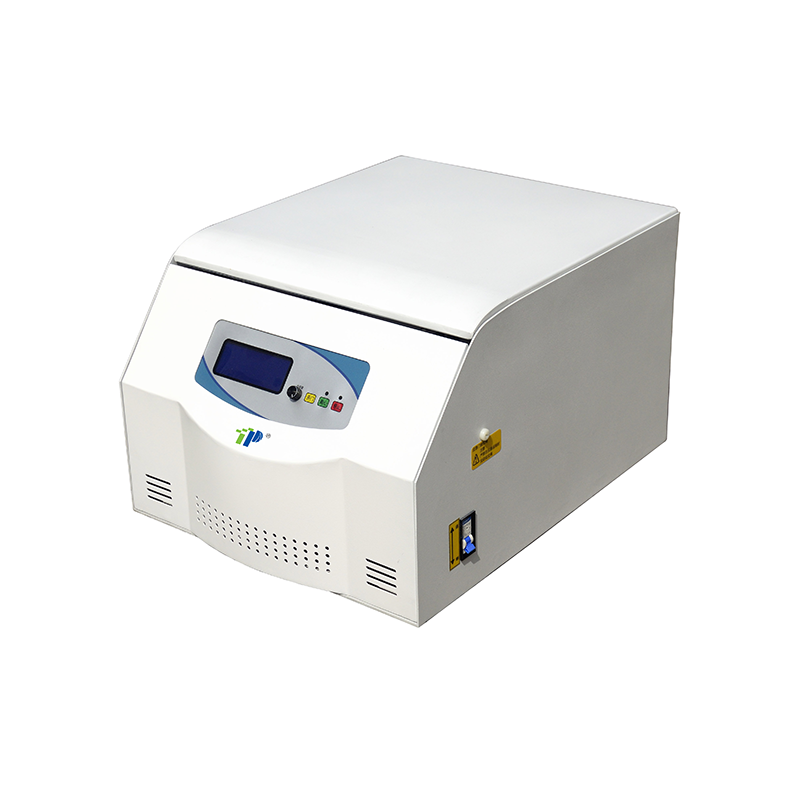

Desktop high-speed refrigerated centrifuge is widely used in biochemistry, medical science, agricultural science, and other fields, showing significant effectiveness in experimental research involving genetic genes, proteins, and nucleic acids.
Feature:
- Compact design saves laboratory space, with nano-material sound insulation technology for low noise.
- Equipped with various protections such as over-speed and imbalance to enhance safety.
- Maintenance-free variable frequency motor drive, controlled by microcomputer.
- 316 stainless steel protective cavity, corrosion-resistant and crack-resistant, with a sturdy construction for a long service life.
- Unique air duct structure design for low sample temperature rise.
- LCD screen display, single-knob rotation control, button for option activation, rotation for parameter changes, and three other buttons for start, stop, and opening the lid.
- 10-speed ramping (0 for free stop), 10 program storage.
- Automatic calculation and setting of centrifugal force RCF value, with the ability to switch between rotation speed and centrifugal force, displaying both simultaneously.
- Unique electronic door lock design, which automatically locks the lid when the instrument starts, ensuring safety, ease, and convenience.
Application:
Desktop high-speed refrigerated centrifuge is widely used in biochemistry, medical science, agricultural science, and other fields, showing significant effectiveness in experimental research involving genetic genes, proteins, and nucleic acids.
Feature:
- Compact design saves laboratory space, with nano-material sound insulation technology for low noise.
- Equipped with various protections such as over-speed and imbalance to enhance safety.
- Maintenance-free variable frequency motor drive, controlled by microcomputer.
- 316 stainless steel protective cavity, corrosion-resistant and crack-resistant, with a sturdy construction for a long service life.
- Unique air duct structure design for low sample temperature rise.
- LCD screen display, single-knob rotation control, button for option activation, rotation for parameter changes, and three other buttons for start, stop, and opening the lid.
- 10-speed ramping (0 for free stop), 10 program storage.
- Automatic calculation and setting of centrifugal force RCF value, with the ability to switch between rotation speed and centrifugal force, displaying both simultaneously.
- Unique electronic door lock design, which automatically locks the lid when the instrument starts, ensuring safety, ease, and convenience.
Technical Parameters:
Model | TGL-10B | TGL-20B | TDL-40 | TDL-40B | TDL-42B | TDL-50B | TGL-1650 | TGL-1850 |
Maximum speed | 10000r/min | 20,000 r/min | 4000r/min | 4000r/min | 4200r/min | 5000r/min | 16500r/min | 18,500 r/min |
Maximum RCF | 8944×g | 26,832×g | 3400×g | 2770×g | 2770×g | 3913×g | 18263×g | 22,959×g |
Speed accuracy | ±10r/min | |||||||
Time range | 1 min to 99 min | |||||||
Maximum preparation capacity | 100ml×4 | 50ml×6 | 5/7ml x 96 pieces | 100ml×4 | 50ml×6 | 100ml×4 | 50ml×6 | 100ml×4 |
Overall noise | ≦65dB(A) | |||||||
Power source | AC220V 50HZ 30A | |||||||
Total power | 500W | 500W | 750W | 300W | 300W | 400W | 500W | |
External dimensions (L×W×H) | 450×420×370(mm) | 450×420×380 (mm) | 570×540×440(mm) | 510×420×310(mm) | 480×420×320(mm) | 480×420×320(mm) | 450×420×380(mm) | |
Outer packaging dimensions (L × W × H) | 590×550×510 (mm) | 590×550×510 (mm) | 705 × 660 × 605 (mm) | 600×535×510(mm) | 590×550×510(mm) | |||
Weight | 42kg | 42kg | 70kg | 50kg | 32kg | 32kg | 42kg |
