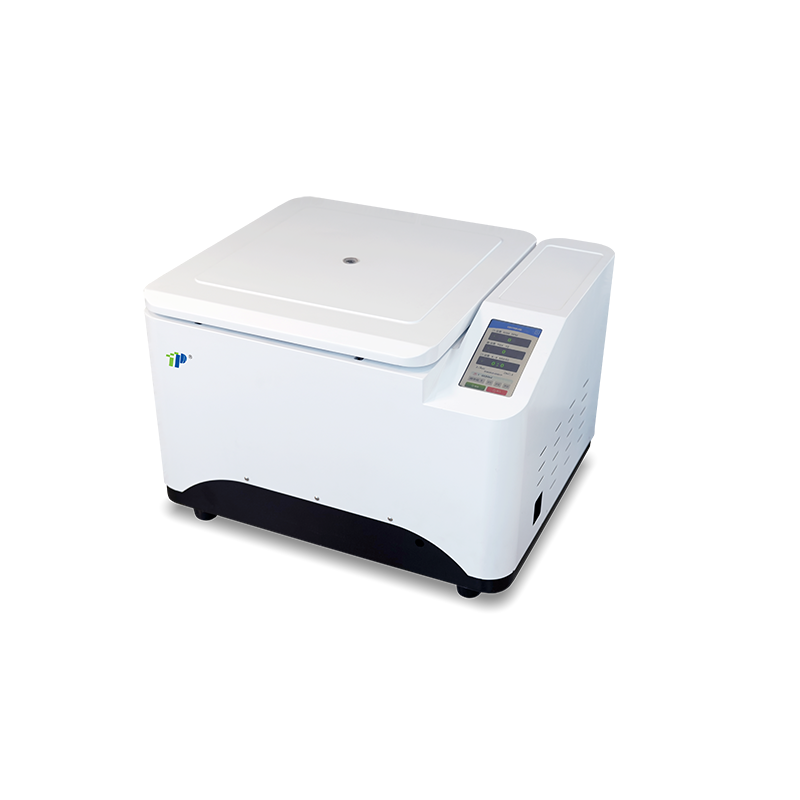

High Speed Refrigerated Centrifuge 21000 RPM with Touchscreen for Clinical & Biotech Applications

Max Speed: 21,000 rpm (Angle Rotor), 5,000 rpm (Swing Rotor)
Max RCF: 32,898 × g (Angle Rotor), 4,633 × g (Swing Rotor)
Max Capacity: 6×250 ml (Angle Rotor), 4×1000 ml (Swing Rotor)
Temperature Range: -20℃ to +40℃, Accuracy ±1℃
Timer Range: 0 to 99 hours 59 minutes 59 seconds, continuous
Program Memory: Up to 1000 programmable settings
Display: LCD touch screen with rotor identification and self-diagnostic system

Quantity:
Availability:





Inquire Add to Basket

Model:
TGL-21MB
Brand:
TOP

It is widely used in clinical medicine, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.

Feature:

1. Pre-cooling during standstill. CFC free refrigeration system.

2. Microprocessor controls all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.

3. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.

4. Rotor identification prevents rotor from over speed.

5. Gyroscope imbalance detection.

6. Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).

7. Optional: Automatic lid opening at the end of run.

Technical data:

Model	TGL-21MB
Max. RPM/RCF for angle rotor	21000rpm / 32898×g
Max. RPM/RCF for swing rotor	5000rpm / 4633×g
Max. Capacity for angle rotor	6×250ml, 48×1.5/2.2ml
Max. Capacity for swing rotor	4×1000ml, 96×5ml
Speed accuracy	±10rpm
Temp. range	-20℃~+40℃
Temp accuracy	±1℃
Timer range	0~99h59min59s / continuous
Acc / Dec rates	10/10
Program memory	40/*1000
Short spin function	√
Power supply	AC220V / 50~60Hz
Power requirement	1.75KW
Noise	<65db
Display	LCD touch screen
Machine body	Metal frame
Net weight (without rotor)	110kg
Machine dimension（L×W×H）	695×571×474mm

Rotor List

Angle Rotor	AAR4802	AAR1205	AAR4805
Max.Capacity	4×8×0.2ml	12×0.5ml	48×0.5ml
Max. Speed	14000rpm	21000rpm	14000rpm
Max. RCF	15418×g	22453×g	16164×g
Angle	45°	45°	45°
ØxL(mm)	6.5×16mm	8.5×28.5mm	8.5×28.5mm

Angle Rotor	AAR1215		AAR1215-2		AAR2415-1		AAR2415-3
Max.Capacity	12×1.5/2.2ml		12×1.5/2.2ml		24×1.5/2.2ml		24×1.5/2.2ml
Max. Speed	21000rpm		21000rpm		18500rpm		18500rpm
Max. RCF	30053×g		29165×g		32898×g		32898×g
Angle	45°		45°		45°		45°
ØxL(mm)	11×39mm		11×39mm		11×39mm		11×39mm
Adaptor	A20136	12×1×0.5ml	A20136	12×1×0.5ml	A20136	24×1×0.5ml	A20136	24×1×0.5ml
	A20137	12×1×0.2ml	A20137	12×1×0.2ml	A20137	24×1×0.2ml	A20137	24×1×0.2ml

Angle Rotor	AAR4815		AA12X5	AA1210	AA2410
Max.Capacity	48×1.5/2.2ml		12×5ml	12×10ml	24×10ml
Max. Speed	14000rpm		16000rpm	15000rpm	10000rpm
Max. RCF	20792×g		19336×g	19840×g	11291×g
Angle	45°		50°	62°	62°
ØxL(mm)	11×39mm		14×51mm	16.5×78mm	16.5×78mm
Adaptor	A20136	48×1×0.5ml	-	-	-
Adaptor	A20137	48×1×0.2ml	-	-	-

Angle Rotor	AA1215		AA4X50		AA6X50-1		AA8X50-1
Max.Capacity	12×15ml		4×50ml		6×50ml		8×50ml
Max. Speed	14000rpm		14500rpm		14000rpm		13500rpm
Max. RCF	22634×g		20727×g		21538×g		22637×g
Angle	62°		61°		61°		61°
ØxL(mm)	16.5×103mm		29.5×96mm		29.5×96mm		29.5×96mm
Adaptor	A10138	12×1×10ml	A20114	4×1×15ml	A20114	6×1×15ml	A20114	8×1×15ml
	-		A20115	4×1×10ml	A20115	6×1×10ml	A20115	8×1×10ml
	-		A20116	4×1×5ml	A20116	6×1×5ml	A20116	8×1×5ml
	-		A20117	4×1×1.5/2ml	A20117	6×1×1.5/2ml	A20117	8×1×1.5/2ml

Angle Rotor	AA4100	AA6100	AA8100	AA6250
Max.Capacity	4×100ml	6×100ml	8×100ml	6×250ml
Max. Speed	12000rpm	11000rpm	10000rpm	10500rpm
Max. RCF	15759×g	17331×g	14402×g	18518×g
Angle	62°	45°	57°	60°
ØxL(mm)	38×110mm	38×112mm	38×112mm	62.5×116mm
