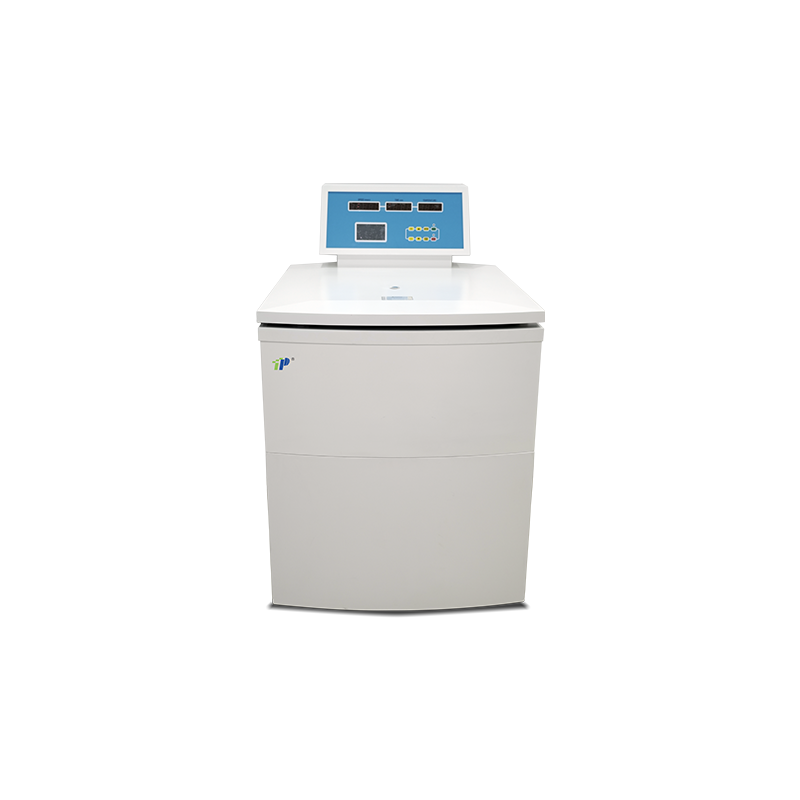

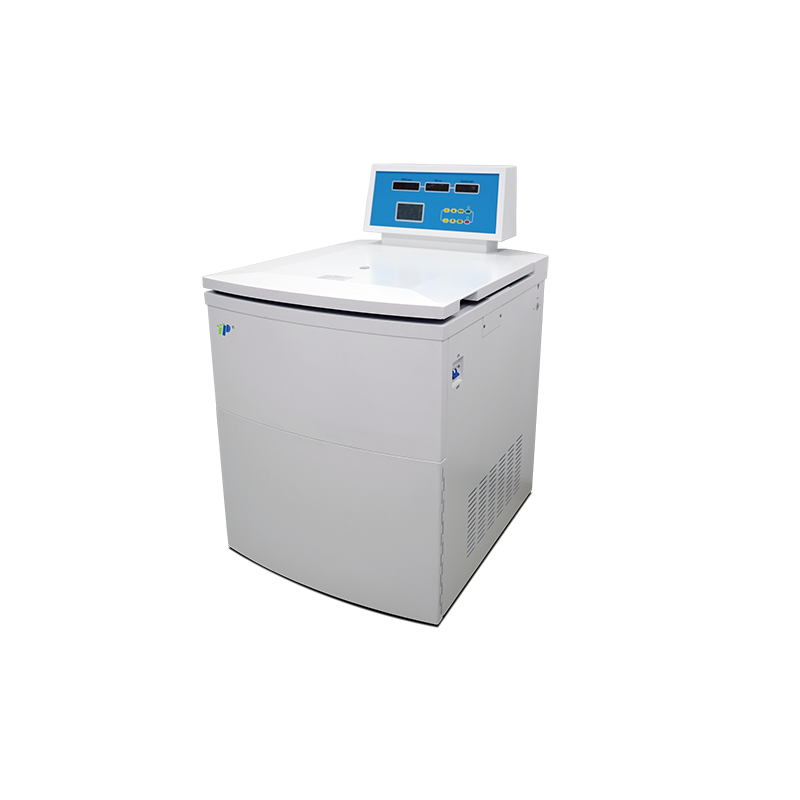

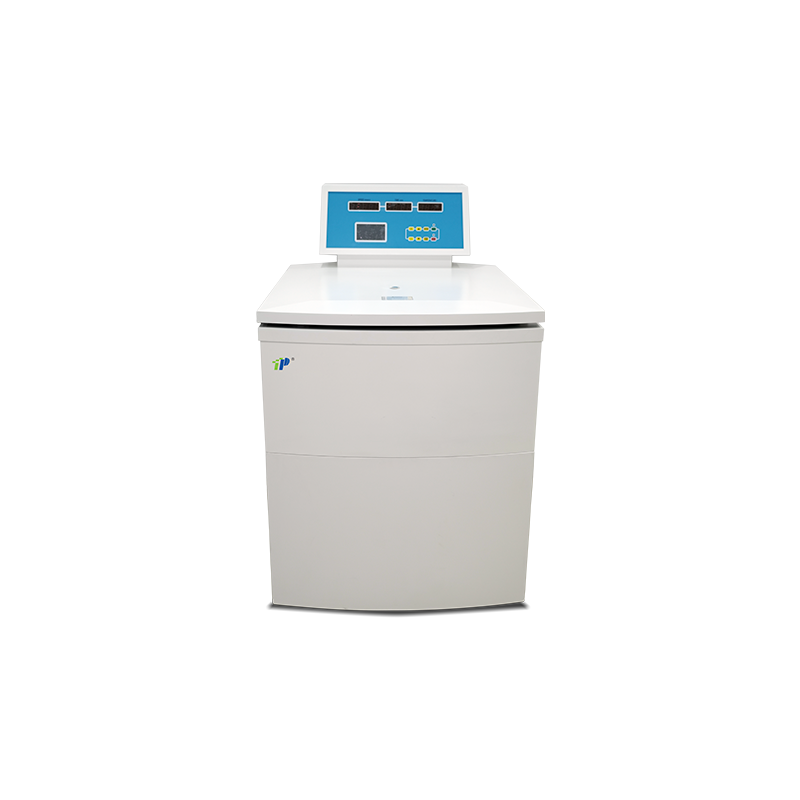

High-Speed Refrigerated Centrifuge TL-21M with 21000 RPM, 53098×g RCF, Large Capacity for Clinical & Laboratory Use

Max Speed: 21,000 rpm (angle rotor), 13,000 rpm (swing rotor), 16,000 rpm (continuous rotor)
Max RCF: 53,098 ×g (angle rotor), 23,800 ×g (swing rotor), 27,902 ×g (continuous rotor)
Max Capacity: 6×500 ml (angle rotor), 4×1000 ml (swing rotor), 3000 ml (continuous rotor)
Temperature Range: -20℃ to +40℃ with precise control (±2℃)
Programmable memory: 99 programs, microprocessor control of speed, time, temperature, acceleration/deceleration
Safety: Motorized lid lock, imbalance protection, electronic lock, emergency manual lid open
Dimensions & Weight: 730×830×1200 mm, 280 kg net weight

Quantity:
Availability:





Inquire Add to Basket

Model:
TL-21M
Brand:
TOP

It is widely used in various fields such as agriculture, medicine, food hygiene, biopharmaceuticals, biotechnology, cell biology, and biochemistry; Suitable for the separation and purification of microbial cells, cellular proteins, enzymes, and immunoprecipitates.

Feature:

1. Power coated housing. Universal castors.

2. Reliable drive system. Converter motor maintenance free.

3. Motorized lid locks prevent cover opening during centrifugation.

4. Pneumatic spring supports prevent falling of lid.

5. Manually lid open in case of failure or emergency.

6. Pre-cooling during standstill. CFC free refrigeration system.

7. Microprocessor controls all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.

8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.

9. Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).

10. Optional: Automatic lid opening at the end of run.

11. Optional: Short spin.

12. Optional: Rotor identification.

Technical data:

Model	TL-21M
Max. RPM/RCF for angle rotor	21000rpm / 53098×g
Max. RPM/RCF for swing rotor	13000rpm / 23800×g
Max. RPM/RCF for continuous rotor	16000rpm / 27902×g
Max. Capacity for angle rotor	6×500ml, 16×10ml
Max. Capacity for swing rotor	4×1000ml, 4×4×5ml
Max. Capacity for continuous rotor	3000ml
Speed increment	10rpm
Speed accuracy	±20 rpm
Temp. range	-20℃~+40℃
Temp accuracy	±2℃
Timer range	0~99min50s / 23h59min
Acc / Dec rates	12/12
Program memory	99
Power supply	AC220V 50/60Hz
Power requirement	6KW
Noise	<58db
Display	LCD screen
Motor	Converter Motor, direct drive
Net weight (without rotor)	280kg
Machine Dimension（L×W×H）	730×830×1200mm

Rotor List

Angle Rotor	AAH41Q	AAH500	AF6500	AA6300	AA6250	AA4250	AA8100-1	AA1610
Max.Capacity	4×1000ml	6×500ml	6×500ml fibre	6×300ml	6×250ml	4×250ml	8×100ml	16×10ml
Max. Speed	9000rpm	10000rpm	10000rpm	12000rpm	12000rpm	14000rpm	12000rpm	21000rpm
Max. RCF	16406×g	18519×g	18519×g	24493×g	24187×g	30793×g	20738×g	45055×g
Angle	67°	66°	66°	60°	60°	60°	57°	62°
ØxL(mm)	99×150mm	70.5×145mm	70.5×145mm	63.5×136mm	62.5×116mm	63×116mm	38×112mm	16.5×78mm

Angle Rotor	AF8X50	AA8X50-2		AA6X50-2
Max.Capacity	8×50ml fibre	8×50ml		6×50ml
Max. Speed	21000rpm	18000rpm		20000rpm
Max. RCF	53098×g	39011×g		43507×g
Angle	57°	57°		62°
ØxL(mm)	29.5×96mm	29.5×96mm		29.5×96mm
Adaptor		A20114	8×1×15ml	A20114	6×1×15ml
		A20115	8×1×10ml	A20115	6×1×10ml
		A20116	8×1×5ml	A20116	6×1×5ml
		A20117	8×1×1.5/2ml	A20117	6×1×1.5/2ml

Continuous Rotor	CA3000	CT3000	CA1000	CT1000
Max.Capacity	3000ml	3000ml	1000ml	1000ml
Max. Speed	8000rpm	10000rpm	14000rpm	16000rpm
Max. RCF	9468×g	14793×g	21362×g	27902×g

Swing Rotor	SG7501		SA1965		SAH445	SAH450
Cat. No.	B20420		B20460		B20451	B20452	B20453
Max.Capacity	4×500ml		4×1000ml		4×4×5ml	4×50ml	4×30ml
Max. Speed	4000rpm		4000rpm		12000rpm	10000rpm	13000rpm
Max. RCF	3572×g		3604×g		13294×g	15554×g	23800×g
ØxL(mm)	81×105mm		-		14×49.5mm	29×98mm	29.5×94mm
Adaptor	A10108	4×1×250ml	A14843	48×50ml
	A10109	4×1×100ml	A19642	96×15ml
	A10410	4×4×50ml	A18040	180×8ml (16×100mm)
	A10811	4×8×15ml	A19639	196×5/2ml (vacuum tube)
	A10812	4×8×10ml
	A21413	4×14×5/2ml (vacuum tube)

Swing Rotor	SA4496	SG2296
Cat. No.	B10436	B10235
Max.Capacity	4×4×96	2×2×96
Max. Speed	4000rpm	4000rpm
Max. RCF	2659×g	2390×g
ØxL(mm)	128×86×55mm	137×87×42mm
